Omron CQM1 User Manual

199
Programming Console Operation Section 5-2
5-2 Programming Console Operation
Refer to the CQM1H Operation Manual (W363) or the CQM1 Operation Man-
ual (W226) for the detailed operating method of the Programming Console.
The operation of the Programming Console required for the initial settings is
explained below.

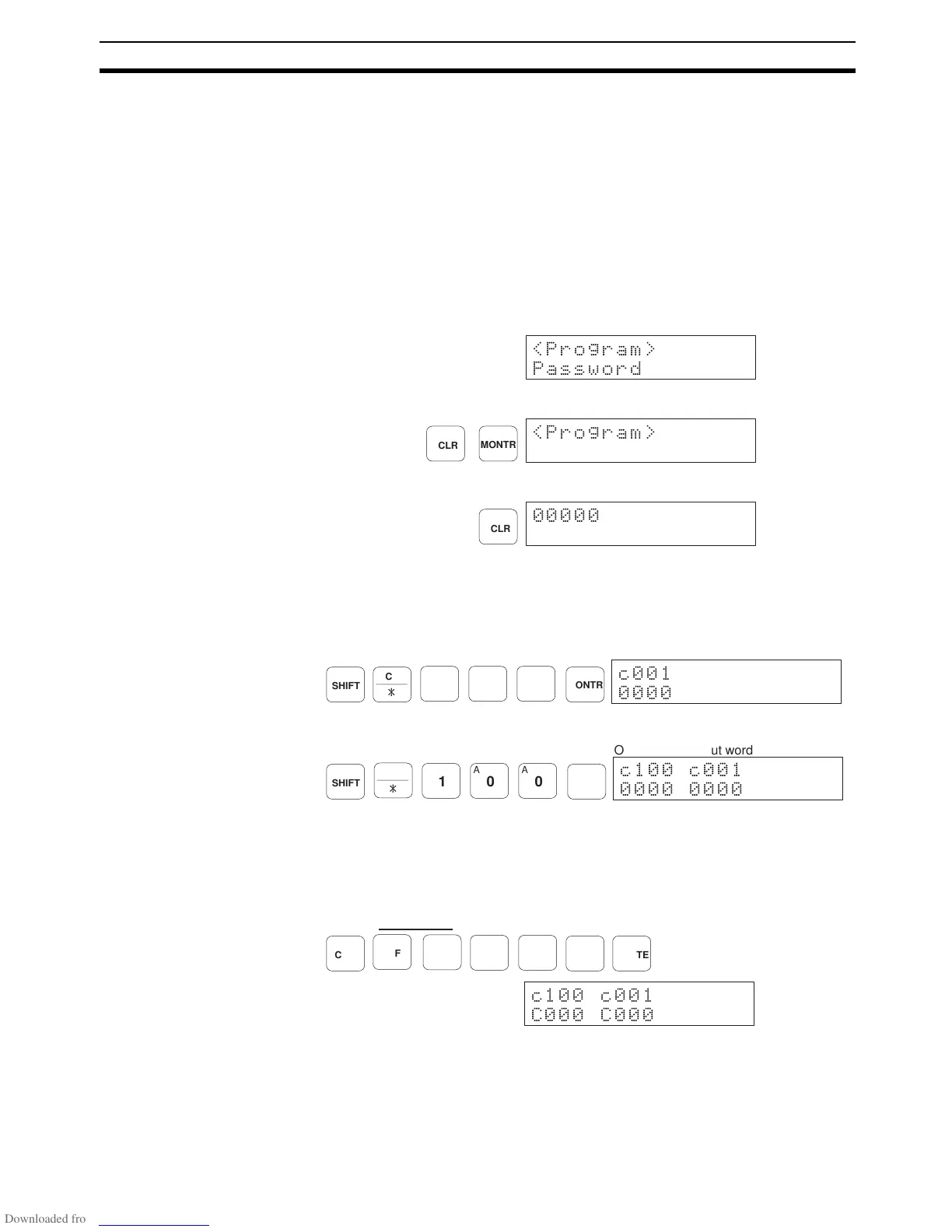

Initial Screen Operate the Programming Console as described below so that the default
screen of the Programming Console in program mode will appear.
1,2,3... 1. Connect the Programming Console to the CQM1H/CQM1 CPU, set the
mode selector of the Programming Console to PROGRAM MODE, and
supply power to the Programming Console.
2. Input the password.
3. The default screen will appear.
I/O Words The contents of the I/O words will appear on the screen of the Programming
Console. When measured mode is selected for data input, the present binary-
coded scaled conversion data will appear under the input word display.
1,2,3... 1. The input word (word 001 in this example) will be displayed.
2. The output word (word 100 in this example) will be displayed.
Command The command codes can be set to output word. In this example, descriptions
are given for the operation mode A.
1,2,3... 1. The command code is set to the output word. The response for the com-
mand will appear under the input word display.
<Program>
Password
CLR
MONTR
<Program>
CLR

SHIFT
*
CH
A
0
A
0
B
1
MONTR
?

SHIFT
*
CH
B
1
A
0
A
0
MONTR
? ?
 
Output word Input word
CHG
SHIFT
C
2
C
A
0
A
0
A
0
WRITE
? ?
+ +

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
