Teaching Section 2-4
2-4 Teaching
The teaching function is can be set only when the timing hold in operation
mode A is set to normal.
The Programming Console makes it possible to adjust the scaling and set val-
ues preset on the Unit using objects.
Scaling Value Teach When the scaling value teach command is executed, the actual input value
can be set as the X1 or X2.
This allows an easy adjustment of the input error.
For example, when setting the X1 value as an input value of the smallest
object, execute a scaling command while the smallest object is being sam-
pled. In the same manner, the X2 value can be set as the largest object input
value if the scaling command is executed while the largest object is being
sampled.
Set Value Teaching By using the set value teach command, an actual input value can be set as
the HH, H, L, or LL set value. It is useful for making judgments on whether
products are acceptable or defective.
For example, when setting the lowest set value LL, execute the set value
teach command while the smallest object is being measured. If the same
command is executed while the largest object is being measured, the highest
set value HH can be set.

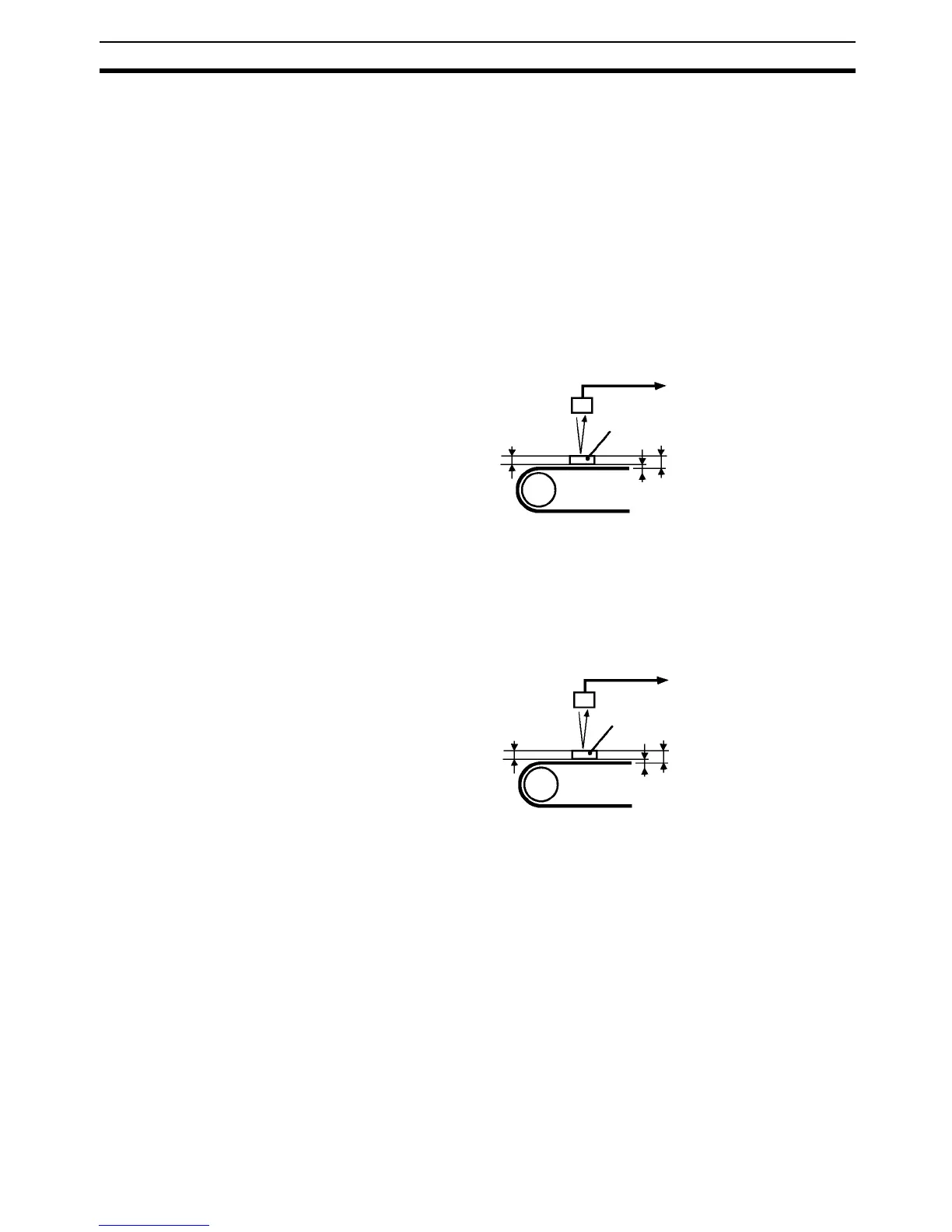

Actual size
Sensor input
Smallest object
Adjustment value
X1 value
Smallest object
Sensor input
Adjustment value
Actual size
LL set value
