149
Connection of CQM1-TU001 Remote Console Section 3-3
3-3 Connection of CQM1-TU001 Remote Console
• Remove the cover of the Unit and insert the console plug into the console
connector of the Unit so that the polarity of the console plug and the con-
sole connector will match.
• The console connector does not incorporate a lock mechanism. To dis-
connect the console plug, hold the console plug and pull it straight out.
• It is not possible to mount the cover to the Unit if the console plug is con-
nected to the console connector.
• The console plug can be disconnected from the console connector even if
the Unit is turned on. Do not, however, disconnect the console plug while
the sensitivity of the Unit is being adjusted.
3-4 Connection of a Variety of Sensors
3-4-1 E3X-MA11 Optical Fiber Photoelectric Module

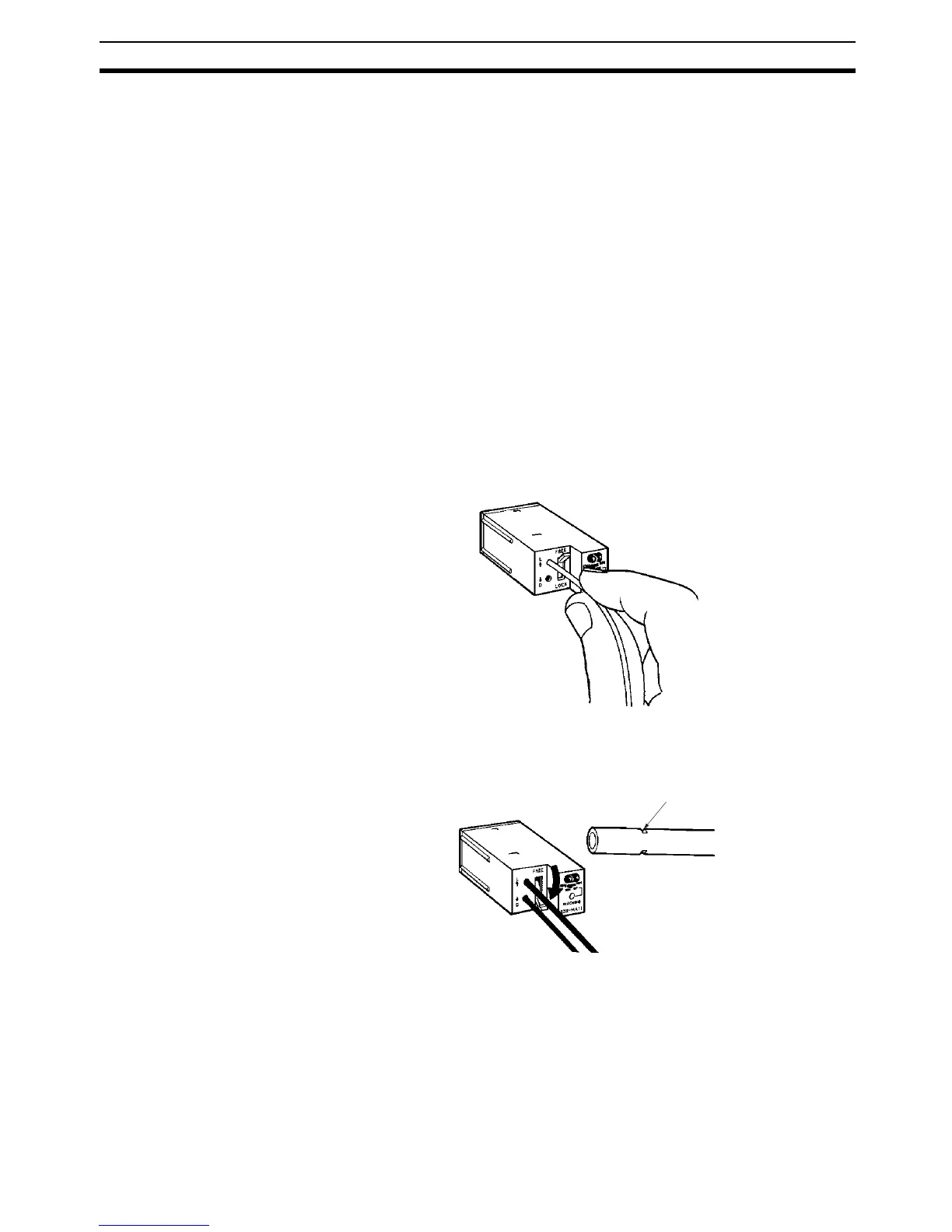

Connecting Fibers Set the fiber lock lever of the E3X-MA11 to FREE before inserting an optical
fiber cable to a fiber insertion mouth of the E3X-MA11 as shown in the follow-
ing illustration.
After inserting two optical fiber cables from the Fiber Units to the fiber inser-
tion mouths of the E3X-MA11, set the fiber lock lever to LOCK to secure the
optical fiber cables.
Insert the optical fiber cables into the E3X-MA11 before mounting the E3X-
MA11 to the Sensor Unit.
Note If the tips of the two optical fiber cables are not inserted into the E3X-MA11 to
the insertion marks, the sensing distance may be reduced.
Disconnecting Fibers To disconnect the optical fiber cables from the E3X-MA11, hold and pull out
the optical fiber cables carefully. Before disconnecting the optical fiber cables
from the E3X-MA11, be sure to set the fiber lock lever to FREE.
Insertion mark
