Word Allocation Section 1-4

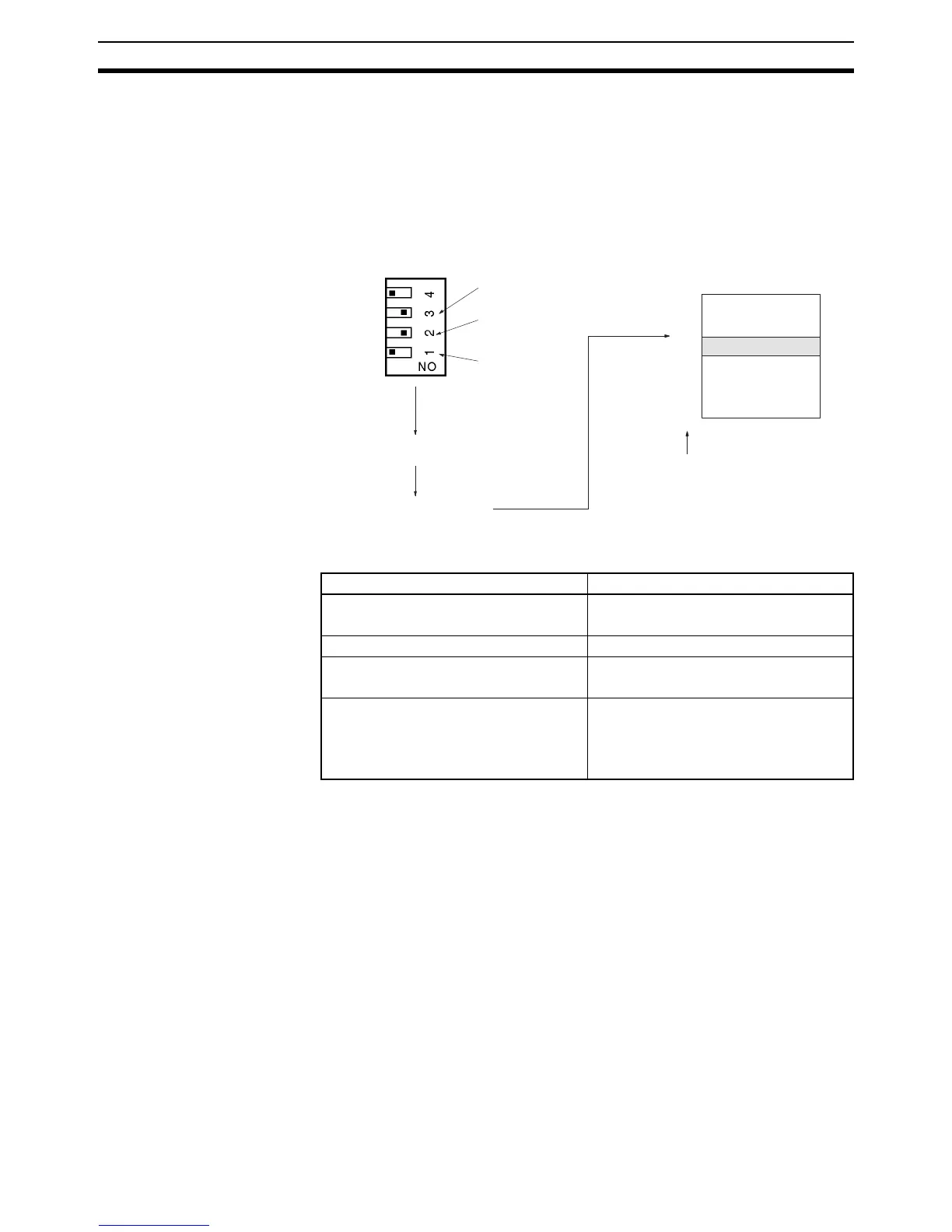

1-4-2 Master Word Allocation
The Master treats the CQM1-LK501 I/O Link Unit as a SYSMAC BUS Remote
I/O Slave Unit. Words are allocated to the SYSMAC BUS area and specified
by the Master in the same way as other SYSMAC BUS Remote I/O Slave
Units. All words to be used in the SYSMAC BUS area are set using the DIP
switch of the CQM1-LK501 I/O Link Unit as shown in the following figure.
The first word of the Master’s SYSMAC BUS area varies with the model as
seen in the following table.
Model SYSMAC BUS area first word
C200H/C200HS
C200HX/HG/HE
Word 200
C500 (F) Word 0
C1000H (F)
C2000H
Word 32x (Master base number)
CV2000
CV1000
CV500
CVM1
Word 2300 + 32x (Master base number)
→
CQM1-LK501 I/O Link
Unit's DIP switch
Example
First offset address 24
Master's SYSMAC BUS area
Offset address
2
4
2
3
2
2
Corresponds to each
binary digit
ON = 1, OFF = 0
2
2
x 0 + 2
3
x 1 + 2
4
x 1 = 24
24
0
31

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
