Omron SYSDRIVE 3G3MV SERIES User Manual

5-24
n075
Pulse Train Frequency Reference
Bias
Register 014B Hex Changes during
operation
Yes
Setting
range
–100 to 100 Unit of
setting
1% Default setting 0
Frequency
reference (Hz)

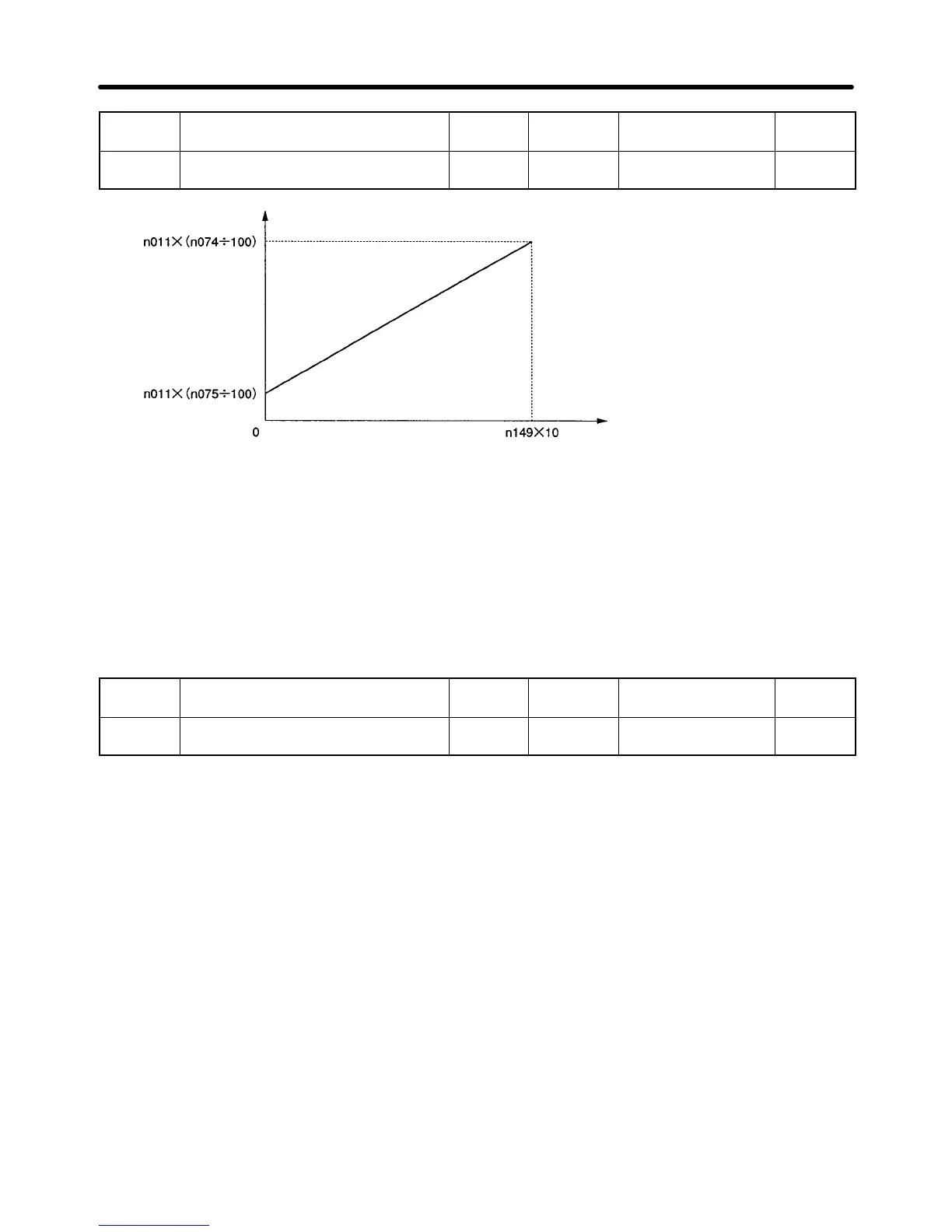

Pulse train input frequency (Hz)
n011: Maximum frequency
H Pulse Train Frequency Reference Input Filter Constant (n076)
• This parameter can be used to set a primary-delay digital filter for pulse train frequency reference in-
put.
• This parameter setting is effective for smooth operation of the Inverter if the pulse train input signal
changes too rapidly or the signal is interfered with by noise.
• The larger the set value is, the lower the response will be.
n076
Pulse Train Frequency Reference
Input Filter Constant
Register 014C Hex Changes during
operation
No
Setting
range
0.00 to 2.00 Unit of
setting
0.01 s Default setting 0.10
Basic Operation
Chapter 5

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
