Omron SYSDRIVE 3G3MV SERIES User Manual

6-15
6-3-5 Input Selection of PID Control Target Value and Detection
Value

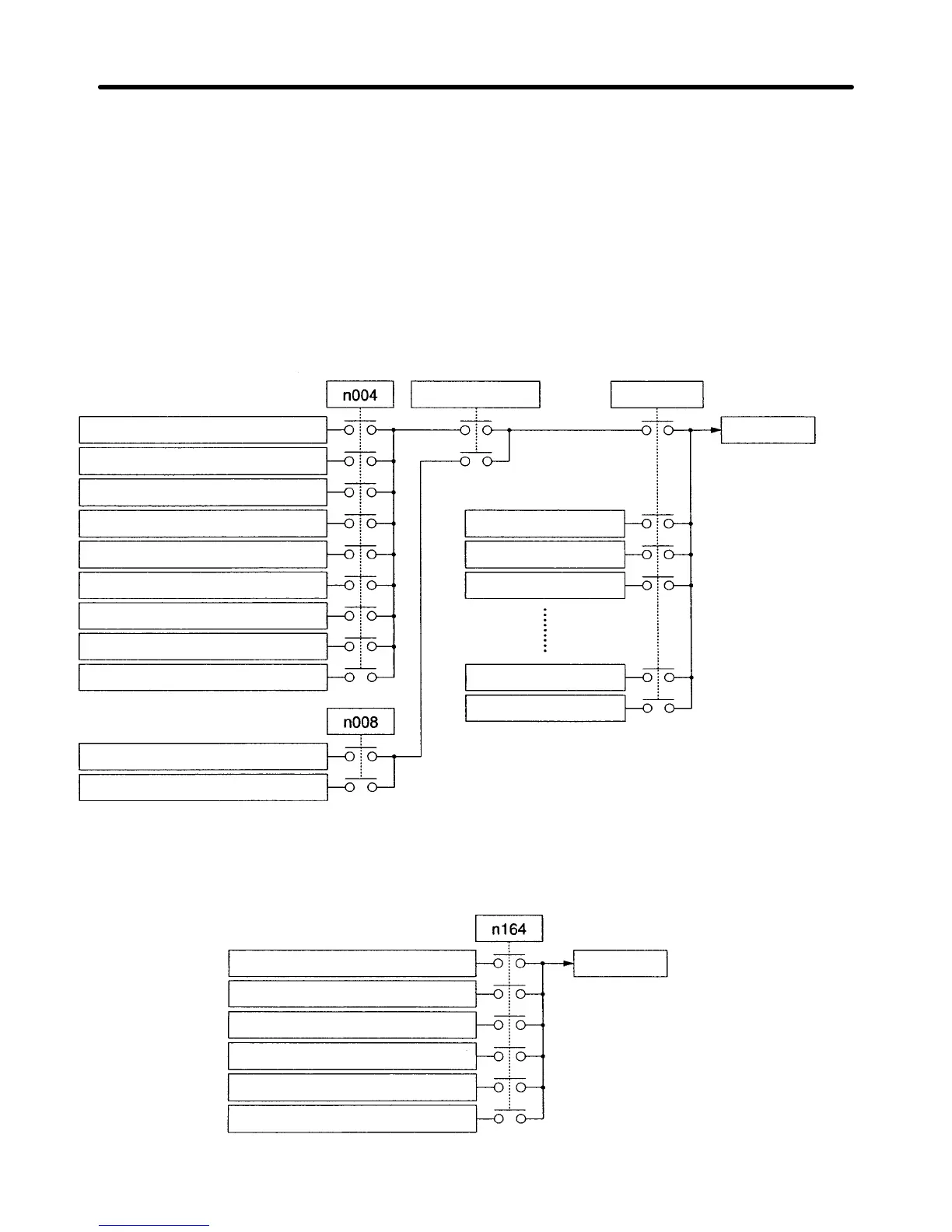

• The target value and detected value (feedback value) of PID control are set according to n004 for fre-
quency reference selection, n008 for local mode frequency reference selection, and n164 PID feed-
back input block selection as shown in the following diagram.
Make sure that the target value input and feedback value input do not overlap with each other. Setting
details are provided from the next page onward.
H Input Selection of PID Control Target Value
Local/Remote
Multi-step speed
reference
FREQUENCY adjuster of the
Digital Operator
Frequency reference 1 (n024)
External terminal (0 to 10 V)
External terminal (4 to 20 mA)
External terminal (0 to 20 mA)
Pulse train input
Communications frequency reference
Multi-function analog input (0 to 10 V)
Multi-function analog input (4 to 20 mA)
FREQUENCY adjuster of the
Digital Operator
Frequency reference 1 (n024)
Frequency reference 2 (n025)
Frequency reference 3 (n026)
Frequency reference 4 (n027)
Frequency reference 16 (n127)
Inching frequency (n032)
Target value
H Input Selection of PID Control Detection Value
Feedback value
External terminal (0 to 10 V)
External terminal (4 to 20 mA)
External terminal (0 to 20 mA)
Multi-function analog input (0 to 10 V)
Multi-function analog input (4 to 20 mA)
Pulse train input
Advanced Operation Chapter 6

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
