9-17

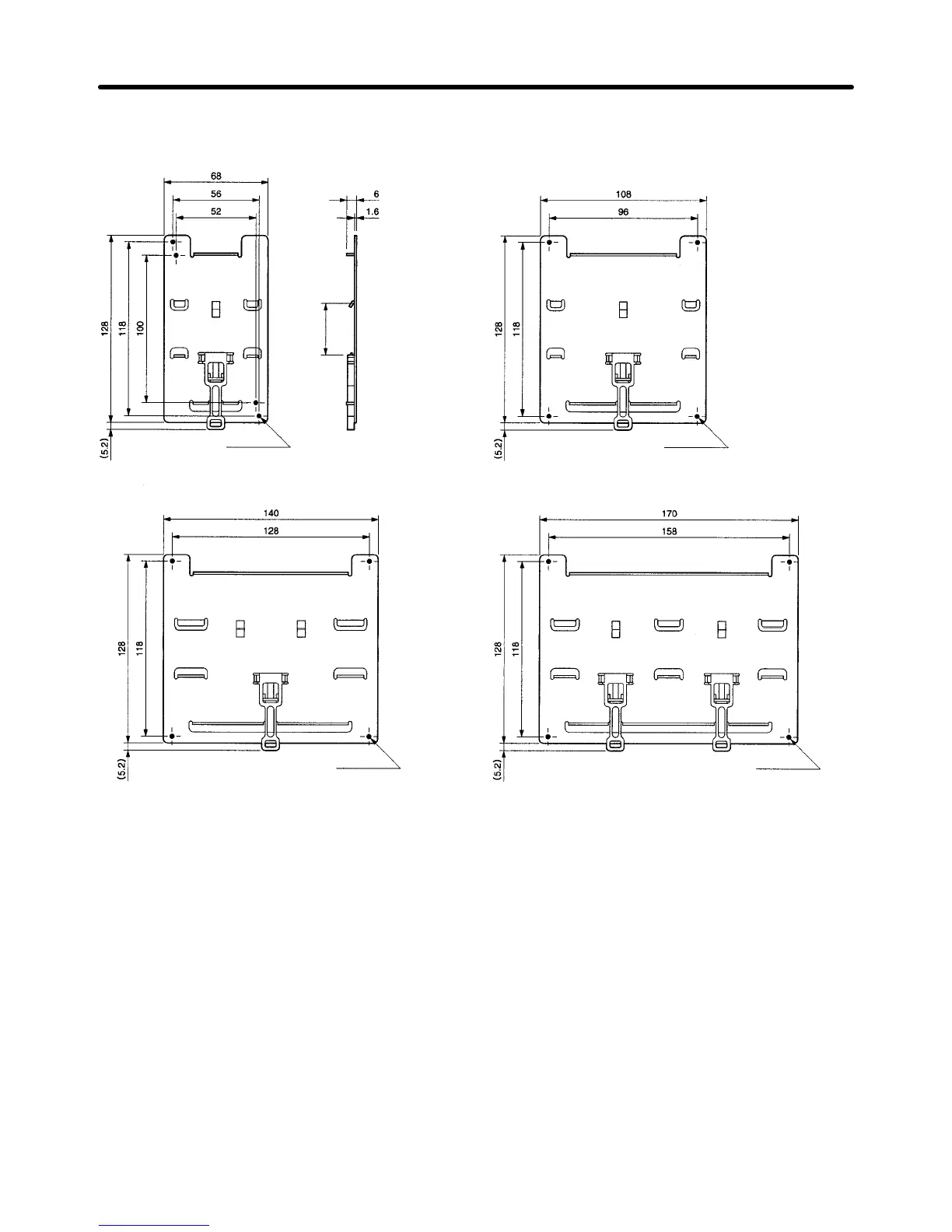

H External Dimensions (mm)
3G3IV-PEZZ08122A 3G3IV-PEZZ08122B
(35.1)
DIN track
Four, M4 tap
Four, M4 tap
Four, M4 tap Four, M4 tap
3G3IV-PEZZ08122C
3G3IV-PEZZ08122D
Side View
(Common to all the Units)
9-2-9 Digital Operators
H 3G3IV-PJVOP140 (with FREQUENCY adjuster)
3G3IV-PJVOP146 (without FREQUENCY adjuster)
• The 3G3IV-PJVOP140 and 3G3IV-PJVOP146 are dedicated 3G3JV- and 3G3MV-series Digital Op-
erators. They can be used for remote control or when the Inverter panel needs to be located on the
front of the control panel.
• The 3G3IV-PJVOP140 and 3G3IV-PJVOP146 Digital Operators can store parameter settings, copy
stored settings to another Inverter, and compare stored settings to Inverter settings.
• Be sure to mount the 3G3IV-PJVOP140 in a 3G3IV-PEZZ08386A casing prior to use because the Dig-
ital Operator itself cannot be mounted on or connected by cable to a control panel.
Note The enclosure rating of the 3G3IV-PJVOP146 and that of the 3G3IV-PJVOP140 mounted in a
3G3IV-PEZZ08386A casing both conform to IP20. If the packing provided with the 3G3IV-
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
