Omron SYSDRIVE 3G3MV SERIES User Manual

9-22

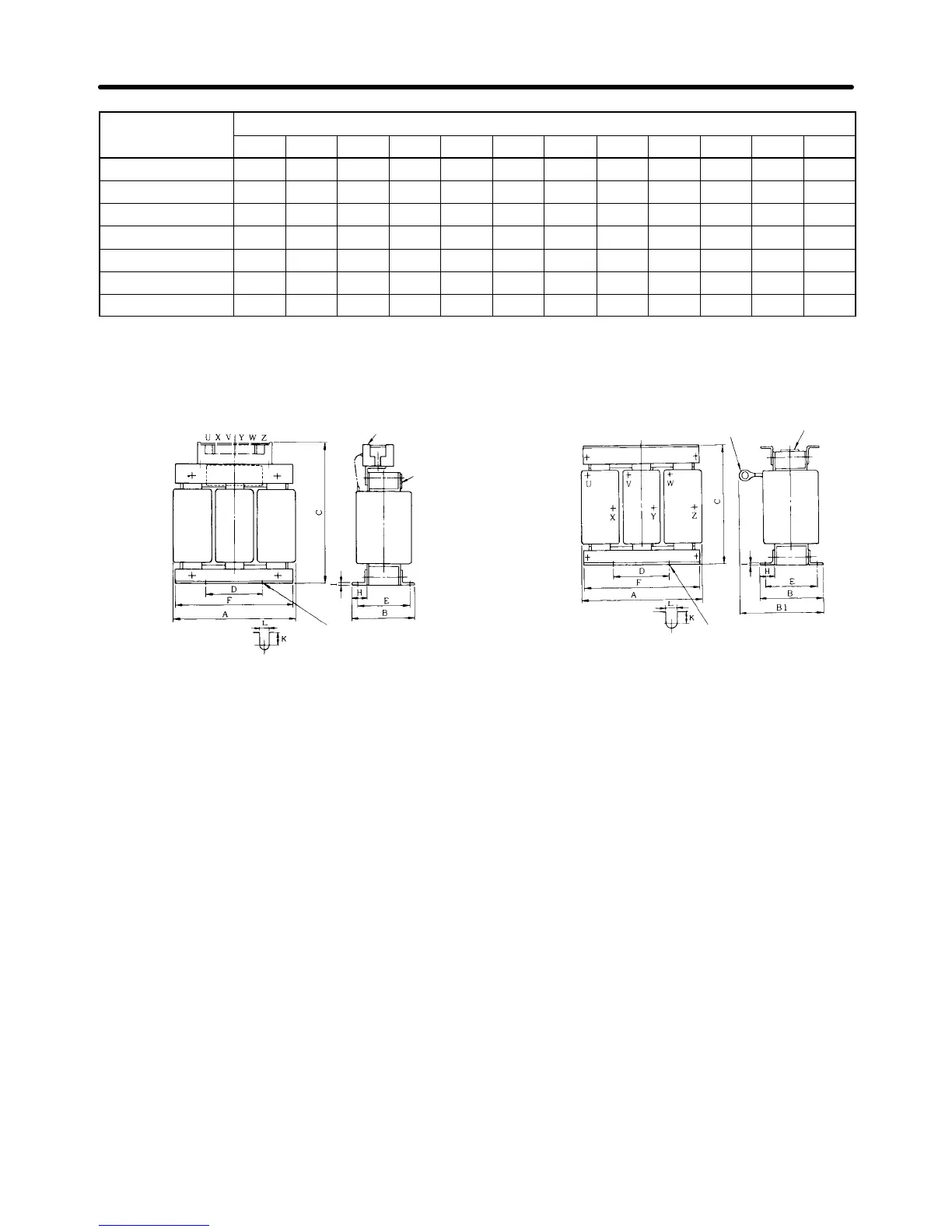

Model
3G3IV PUZBABj
Dimension (mm)
3G3IV-PUZBABj
A B B1 C D E F H J K L M
1.3A18.0MH 120 71 --- 120 40 50 105 20 M6 10.5 7 M4
2.5A8.4MH 120 71 --- 120 40 50 105 20 M6 10.5 7 M4
5A4.2MH 130 88 --- 130 50 70 130 22 M6 9 7 M4
7.5A3.6MH 130 88 --- 130 50 70 130 22 M6 9 7 M4
10A2.2MH 130 88 --- 130 50 65 130 22 M6 11.5 7 M4
15A1.42MH 130 98 --- 130 50 75 130 22 M6 11.5 7 M4
20A1.06MH 160 90 115 130 75 70 160 25 M6 10 7 M5
Dimensions
M Terminal
Nameplate
Mounting Dimensions
4-J mounting bolt
All models except the four models shown on the right
3G3IV-PUZBAB20A0.53MH
3G3IV-PUZBAB30A0.53MH
3G3IV-PUZBAB40A0.265MH
3G3IV-PUZBAB20A1.06MH
M Terminal
Nameplate
4-J mounting bolt
Mounting Dimensions
9-2-11 EMC-compatible Noise Filter
H 3G3MV-PRSj (Rasmi)
• Be sure to select an optimum Noise Filter from the following so that the Inverter will satisfy EMC direc-
tive requirements of the EC Directives.
• Connect the Noise Filter between the power supply and the input terminals (R/L1, S/L2, and T/L3) of
the Inverter.
• The Inverter can be mounted to the upper side of the Noise Filter because the upper side of the Noise
Filter incorporates mounting holes for the Inverter.
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
