Omron SYSDRIVE 3G3MV SERIES User Manual

2-9
H Removing the Terminal Cover
D 0.2- to 3.7-kW Inverters

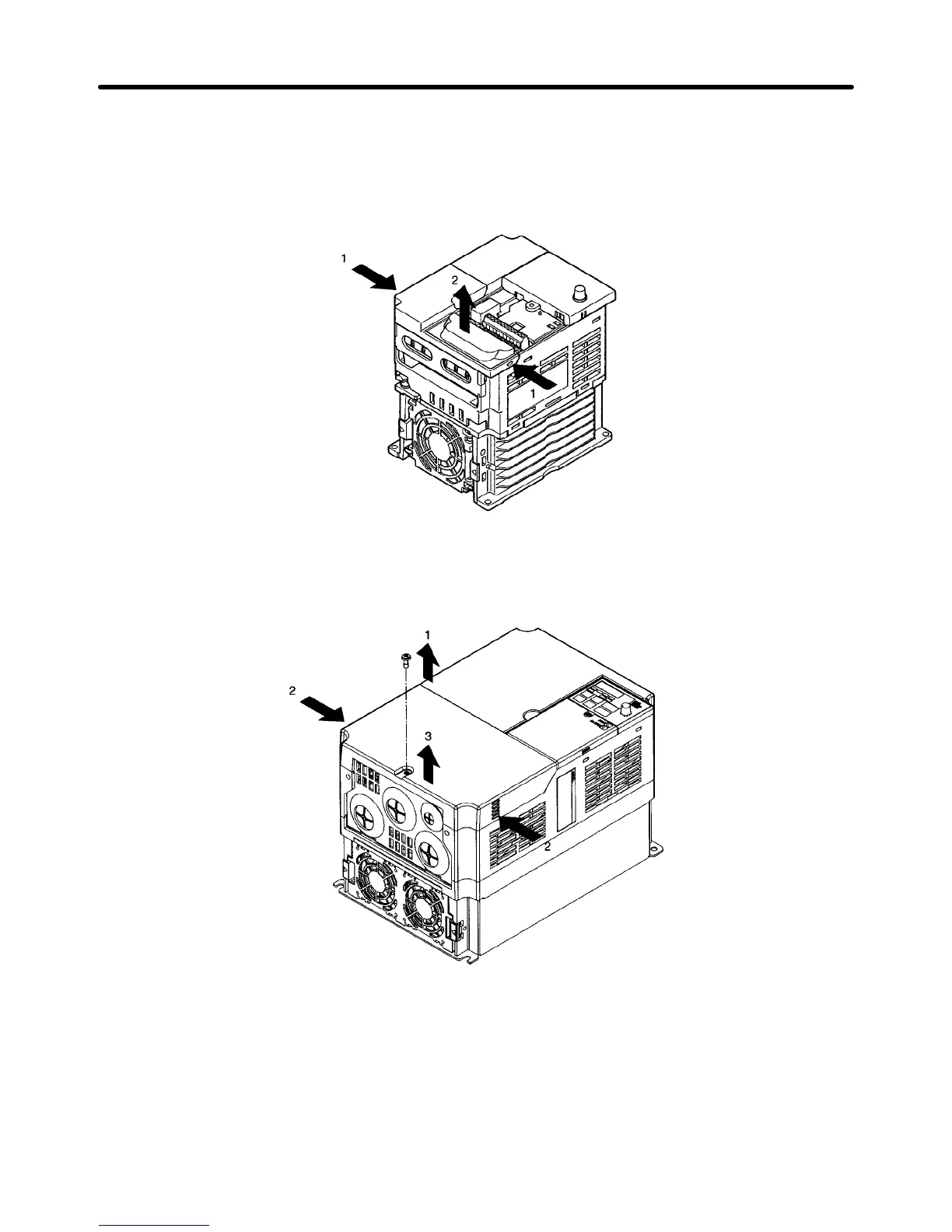

• After the front cover is removed, press the left and right sides of the terminal cover in the arrow 1 direc-
tions and lift the terminal cover in the arrow 2 direction as shown in the following illustration.
D 5.5-/7.5-kW Inverters
• Loosen the terminal cover screws in the direction of arrows 1.
• Press the left and right sides of the terminal cover in the direction of arrows 2 and lift it in the direction of
arrow 3 as shown in the following illustration.
Note None of the following 200-V models have a terminal cover. Instead, the front cover is used as a
terminal cover.
3G3MV-A2001 (0.1 kW), 3G3MV-A2002 (0.2 kW), 3G3MV-A2004 (0.4 kW), 3G3MV-A2007 (0.75
kW), 3G3MV-AB001 (0.1 kW), 3G3MV-AB002 (0.2 kW), and 3G3MV-AB004 (0.4 kW)
Design Chapter 2

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
