Omron SYSDRIVE 3G3MV SERIES User Manual

2-8
2-1-3 Removing and Mounting the Covers
To mount the Inverter, it is necessary to remove the front cover, terminal cover (unless
the Inverter is a 200-V model), and the Digital Operator. To wire the Inverter, it is neces-
sary to remove the front cover, terminal cover (unless the Inverter is a 200-V model), and
bottom cover from the Inverter.
Follow the instructions below to remove the covers from the Inverter.
To mount the covers, take the opposite steps.

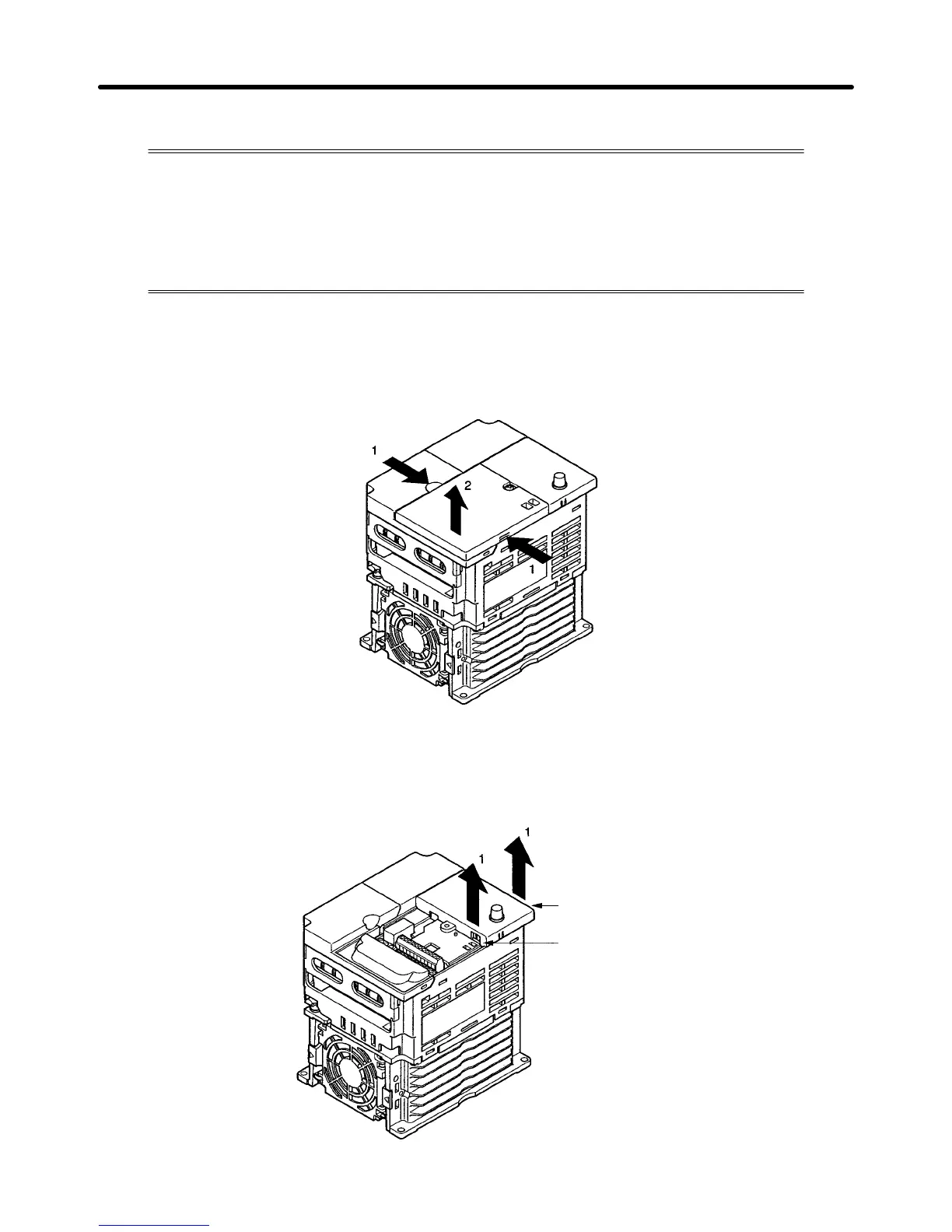

H Removing the Front Cover
• Loosen the front cover mounting screws with a screwdriver.
• Press the left and right sides of the front cover in the arrow 1 directions and lift the bottom of the cover in
the arrow 2 direction to remove the front cover as shown in the following illustration.
H Removing the Digital Operator
• After removing the front cover, lift up the upper and lower right-hand sides (positions A) of the Digital
Operator in the direction of arrow 1 as shown in the following illustration.
A
A
Design Chapter 2

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
