Omron SYSDRIVE 3G3MV SERIES User Manual

9-15

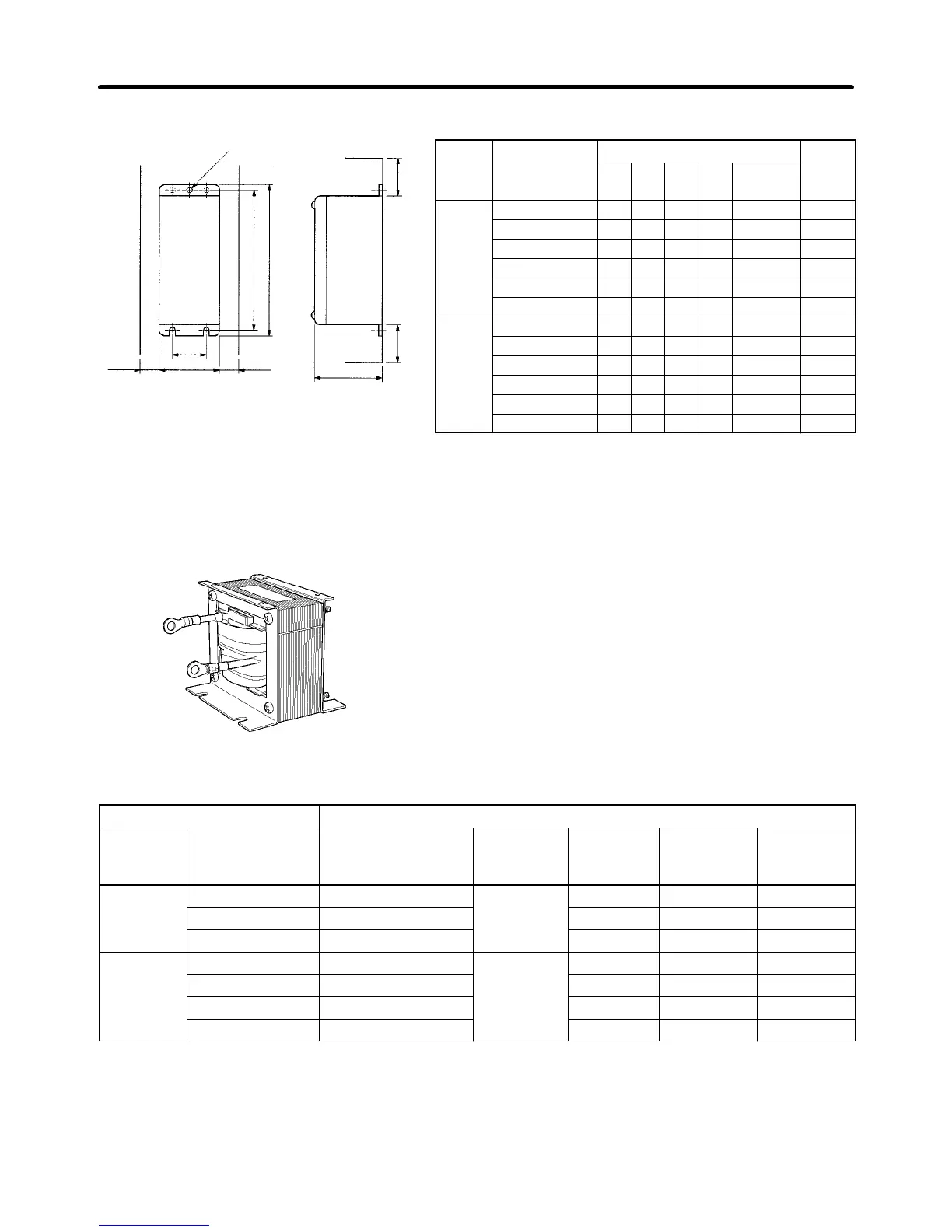

H External Dimensions (mm)
Voltage
class
Braking
Resistor Unit
Dimensions (mm)
Weight
(kg)
class Resistor Unit
model
3G3IV-PLKEBj
A B C D Mounting
screw
(kg)
200 V
20P7 105 275 50 260 M5×3 3.0
21P5 130 350 75 335 M5×4 4.5
22P2 130 350 75 335 M5×4 4.5
23P7 130 350 75 335 M5×4 5.0
25P5 250 350 200 335 M6×4 7.5
27P5 250 350 200 335 M6×4 8.5
400 V
40P7 105 275 50 260 M5×3 3.0
41P5 130 350 75 335 M5×4 4.5
42P2 130 350 75 335 M5×4 4.5
43P7 130 350 75 335 M5×4 5.0
45P5 250 350 200 335 M6×4 7.5
47P5 250 350 200 335 M6×4 8.5
9-2-7 DC Reactor
H 3G3HV-PUZDABj
The DC Reactor suppresses harmonic current gener-
ated from the Inverter and improves the power factor of
the Inverter. The DC Reactor suppresses harmonic cur-
rent more effectively than the AC Reactor. Furthermore,
the DC Reactor can be used in combination with the AC
Reactor.
H Applicable Models
Inverter DC Reactor
Voltage
class
Max. applicable
motor capacity
(kW)
Model
3G3HV-
Rated volt-
age (V)
Rated cur-
rent (A)
Inductance
(mH)
Loss (W)
200 V
0.1 to 0.75 PUZDAB5.4A8MH
800 V DC
5.4 8 8
1.5 to 3.7 PUZDAB18A3MH 18 3 18
5.5 to 7.5 PUZDAB36A1MH 36 1 22
400 V
0.2 to 0.75 PUZDAB3.2A28MH
800 V DC
3.2 28 9
1.5 to 2.2 PUZDAB5.7A11MH 5.7 11 11
3.7 PUZDAB12A6.3MH 12 6.3 16
5.5 to 7.5 PUZDAB23A3.6MH 23 3.6 27
Specifications
Chapter 9
30 min.
30 min.
Mounting screw
150
A
C
150 min.
150 min.
D
B

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
