Omron SYSDRIVE 3G3MV SERIES User Manual

4-6

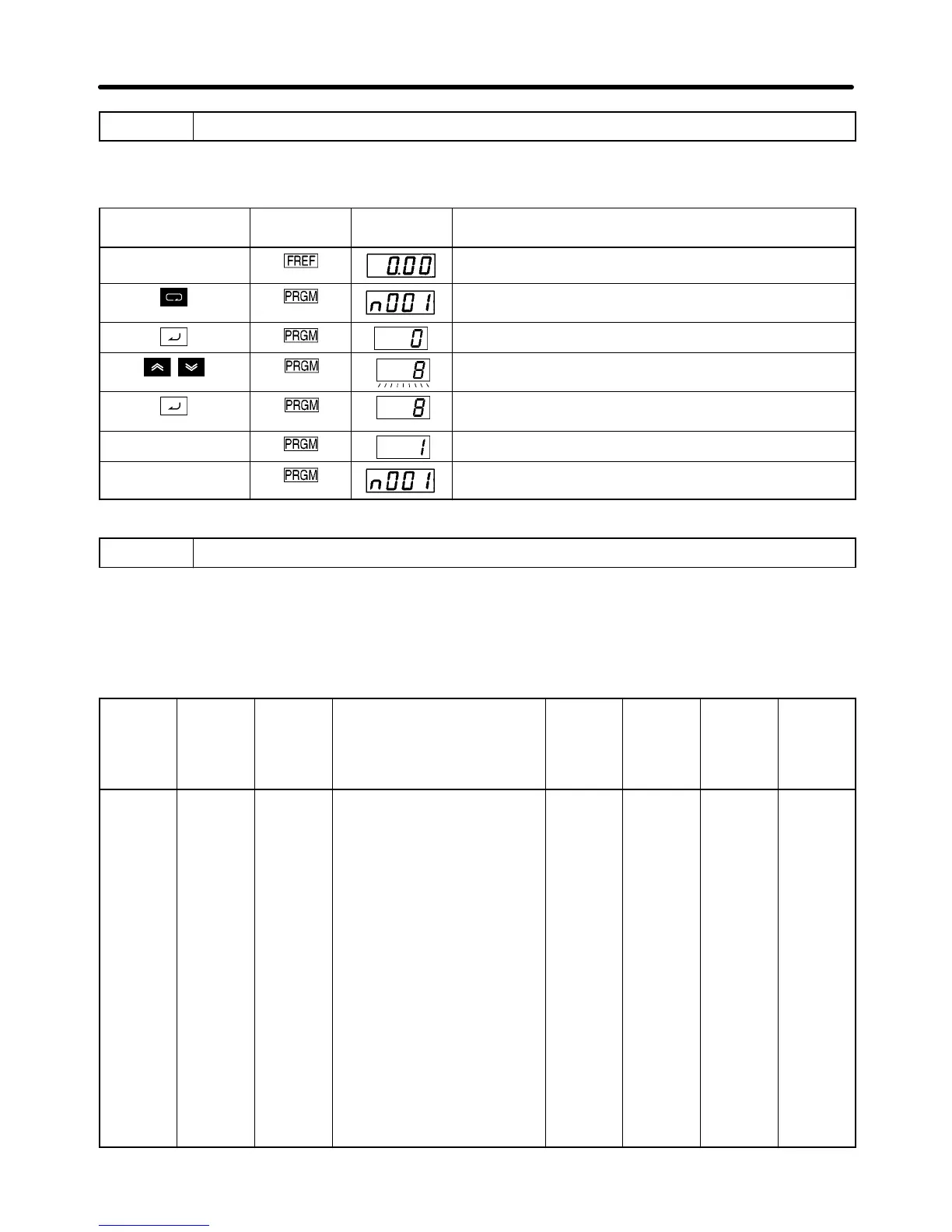

3 Initializing Parameters
• Initialize the parameters using the following procedure.
• To initialize the parameters, set n01 to 8.
Key sequence Indicator Display
example
Explanation
Power On
Press the Mode Key repeatedly until the PRGM indicator
is lit.
Press the Enter Key. The data of n001 will be displayed.
Use the Increment or Decrement Key to set n01 to 8.
The display will flash.
Press the Enter Key so that the set value will be entered
and the data display will be lit.
--- Parameter n001 will be initialized and reset to 1 from 8.
In approximately
1 s.
The parameter number will be displayed.
4 Setting the Motor Current Parameter
• Run the Inverter in V/f control mode for trial operation. The control mode is not initialized. Therefore,
set n002 to 0 for V/f control. Set the motor current parameter in n036 in order to prevent the motor from
burning due to overloading.
H Control Mode Setting
Parame-
ter
Register Name Description Setting
range
Unit of
setting
Default
setting
Chan-
ges dur-
ing
opera-
tion
n002 0102 Control
mode
selection
Sets the control mode for the
Inverter.
0: V/f control mode
1: Vector control mode
Note 1. The control mode
is not initialized
with n001 set-
tings.
Note 2. There are param-
eters that are
changed accord-
ing to the set
value in n002. For
details, refer to
5-1-2 Setting the
Control Mode
(n002).
0, 1 1 0 No
Test Run
Chapter 4

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
