Omron SYSDRIVE 3G3MV SERIES

9-14

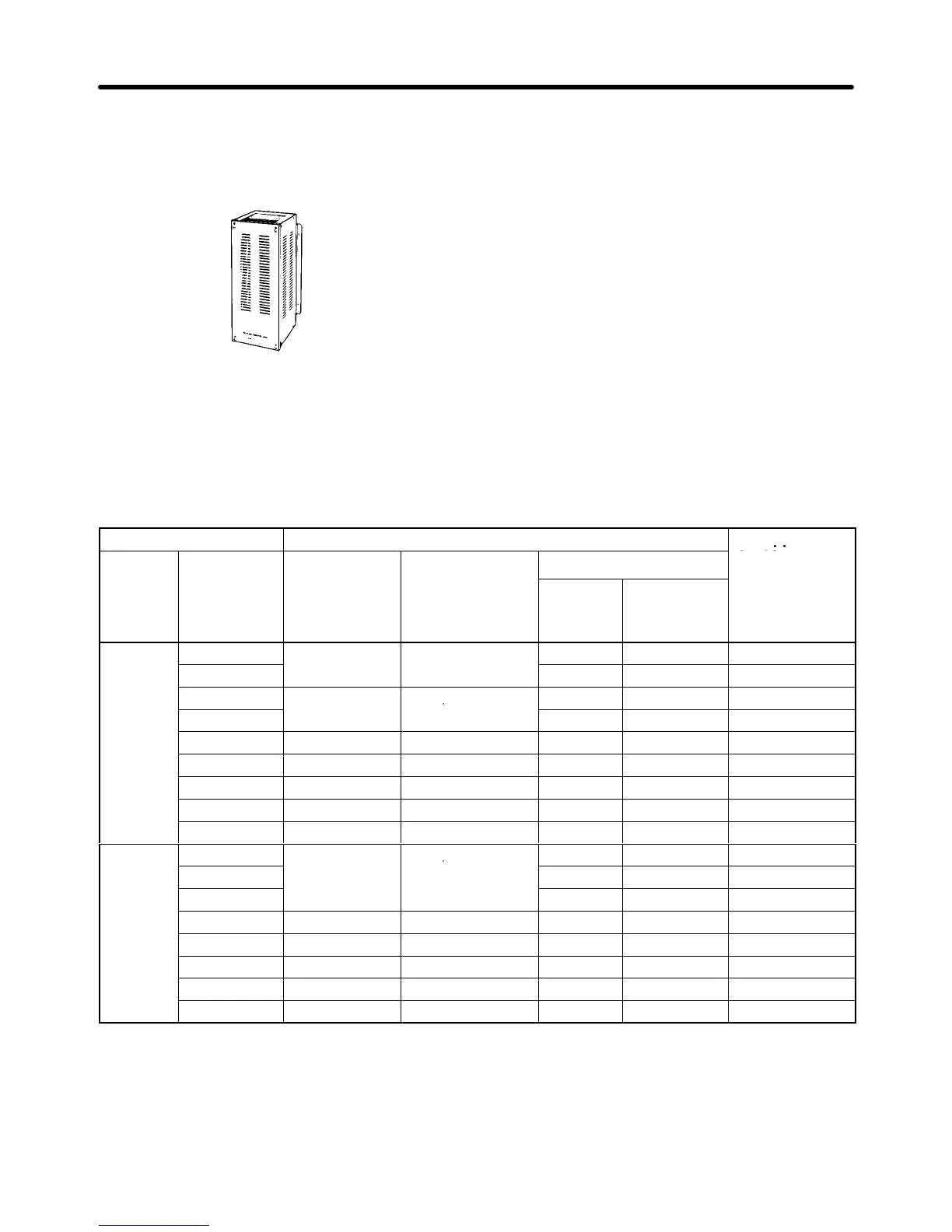

9-2-6 Braking Resistor Unit
H 3G3IV-PLKEBj
Use a resistor to absorb regenerative energy
of the motor to reduce deceleration time.
(Usage rate: 10% ED.)
Note “Usage rate: 10% ED” indicates that the
deceleration time can be reduced by
10% of the operating time of one cycle.
Refer to 2-2-3 Wiring around the Main Circuit
for precautions when selecting the Braking
Resistor.
H Applicable Models
Inverter Braking Resistor Unit
Approx.
bki
Voltage
class
Max.
applicable
Model
3G3IV-
Resistor
specifications
Unit (See note.)
pp
braking toque
(
1
0%
ED
)
c
l
ass app
li
ca
bl
e
motor
capacity
(kW)
3G3IV
- spec
ifi
ca
ti
ons
Number
of parts
Max.
number per
Inverter
(10% ED)
(%)
200 V
0.1 --- --- ---
0.2
--- ---
--- --- ---
0.4
PLKEB20P7 70 W, 200 Ω
1 1 220
0.75
,
1 1 125
1.5 PLKEB21P5 260 W, 100 Ω 1 1 125
2.2 PLKEB22P2 260 W, 70 Ω 1 1 120
3.7 PLKEB23P7 390 W, 40 Ω 1 1 125
5.5 PLKEB25P5 520 W, 30 Ω 1 1 115
7.5 PLKEB27P5 780 W, 20 Ω 1 1 125
400 V
0.2
PLKEB40P7 70 W, 750 Ω
1 1 230
0.4
,
1 1 230
0.75 1 1 130
1.5 PLKEB41P5 260 W, 400 Ω 1 1 125
2.2 PLKEB42P2 260 W, 250 Ω 1 1 135
3.7 PLKEB43P7 390 W, 150 Ω 1 1 135
5.5 PLKEB45P5 520 W, 100 Ω 1 1 135
7.5 PLKEB47P5 780 W, 75 Ω 1 1 130
Specifications
Chapter 9
