Omron SYSDRIVE 3G3MV SERIES User Manual

9-13

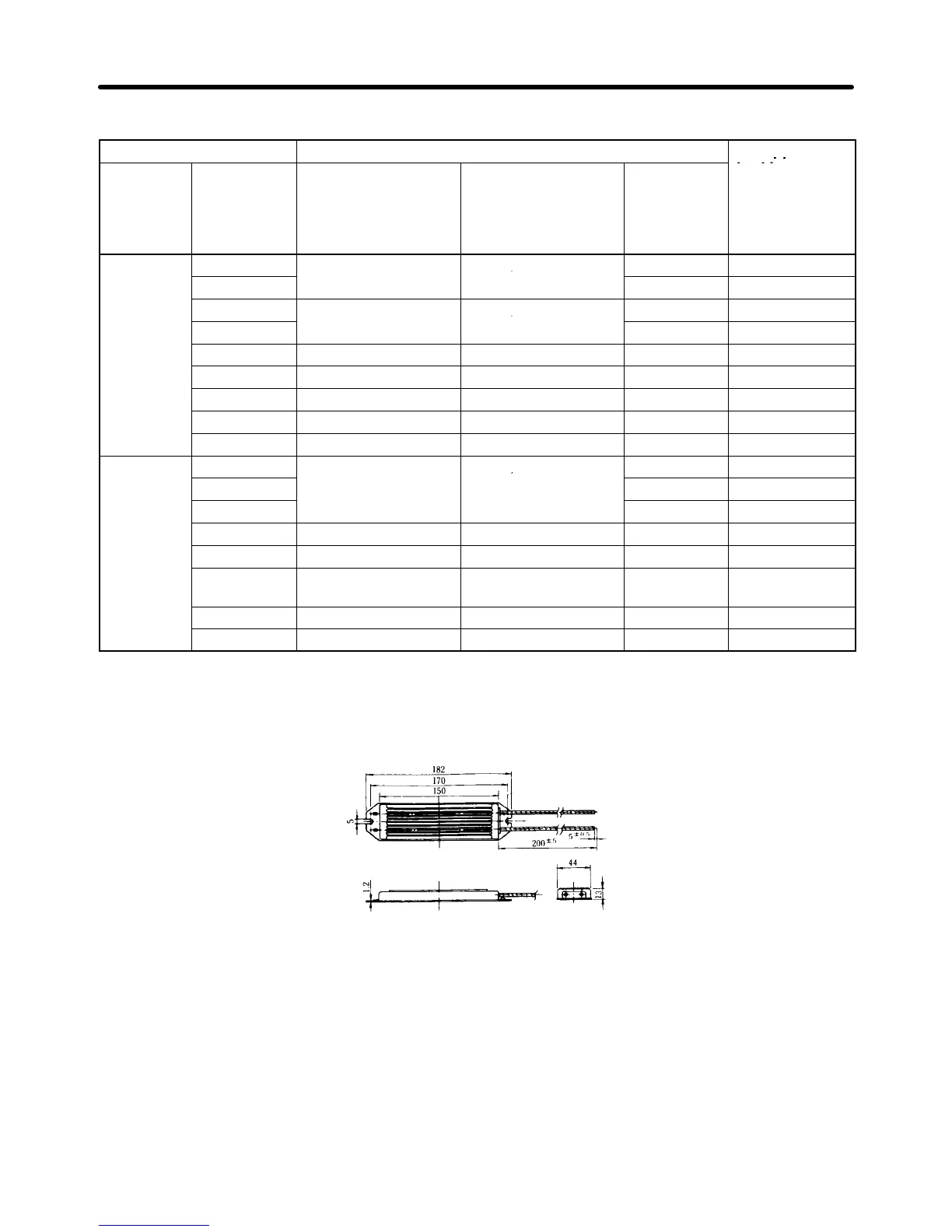

H Applicable Models
Inverter Braking Resistor
Approx.
bki
Voltage
class
Max.
applicable
motor
capacity
(kW)
Model
3G3IV-
Resistor
specifications
Number of
parts
pp
braking torque
(3% ED)
(%)
200 V
0.1
PERF150WJ401 150 W, 400 Ω
1 220
0.2
,
1 220
0.4
PERF150WJ201 150 W, 200 Ω
1 220
0.75
,
1 125
1.5 PERF150WJ101 150 W, 100 Ω 1 125
2.2 PERF150WJ700 150 W, 70 Ω 1 120
3.7 PERF150WJ620 150 W, 62 Ω 1 100
5.5 --- --- --- ---
7.5 --- --- --- ---
400 V
0.2
PERF150WJ751 150 W, 750 Ω
1 230
0.4
,
1 230
0.75 1 130
1.5 PERF150WJ401 150 W, 400 Ω 1 125
2.2 PERF150WJ301 150 W, 300 Ω 1 115
3.7 PERF150WJ401 150 W, 400 Ω 2 115
(See note.)
5.5 --- --- --- ---
7.5 --- --- --- ---
Note The usage rate for the 3G3IV-PERF150WJ401 is 2% ED.
H External Dimensions (mm)
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
