H Error Check
• The CRC-16 check code is the remainder (16 bits) when all of the message blocks from the Slave
address to the final communications data are connected in series, as shown in the following diagram,
and this data is divided by a fixed 17-digit binary number (1 1000 0000 0000 0101).
Note 1. Normally “0” is used as the initial value for CRC-16 cal-
culations, but “–1” (16 bits all “1”) is used here.
Note 2. The CRC-16 code is calculated with the LSB of the
Slave address handled as the MSB, and the final MSB
of the communications data handled as the LSB.
Note 3. Calculate the CRC-16 code for responses from the
Slave as well, and compare it with the CRC-16 code in
the response message.

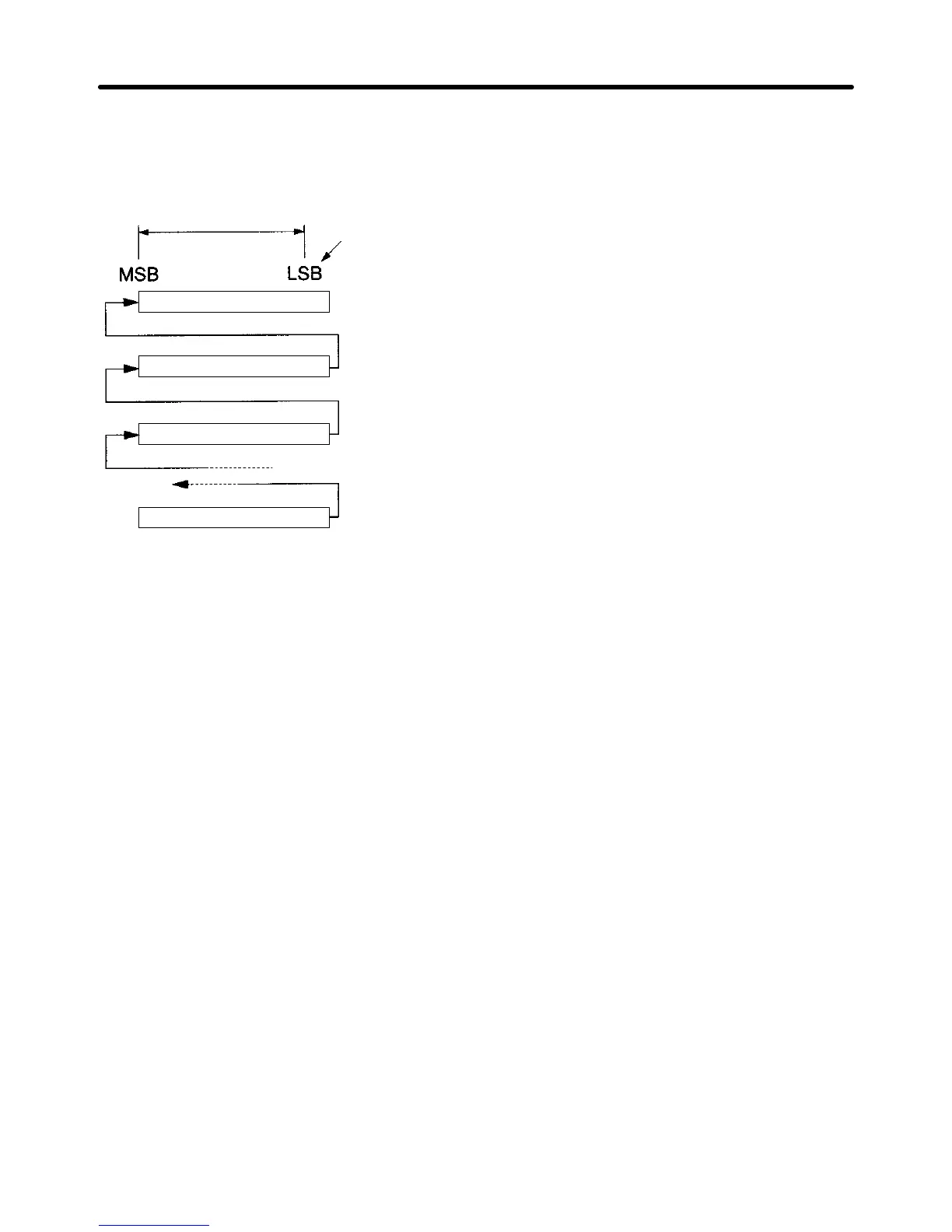

8 bits
The LSB of the Slave address is handled as the MSB in CRC-16 calculation.
Slave address
Function code
Start of communications data
End of communications data
Communications Chapter 7

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
