Omron SYSDRIVE 3G3MV SERIES User Manual

9-30

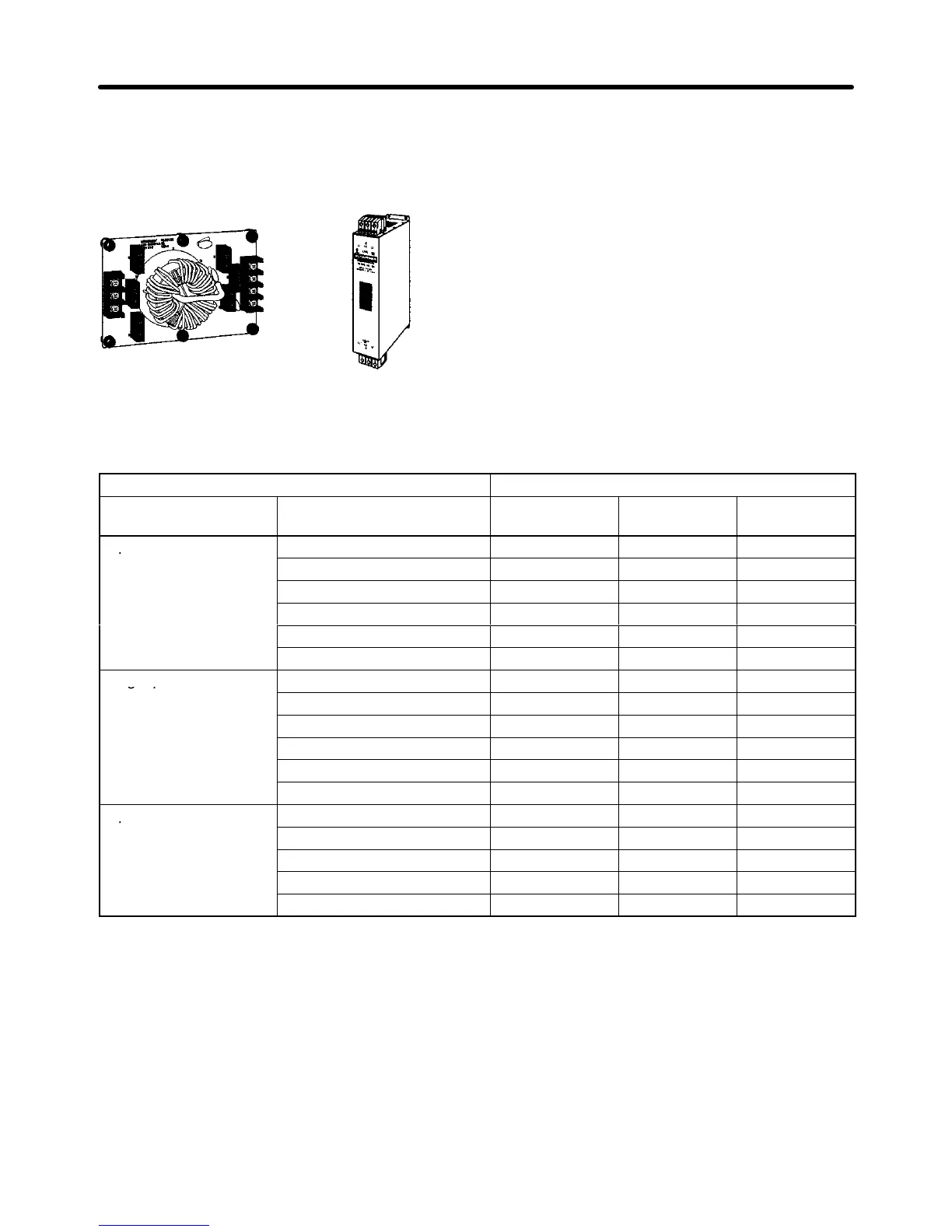

9-2-12 Simple Input Noise Filter and Input Noise Filter
H 3G3EV-PLNFDj (Yaskawa Electric)/3G3IV-PFNj (Schaffner)
The Simple Input Noise Filter is connected
to the power input side to eliminate the noise
in the power line connected to the Inverter
and suppress noise leaking from the
Inverter to the power line.
Simple Input Noise Filter Input Noise Filter
H Applicable Models
Inverter Simple Input Noise Filter
Voltage Model
3G3MV-
Model
3G3EV-
Rated current
(A)
Weight (kg)
3-phase 200 V AC
A2001/A2002/A2004/A2007 PLNFD2103DY 10 0.2
p
A2015 PLNFD2153DY 15 0.2
A2022 PLNFD2203DY 20 0.4
A2037 PLNFD2303DY 30 0.5
A2055 PFN258L4207 42 2.8
A2075 PFN258L5507 55 3.1
Single-phase 200 V AC
AB001/AB002 PLNFB2102DY 10 0.1
gp
AB004 PLNFB2152DY 15 0.2
AB007 PLNFB2202DY 20 0.2
AB015 PLNFB2302DY 30 0.3
AB022 PLNFB2202DY 20 × 2P 0.2
AB037 PLNFB2302DY 30 × 2P 0.3
3-phase 400 V AC
A4002/A4004/A4007 PLNFD4053DY 5 0.3
p
A4015/A4022 PLNFD4103DY 10 0.4
A4037 PLNFD4153DY 15 0.4
A4055 PLNFD4203DY 20 0.5
A4075 PLNFD4303DY 30 0.6
Note The “2P” in the rated current column indicates parallel connection.
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
