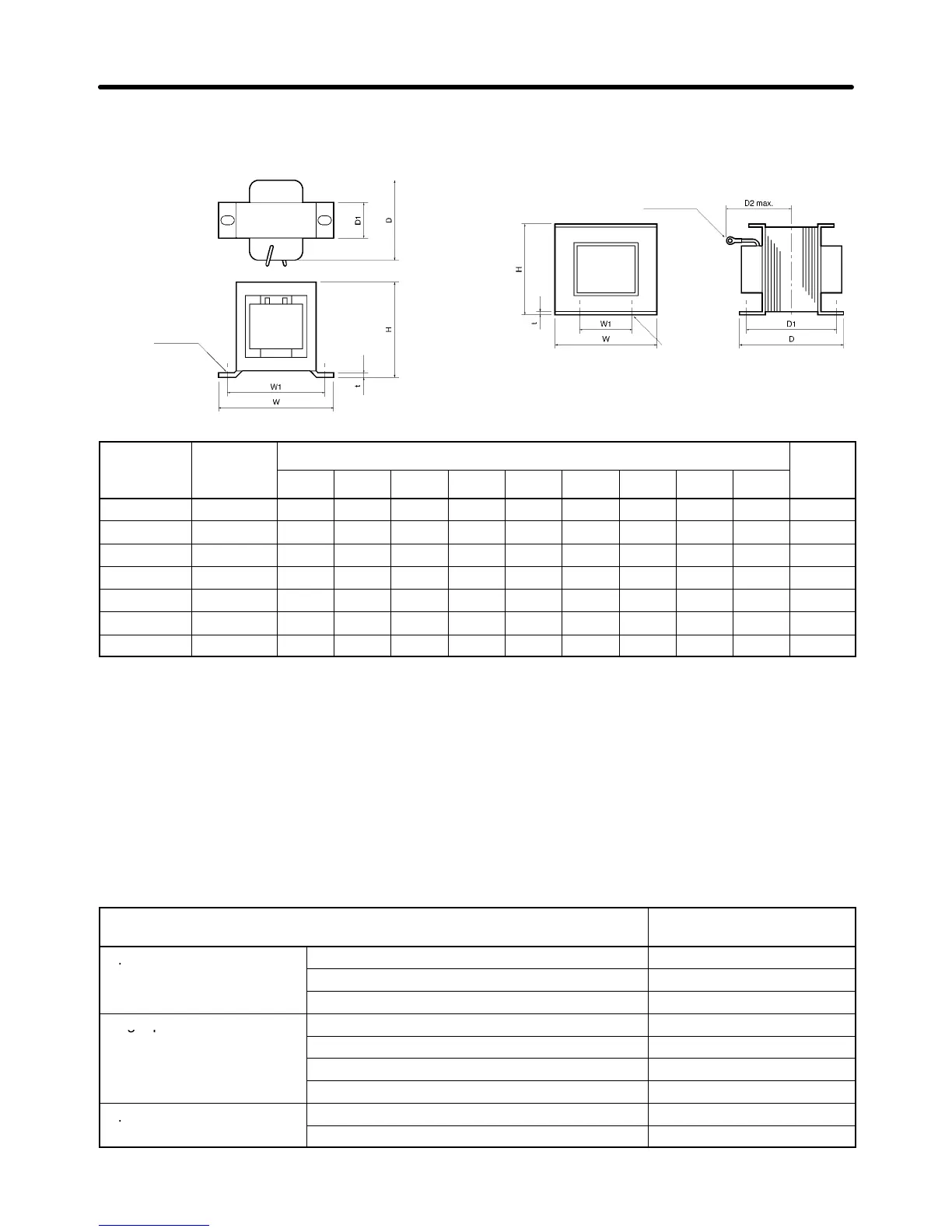

H External Dimensions (mm)
External Dimension 1
Two, d1
mounting holes
External Dimension 2
Two, d2
mounting holes
Four, d1
mounting holes
Model
3G3HV
External
dimen
Dimension (mm)
Weight
(kg)
3G3HV-
PUZDABj
dimen-
sion
H W W1 D D1 D2 t d1 d2
(kg)
5.4A8MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
18A3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
36A1MH 2 93 105 64 92 80 90 1.6 M6 M6 3.2
3.2A28MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
5.7A11MH 1 60 90 80 60 32 --- 0.8 M4 --- 1.0
12A6.3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
23A3.6MH 2 93 105 64 92 80 90 1.6 M6 M5 3.2
9-2-8 DIN Track Mounting Bracket
H 3G3IV-PEZZ08122j
An adapter making it possible to easily mount the Inverter to DIN tracks.
H Applicable Models
Inverter DIN Track Mounting
Bracket
3-phase 200 V AC
3G3MV-A2001/-A2002/-A2004/-A2007 3G3IV-PEZZ08122A
p
3G3MV-A2015/-A2022 3G3IV-PEZZ08122B
3G3MV-A2037 3G3IV-PEZZ08122C
Single-phase 200 V AC
3G3MV-AB001/-AB002/-AB004 3G3IV-PEZZ08122A
gp
3G3MV-AB007/-AB015 3G3IV-PEZZ08122B
3G3MV-AB022 3G3IV-PEZZ08122C
3G3MV-AB037 3G3IV-PEZZ08122D
3-phase 400 V AC
3G3MV-A4002/-A4004/-A4007/-A4015/-A4022 3G3IV-PEZZ08122B
p
3G3MV-A4037 3G3IV-PEZZ08122C
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
