Omron SYSDRIVE 3G3MV SERIES User Manual

2-20

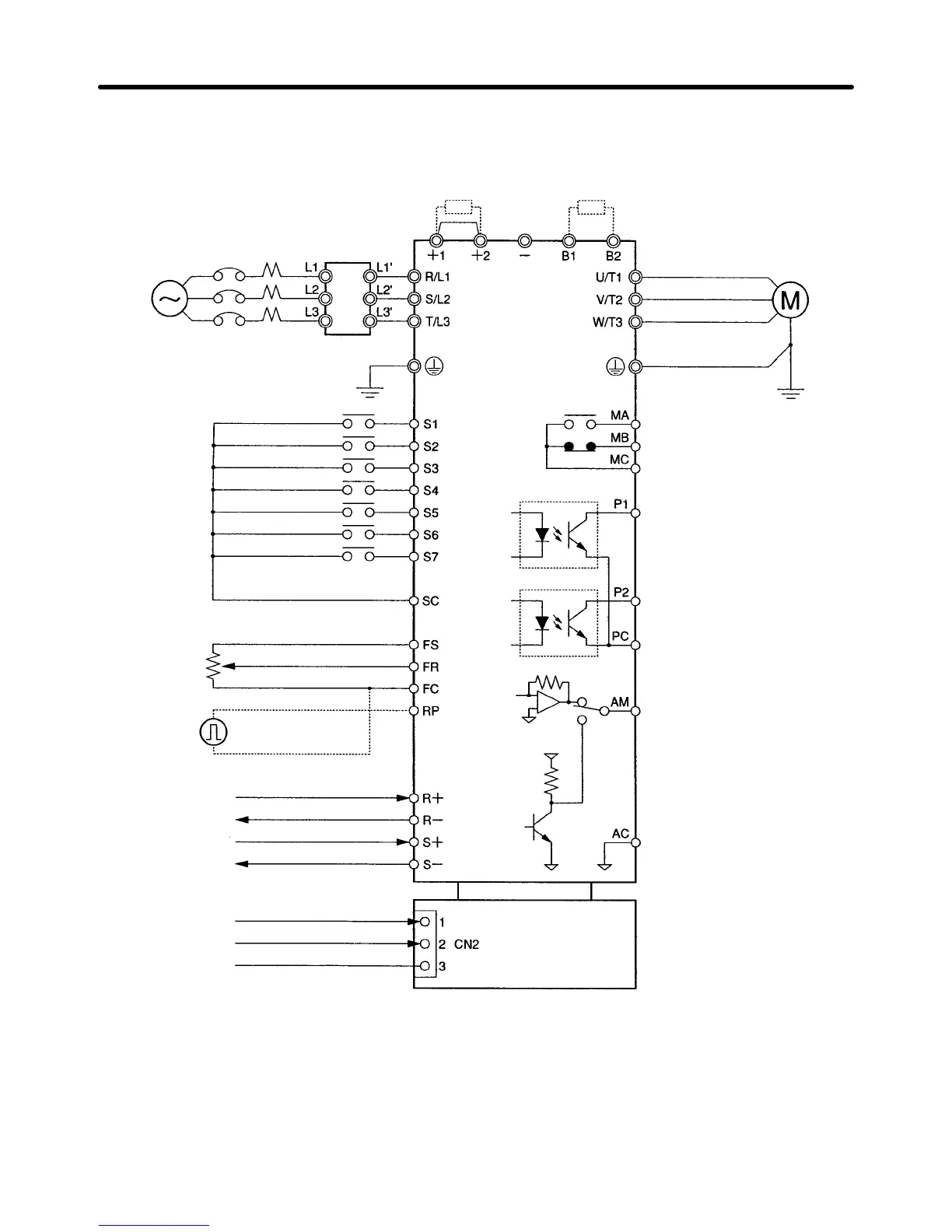

2-2-2 Standard Connections
DC reactor
(optional)
Noise Filter
3-phase 200/400 V AC
Single-phase 200 V AC (See note.)
Multi-function input 1
Sequence input common
Frequency reference power
supply 20 mA at +12 V
External
frequency
adjuster (2 kΩ,
1/4 W min.)
Frequency reference input
Frequency reference
common
Multi-function contact output
NO
NC
Common
Multi-function analog
output/Pulse monitor
output
Multi-function analog output
common
Braking Resistor
(optional)
Multi-function input 2
Multi-function input 3
Multi-function input 4
Multi-function input 5
Multi-function input 6
Multi-function input 7
Pulse
generator
Pulse train input
RS-422
communications
(RS-485 selection)
Multi-function analog voltage input
Multi-function analog current input
Analog input common
Connector
Digital Operator
Multi-function
photocoupler output 1
Multi-function
photocoupler output 2
Multi-function
photocoupler output
common
Note Connector on CN2 wiring side:
Contact: SZH-002T-P0.5
Housing: ZHR-3
(Products of J.S.T. MFG. Co., Ltd.)
Note Connect single-phase 200 V AC to terminals R/L1 and S/L2 of the 3G3MV-ABj.
Design Chapter 2

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
