Omron SYSDRIVE 3G3MV SERIES User Manual

9-23
H Applicable Models
Inverter EMC-compatible Noise Filter
Voltage Model
3G3MV-
Model
3G3MV
Rated current
(A)
Weight (kg)
3-phase 200 V AC
A2001/A2002/A2004/A2007 PRS2010V 10 0.8
p
A2015/A2022 PRS2020V 16 1.0
A2037 PRS2030V 26 1.1
A2055/A2075 PRS2050V 50 2.3
Single-phase 200 V AC
AB001/AB002/AB004 PRS1010V 10 0.6
gp
AB007/AB015 PRS1020V 20 1.0
AB022 PRS1030V 30 1.1
AB037 PRS1040V 40 1.2
3-phase 400 V AC
A4002/A4004 PRS3005V 5 1.0
p
A4007/A4015/A4022 PRS3010V 10 1.0
A4037 PRS3020V 15 1.1
A4055/A4075 PRS3030V 30 2.3

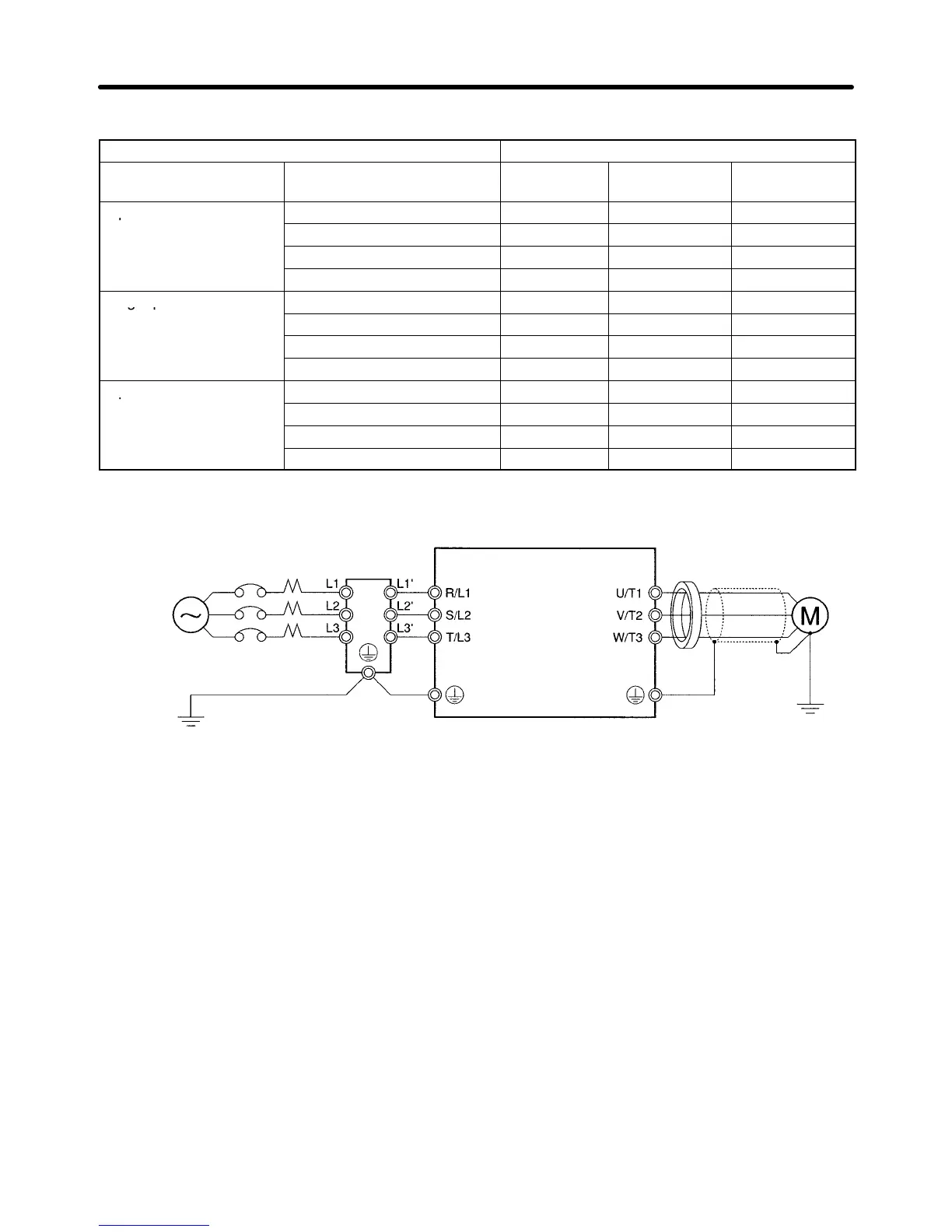

H Connection Example
MCCB
Noise Filter
3-phase 200 V AC,
single-phase 200 V AC or
3-phase 400 V AC
Clamp core
SYSDRIVE 3G3MV
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
