Omron SYSDRIVE 3G3MV SERIES User Manual

9-32
Model
3G3EV-
Dimension (mm)Figure
(above)
Model
3G3EV-
Mounting
screw
BA’AH max.DW
Figure
(above)
PLNFB2302DY 130 90 65 118 --- 78 M4 × 4, 20 mm
PLNFD4053DY
3
170 130 75 --- 79 118 M4 × 6, 30 mm
PLNFD4103DY 170 130 95 --- 79 118 M4 × 6, 30 mm
PLNFD4153DY 170 130 95 --- 79 118 M4 × 6, 30 mm
PLNFD4203DY 200 145 100 --- 94 133 M4 × 6, 30 mm
PLNFD4303DY 200 145 100 --- 94 133 M4 × 6, 30 mm
J (mounting screw)

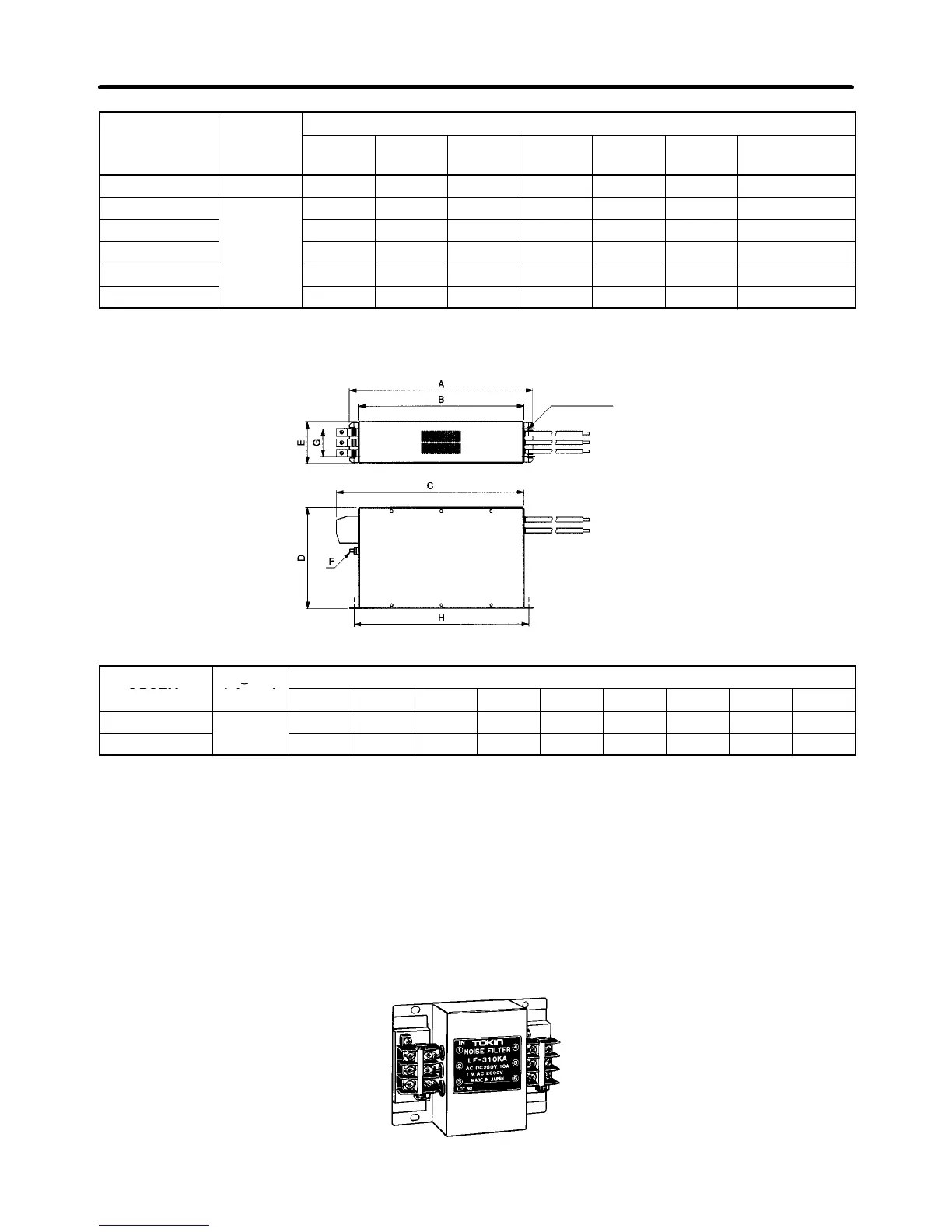

Dimensions 4 (Three-phase Input)
Model
3G3EV
Figure
(b )
Dimension (mm)
3G3EV-
g
(above)
A B C D E F G H J
PFN258L4207
4
329 300 325 185 70 M6 45 314 M5 × 4
PFN258L5507 329 300 353 185 80 M6 55 314 M5 × 4
9-2-13 Output Noise Filter
H 3G3IV-PLFj (Tokin)
The Output Noise Filter suppresses the generated noise of the Inverter from being transmitted to the
output line. Connect the Output Noise Filter to the output side of the Inverter.
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
