9-33

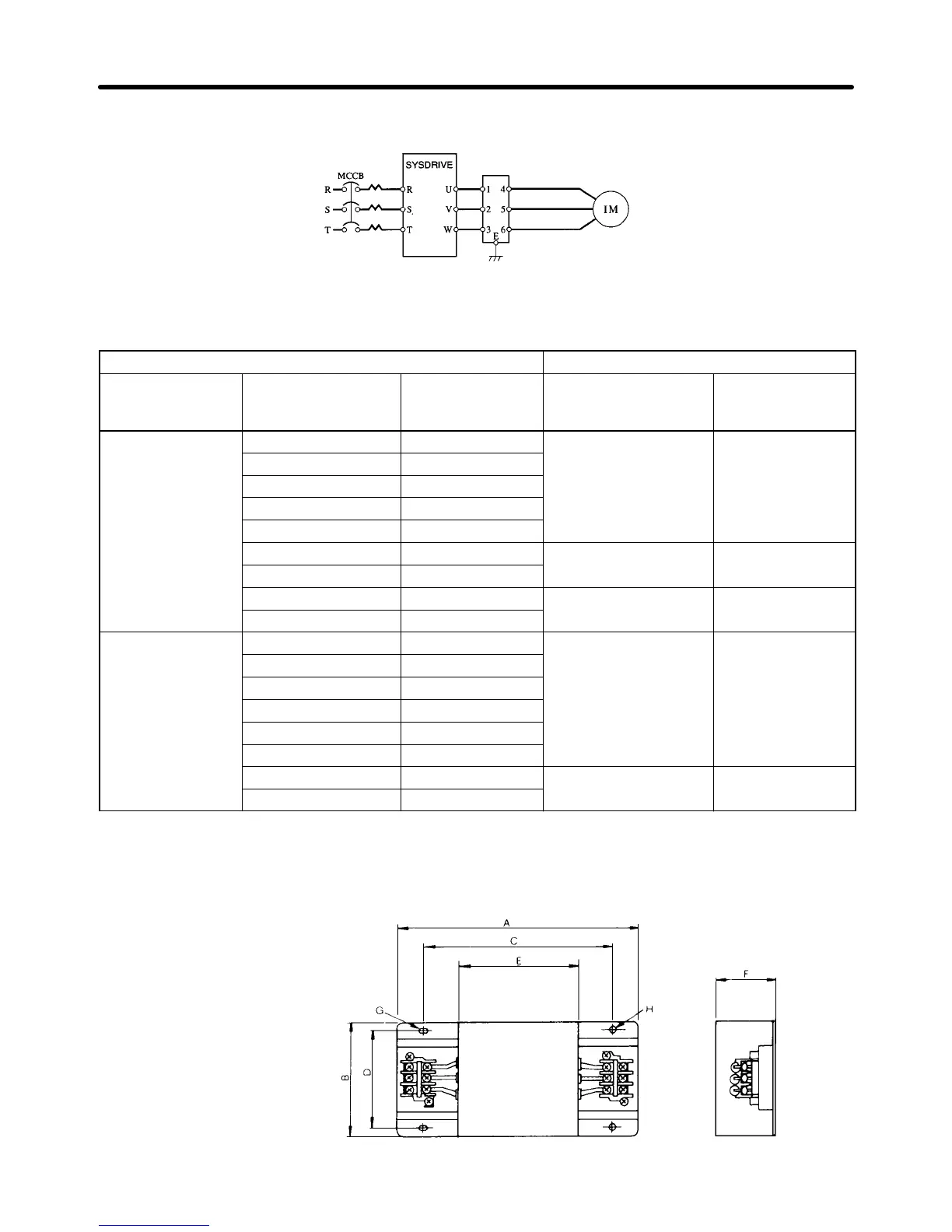

H Connection Example
Noise filter
H Application Models
Inverter Output Noise Filter
Voltage class Max. applicable
motor capacity
(kW)
Inverter capacity
(kVA)
Model Rated current (A)
200-V class
0.1 0.3
3G3IV-PLF310KA 10
0.2 0.6
0.4 1.1
0.75 1.9
1.5 3.0
2.2 4.2
3G3IV-PLF320KA 20
3.7 6.7
5.5 9.5
3G3IV-PLF350KA 50
7.5 13.0
400-V class
0.2 0.9
3G3IV-PLF310KB 10
0.4 1.4
0.75 2.6
1.5 3.7
2.2 4.2
3.7 6.6
5.5 11.0
3G3IV-PLF320KB 20
7.5 14.0
H Dimensions
External Dimensions
Specifications
