Omron SYSDRIVE 3G3MV SERIES User Manual

9-10

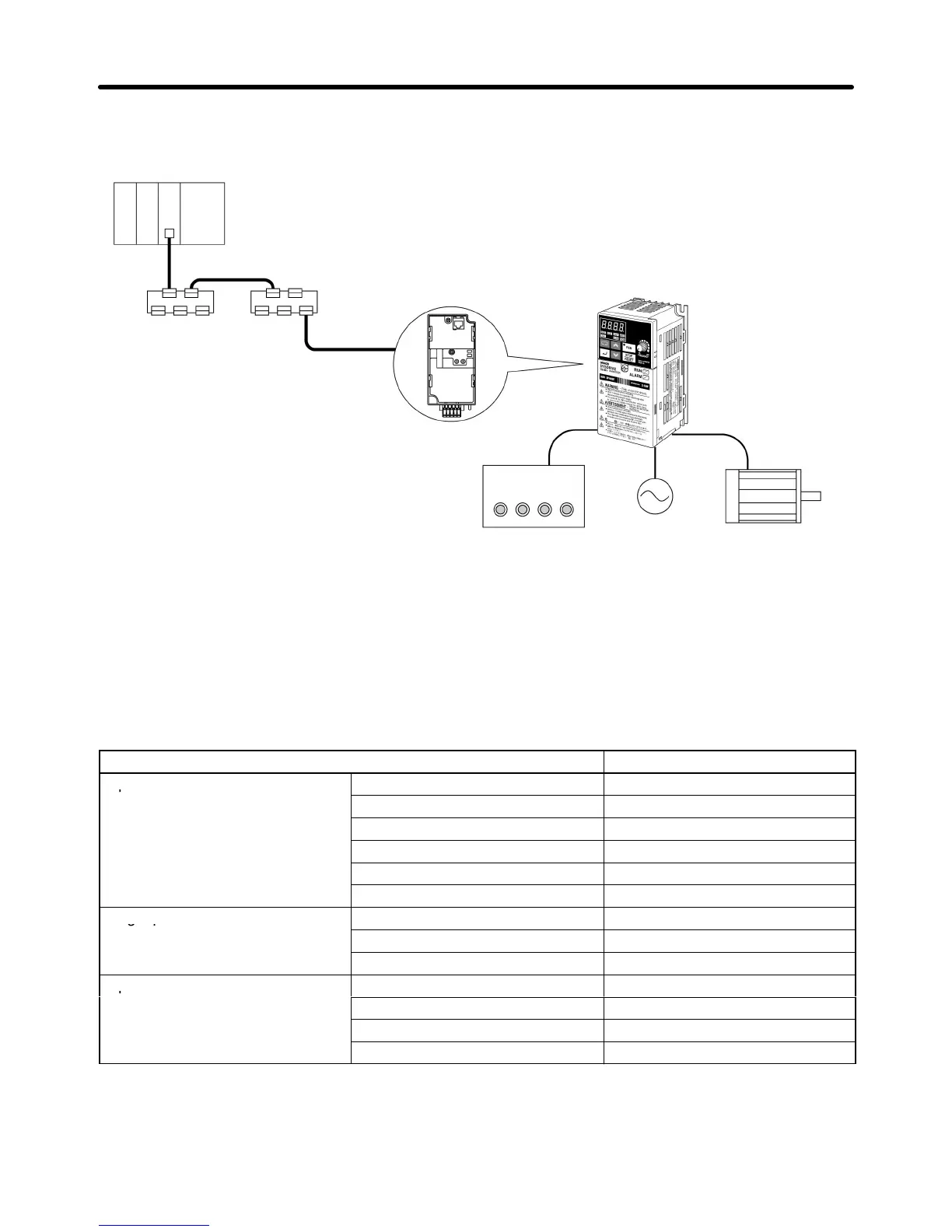

H Connection Example
CS/CJ DeviceNet Unit
3G3MV-PDRT2 DeviceNet
Communications Unit
3G3MV-series
Inverter
Switch
RU
N
FW
D
RE
V
STO
P
Power
Supply
Motor
9-2-3 Fan Unit
H 3G3IV-PFANj
The Fan Unit is a replacement for the presently installed cooling fan of the Inverter. Replace the cooling
fan if it has reached the end of its service life or a warning of cooling fan failure (FAN) is indicated.
Inverter Fan Unit
3-phase 200 V AC
3G3MV-A2007 3G3IV-PFAN2007
p
3G3MV-A2015 3G3IV-PFAN2015M
3G3MV-A2022 3G3IV-PFAN2022
3G3MV-A2037 3G3IV-PFAN2037
3G3MV-A2055 3G3IV-PFAN2037 (2 parts)
3G3MV-A2075 3G3IV-PFAN2037 (2 parts)
Single-phase 200 V AC
3G3MV-AB015 3G3IV-PFAN2015M
gp
3G3MV-AB022 3G3IV-PFAN2037
3G3MV-AB037 3G3IV-PFAN2037 (2 parts)
3-phase 400 V AC
3G3MV-A4015/-A4022 3G3IV-PFAN2015M
p
3G3MV-A4037 3G3IV-PFAN2037
3G3MV-A4055 3G3IV-PFAN2037 (2 parts)
3G3MV-A4075 3G3IV-PFAN2037 (2 parts)
H Replacement Method
Refer to 8-3 Maintenance and Inspection.
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
