9-24

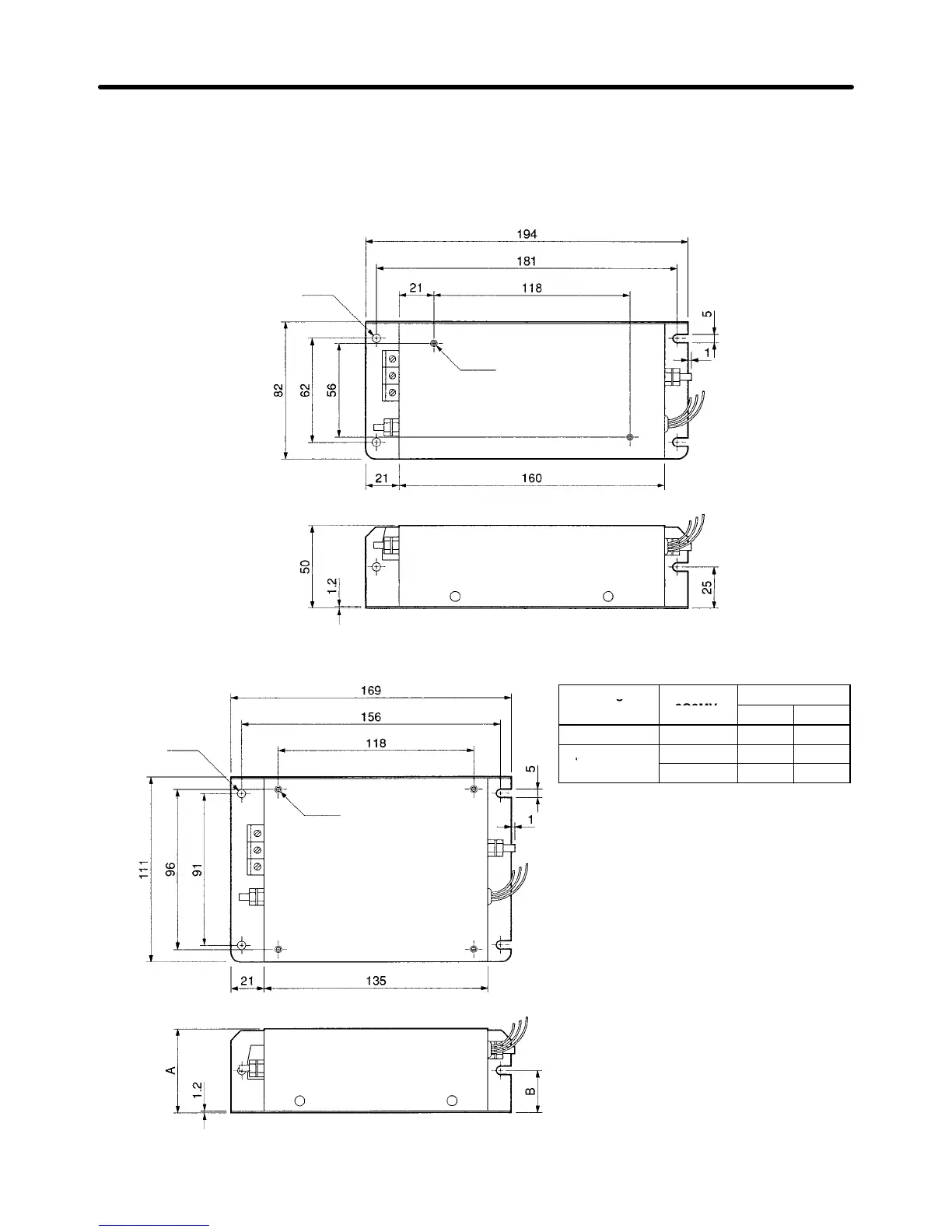

H External Dimensions
Noise Filters for 3-phase 200/400-V AC Inverter Models
D 3G3MV-PRS2010V
Two, M4 holes
(for Inverter mounting use)
Three, 5-dia. holes
D 3G3MV-PRS2020V/-PRS3005V/PRS3010V
Voltage Model
3G3MV
Dimension (mm)
g
3G3MV-
A B
3-phase 200 V PRS2020V 50 25
3-phase 400 V
PRS3005V 45 22
p
PRS3010V 45 22
Specifications
Chapter 9
Four, M4 holes
(for Inverter mounting use)
Three, 5-dia. holes
