Omron SYSDRIVE 3G3MV SERIES User Manual

9-31

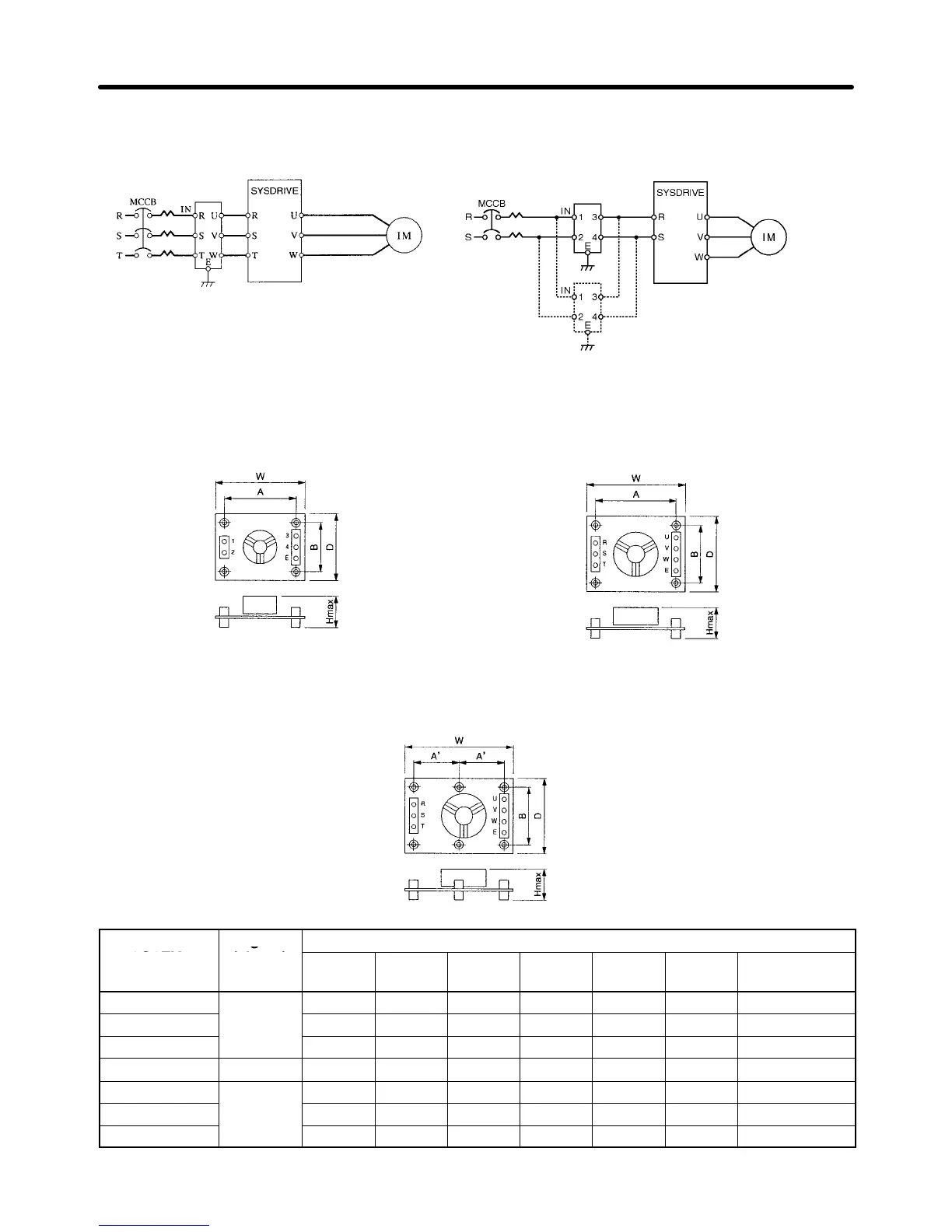

H Connection Example
3-phase input Single-phase input
Noise filter
Noise filter
Note The dotted lines indicate
wiring for parallel connec-
tion.
H Dimensions
Dimensions 1 (Single-phase Input) Dimensions 2 (Three-phase Input)
Dimensions 3 (Three-phase Input)
Model
3G3EV
Figure
(b )
Dimension (mm)
3G3EV-
g
(above)
W D H max. A A’ B Mounting
screw
PLNFD2103DY
2
120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2153DY 120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2203DY 170 90 70 158 --- 78 M4 × 4, 20 mm
PLNFD2303DY 3 170 110 70 --- 79 98 M4 × 6, 20 mm
PLNFB2102DY
1
120 80 50 108 --- 68 M4 × 4, 20 mm
PLNFB2152DY 120 80 50 108 --- 68 M4 × 4, 20 mm
PLNFB2202DY 120 80 50 108 --- 68 M4 × 4, 20 mm
Specifications
Chapter 9

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
