6-30

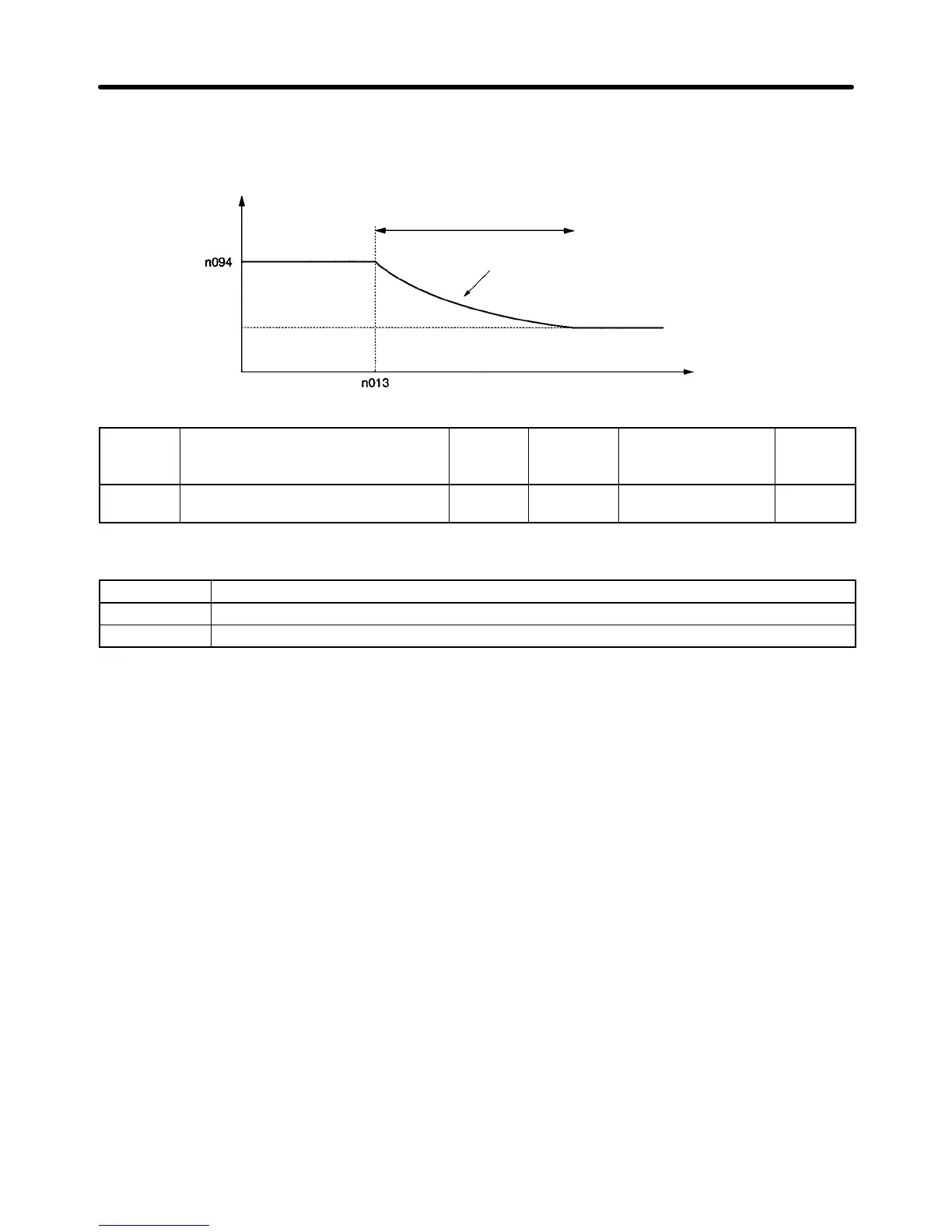

If n115 is set to 1, the stall prevention level will be suppressed as shown below. When using frequen-
cies exceeding the maximum voltage frequency, set n 115 to 1.
Operation level
Automatic Suppression of Stall Prevention Level (n115 Set to 1)
Constant output range
Operating level: n094 x
(Max. voltage
frequency/output frequency)
Max. voltage frequency (FA)
Output frequency
n116
Stall Prevention
Acceleration/Deceleration Time
Setting
Register 0174 Hex Changes during
operation
No
Setting
range
0, 1 Unit of
setting
1 Set Values 0
Set Values
Value Description
0 Accelerates or decelerates at acceleration/deceleration time 1 or 2 presently selected.
1 Accelerates or decelerates at acceleration/deceleration time 2 set in n021 and n022.
Select the acceleration/deceleration time with the stall prevention function operating function
enabled.
To accelerate or decelerate quicker or slower than normal, set 1 in n116 and the acceleration time in
n021 (acceleration time 2) and deceleration time in n022 (deceleration time 2) for stall prevention use.
Advanced Operation Chapter 6
