Omron SYSDRIVE 3G3MV SERIES User Manual

6-46
n100
UP/DOWN Frequency Memory Register 0164 Hex Changes during
operation
No
Setting
range
0, 1 Unit of
setting
1 Default setting 0
Set Values
Value Description
0 The frequency on hold is not retained.
1 The frequency on hold for 5 s or more is retailed.

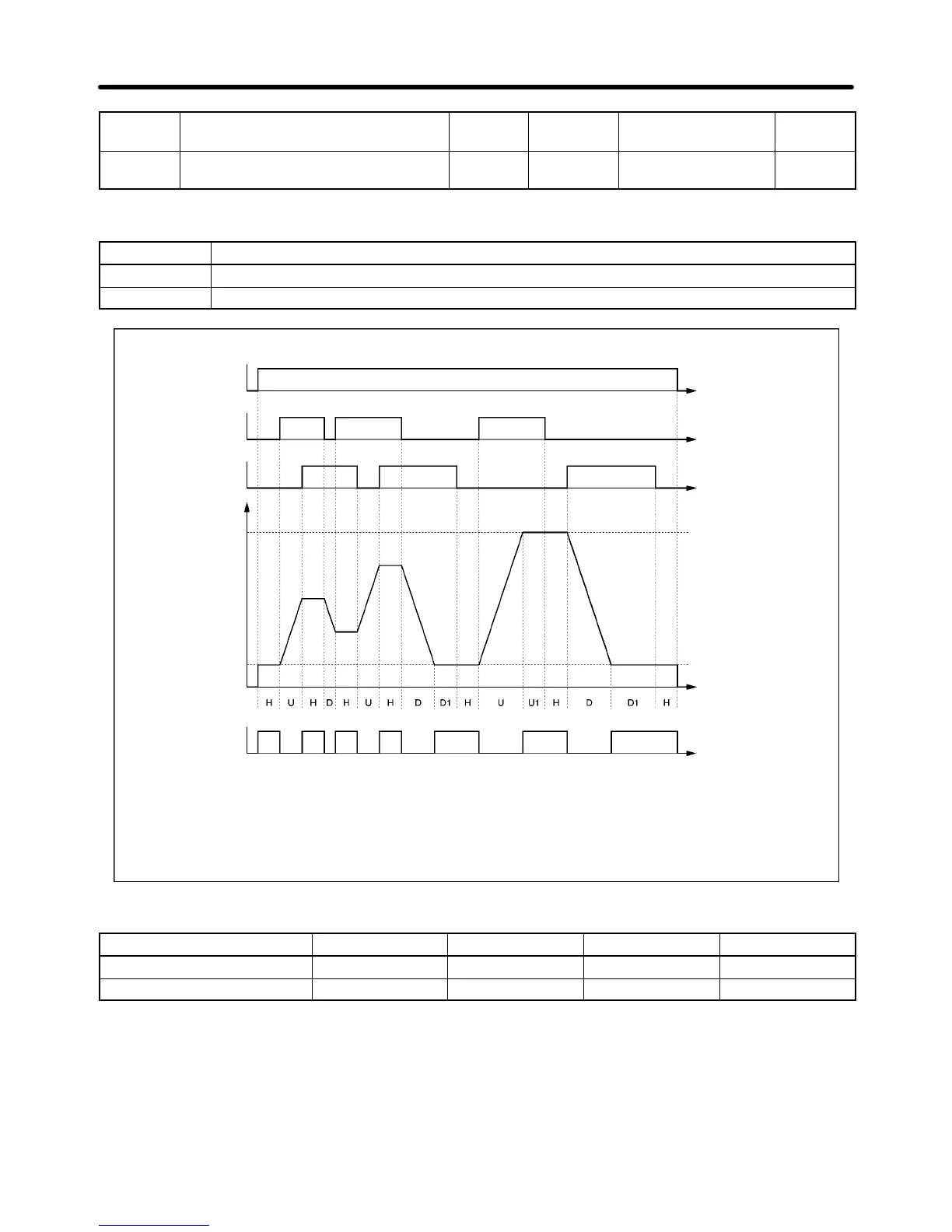

Operation of UP/DOWN Function
RUN command
(Forward rotation)
UP command
(S5)
DOWN command
(S6)
Output frequency
Upper limit
Lower limit
Status
Frequency
detection
Time
Note Status
U: UP (acceleration)
D: DOWN (deceleration)
H: Hold
U1: Frequency acceleration restricted by upper limit.
D1: Frequency deceleration restricted by lower limit.
Time
Time
Time
Time
• The following ON/OFF combinations of UP and DOWN commands are possible.
Command Acceleration Deceleration Hold Hold
S6 (UP command) ON OFF OFF ON
S7 (DOWN command) OFF ON OFF ON
• With the UP/DOWN function used, the output frequency has the following restrictions for upper and
lower limits.
Upper limit: The maximum frequency in n011 or the frequency reference upper limit in n033,
whichever is smaller.
Lower limit: The minimum output frequency in n016 or frequency reference lower limit in n034,
whichever is smaller.
Advanced Operation Chapter 6

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
