Omron SYSDRIVE 3G3MV SERIES - Page 45

2-13

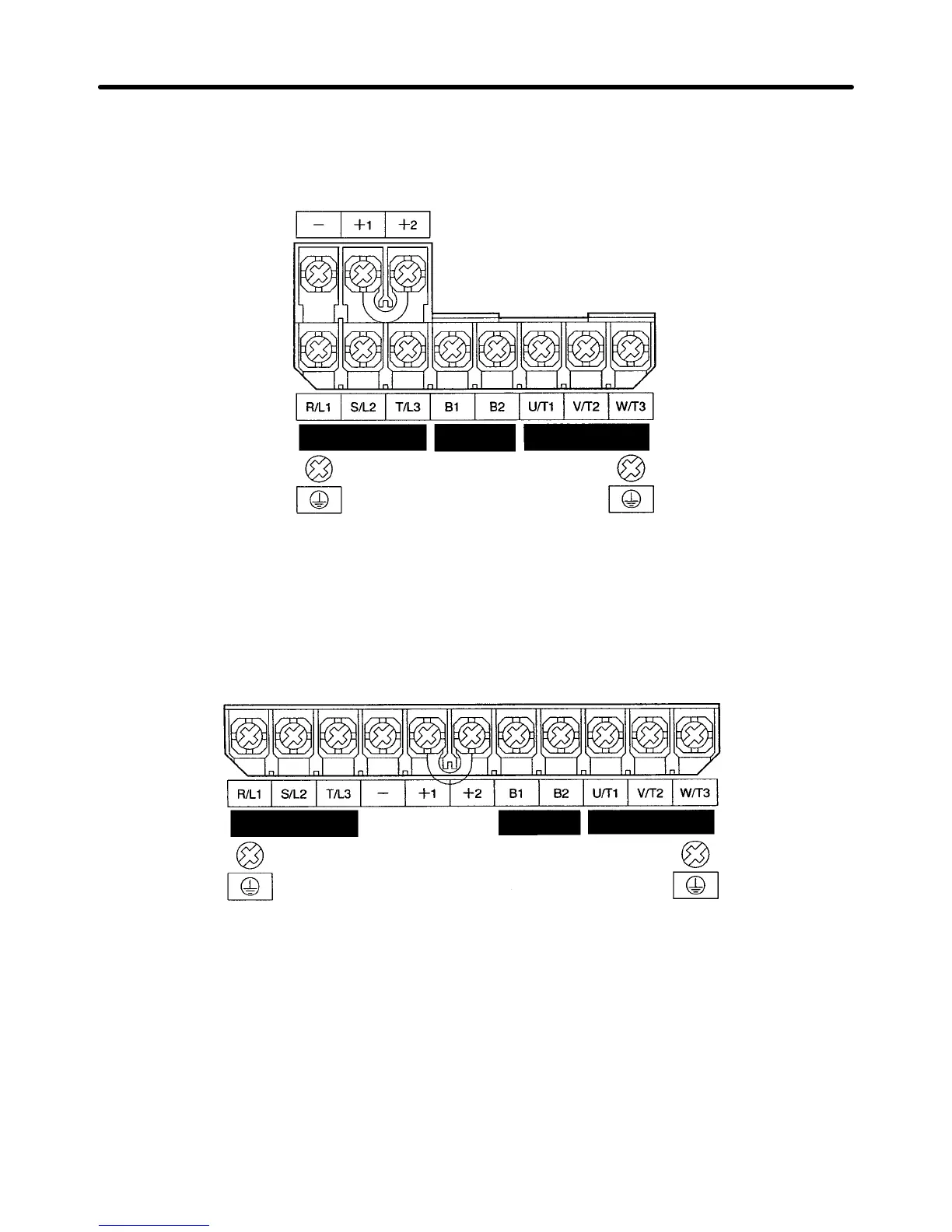

D 3G3MV-A2015 to 3G3MV-A2022 (1.5 to 2.2 kW): 3-phase 200-V AC Input
3G3MV-AB007 to 3G3MV-AB015 (0.75 to 1.5 kW):
Single-phase 200-V AC Input
3G3MV-A4002 to 3G3MV-A4022 (0.2 to 2.2 kW): 3-phase 400-V AC Input
Power supply input
Motor output
Braking
Resistor
Note For single-phase input, connect R/L1 and S/L2.
D 3G3MV-A2037 to -A2075 (3.7 to 7.5 kW): 3-phase 200-V AC Input
3G3MV-AB022 to 3G3MV-AB037 (2.2 to 3.7 kW):
Single-phase 200-V AC Input
3G3MV-A4037 to -A4075 (3.7 to 7.5 kW): 3-phase 400-V AC Input
Power supply input
Motor output
Braking
Resistor
Note For single-phase input, connect R/L1 and S/L2.
Design Chapter 2
