Omron V1000 User Manual

Run Command
Output Frequency
ON OFF
DC Injection Braking
Time at Stop
(b2-04)*
Minimum Baseblock Time ( L2-03)
DC Braking
Current (b2-02)
DC Injection Braking
Motor Speed

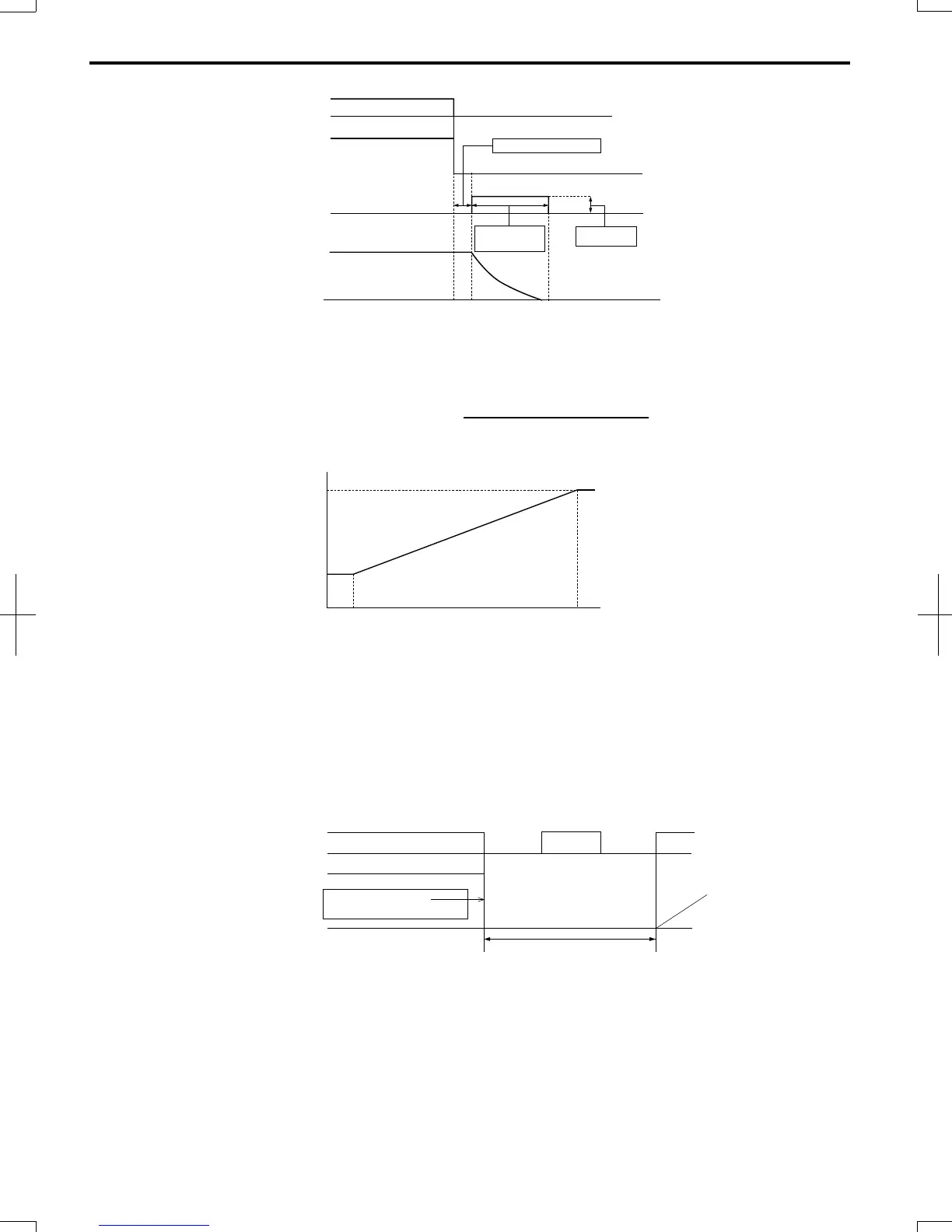

Figure 5.6 DC Injection Braking to Stop
The time for DC Injection Braking is determined by the value set to b2-04 and by the output frequency at the time the Run
command is removed. It can be calculated by:
=
DC Injection brake time
b2-04 • 10 • Output frequency
Max. output frequency (E1-04)
Output frequency when
Stop command was entered
100%
(Maximum output
frequency)
10%
DC Injection braking time
b2-04× 10
b2-04
Figure 5.7 DC Injection Braking Time Depending on Output Frequency
Note: If an overcurrent (oC) fault occurs during DC Injection Braking to stop, lengthen the minimum baseblock time (L2-03) until the fault no
longer occurs.
Setting 3: Coast to Stop with Timer
When the Run command is removed, the drive will turn off its output and the motor will coast to stop. If a Run command
is input before the operation wait time t expires, the drive will not rotate the motor and the Run command will need to be
cycled before operation can occur.
Operation Wait Time t
Run Command
Output Frequency
ON ON ONOFF OFF
Drive output voltage
interrupted
Figure 5.8 Coast to Stop with Timer
The operation wait time t is determined by the output frequency when the Run command is removed and by the active
deceleration time.
5.2
b: Application
106
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
