Omron V1000 User Manual

d1-04
d1-01
(A1)
d1-02
(A2)
d1-03
d1-05
d1-06
d1-07
d1-17
d1-12
d1-13
d1-14
d1-15
d1-16
Multi-step Speed Ref. 2
Multi-step Speed Ref. 3
Jog Reference
Multi-step Speed Ref. 1
Multi-step Speed Ref. 4
Frequency
reference
Time
FWD (REV) Run/Stop
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON

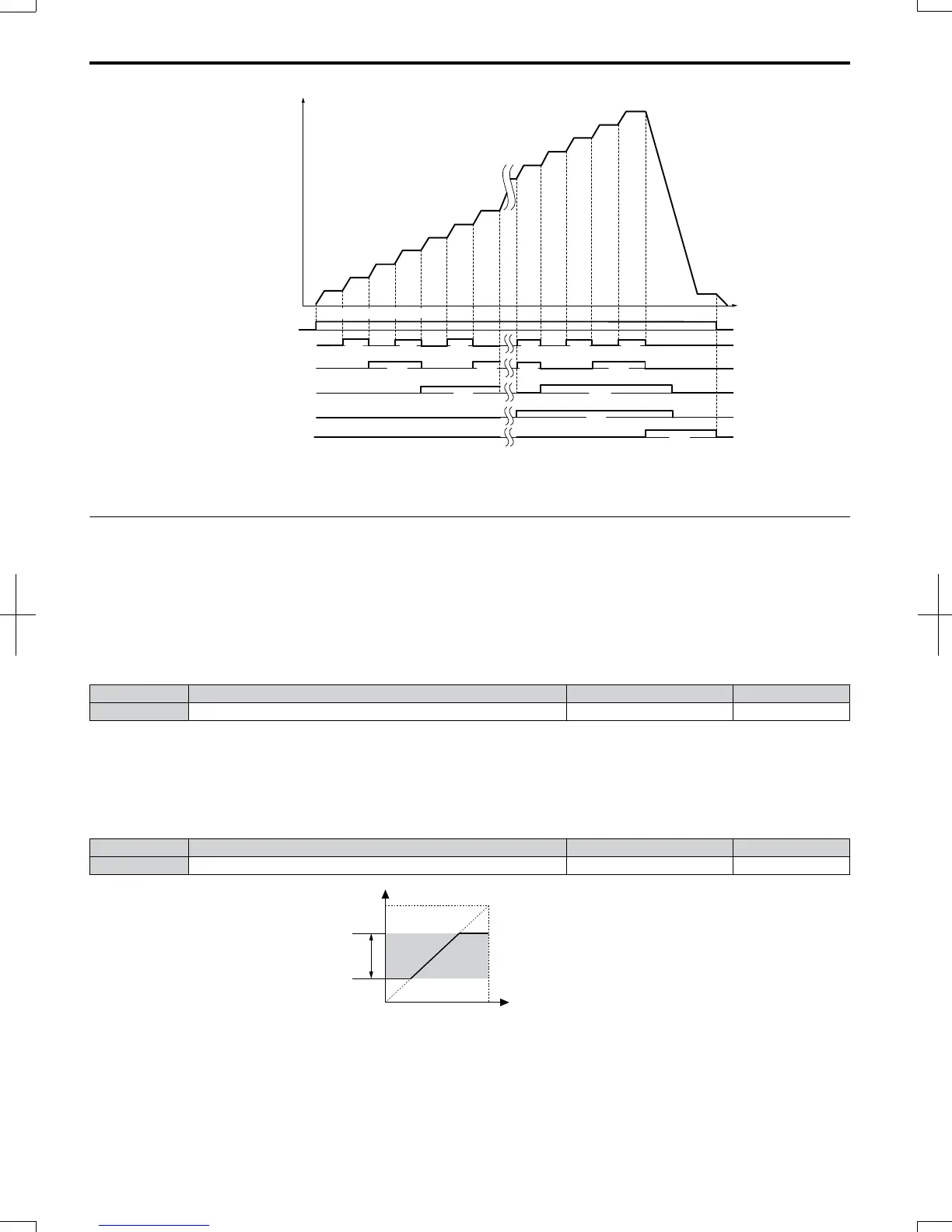

Figure 5.31 Preset Reference Timing Diagram
u
d2: Frequency Upper/Lower Limits
By entering upper or lower frequency limits, the drive programmer can prevent operation of the drive above or below
levels that may cause resonance and or equipment damage.
n
d2-01: Frequency Reference Upper Limit
Sets the maximum frequency reference as a percentage of the maximum output frequency. This limit applies to all frequency
references.
Even if the frequency reference is set to a higher value, the drive internal frequency reference will not exceed this value.
No. Parameter Name Setting Range Default
d2-01 Frequency Reference Upper Limit 0.0 to 110.0% 100.0%
n
d2-02: Frequency Reference Lower Limit
Sets the minimum frequency reference as a percentage of the maximum output frequency. This limit applies to all frequency
references.
If a lower reference than this value is input, the drive will run at the d2-02 level. If the drive is started with a lower reference
than d2-02, it will accelerate up to d2-02.
No. Parameter Name Setting Range Default
d2-02 Frequency Reference Lower Limit 0.0 to 110.0% 0.0%
Internal frequency
reference
d2-01
Operating
range
Frequency Reference Upper Limit
Set frequency reference
Frequency Reference Lower Limit
d2-02
Figure 5.32 Frequency Reference: Upper and Lower Limits
n
d2-03: Master Speed Reference Lower Limit
Unlike frequency reference lower limit (d2-02) which will affect the frequency reference no matter where it is sourced
from (i.e., analog input, preset speed, Jog speed, etc.), the master speed lower limit (d2-03) sets a lower limit that will only
affect the analog input (terminals A1 and A2) that is the active master speed frequency.
5.4
d: Reference Settings
136
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
