Omron V1000 User Manual

3.10 MEMOBUS/Modbus Termination
DIP switch S2 controls the terminal resistance as shown in . The OFF position is the default of the terminating resistor
switch for MEMOBUS/Modbus communications. Turn the terminal resistor switch ON when the drive is the last drive in
a series of slave drives.
Table 3.15 MEMOBUS/Modbus Switch Settings
S2 Position Description
ON Internal terminal resistance ON
OFF Internal terminal resistance OFF (no terminal resistance); default setting
OFF ON
DIP Switch S2

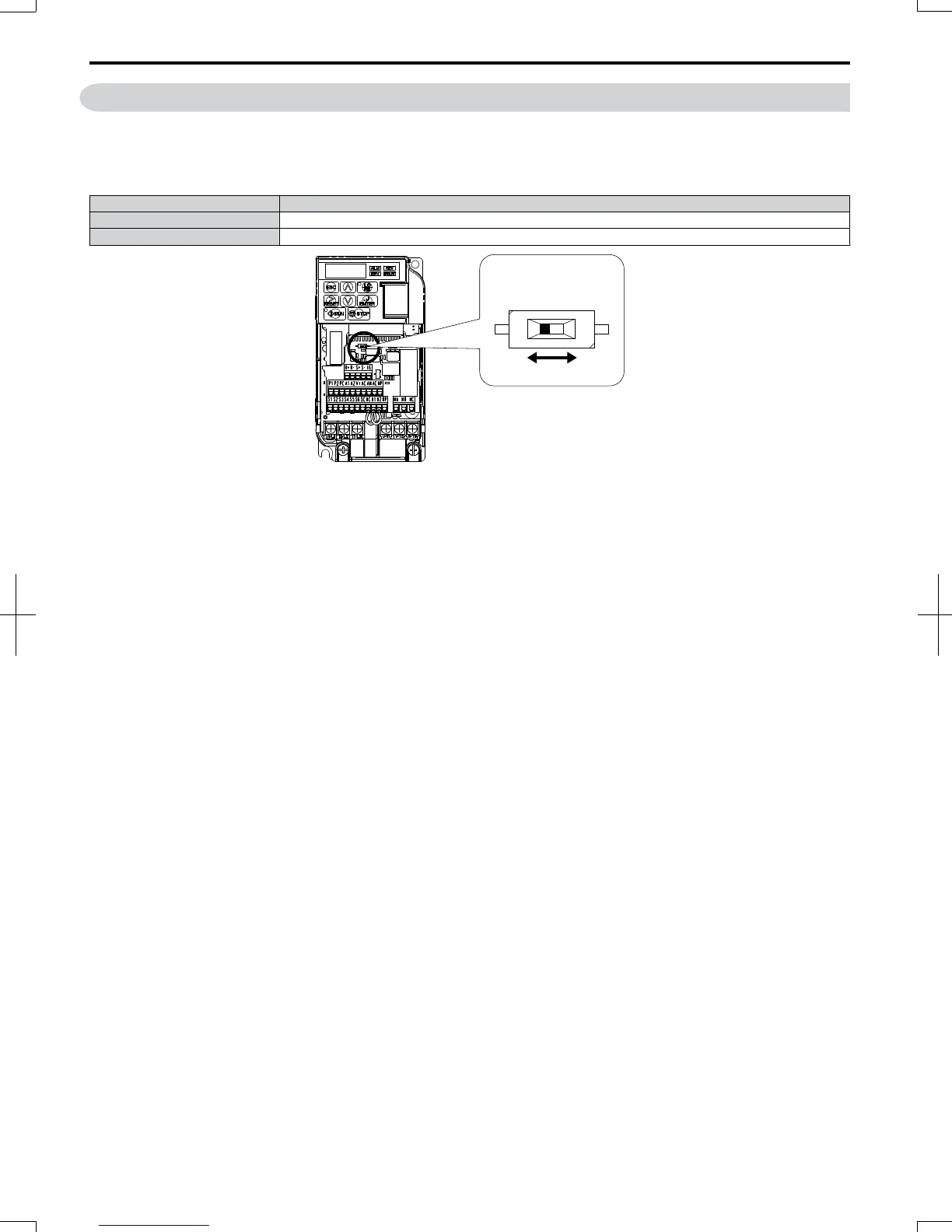

Figure 3.26 DIP Switch S2
Note: Refer to the MEMOBUS/Modbus communications manual for details on MEMOBUS/Modbus.
3.10 MEMOBUS/Modbus Termination
58
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
