Omron V1000 User Manual

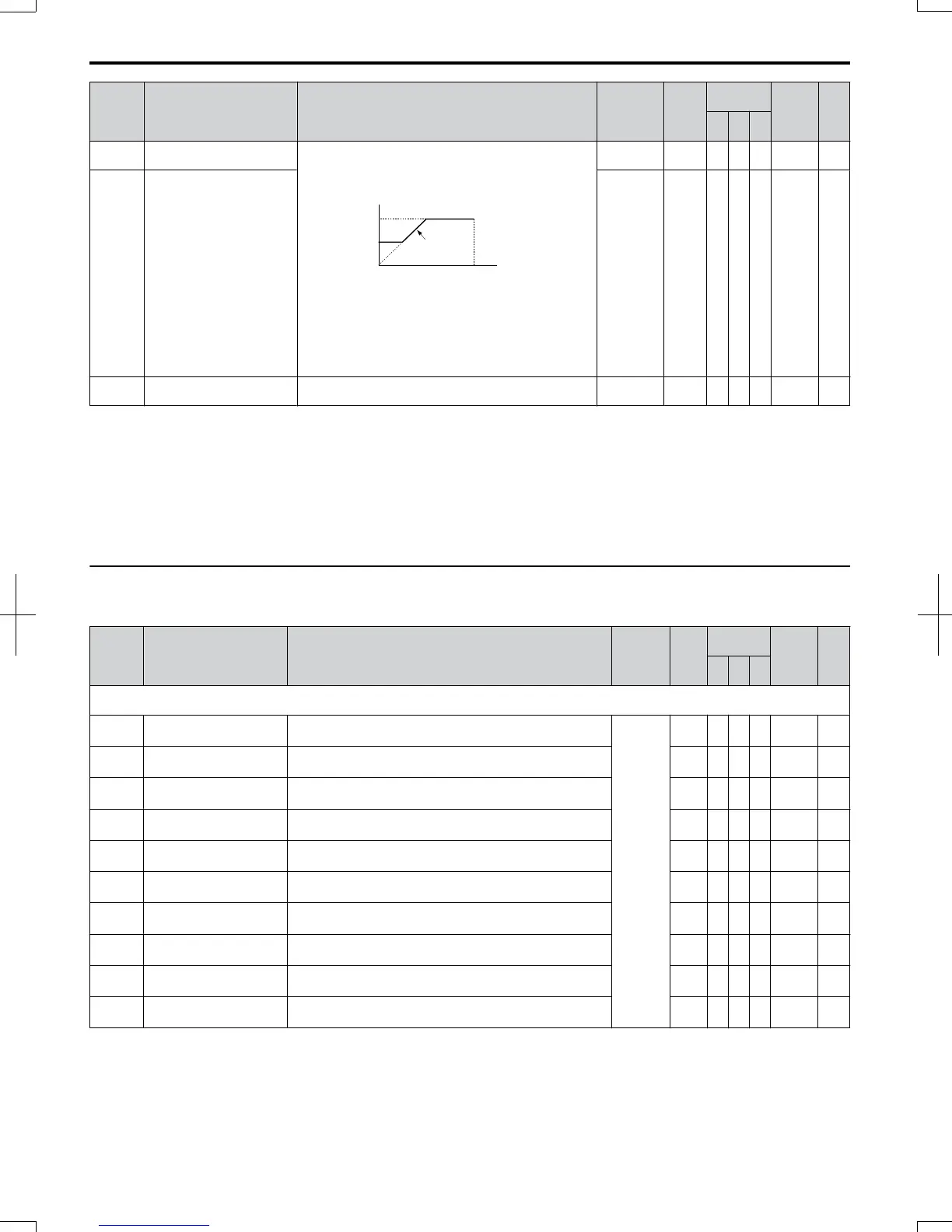

No. Name Description Range Def.
Control
Mode
Addr.
Hex
Pg.
V/f
O
LV
P
M
C6-03
Carrier Frequency Upper
Limit
Open Loop Vector: C6-03 defines the fixed carrier
frequency if C6-02 = F.
V/f Control: C6-03 and C6-04 set upper and lower limits
for the carrier frequency.
carrier frequency
E1-04
max output
frequency
output frequency
× (C6-05) × K
output
frequency
C6-03
C6-04
The coefficient K depends on C6-03:
C6-03 ≥ 10.0 kHz: K = 3
10.0 kHz > C6-03 ≥ 5.0 kHz: K = 2
5.0 kHz > C6-03: K = 1
When C6-05 ≤ 6, C6-04 is disabled (makes the carrier
frequency C6-03 value).
1.0 to 15.0
<8>
A A A 225 132
C6-04
Carrier Frequency Lower
Limit
0.4 to 15.0
<8>
A - - 226 132
C6-05
Carrier Frequency
Proportional Gain
Sets the relationship of output frequency to carrier
frequency when C6-02 = F.
00 to 99
<8>
A - - 227 132
<1> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 2-OLV control.
<2> Default setting value is dependent on parameter A1-02, Control Method Selection. The value shown is for A1-02 = 0-V/f Control.
<3> Default setting value is dependent on parameters o2-04, Drive Model Selection, A1-02, Control Method Selection and C6-01, Normal/Heavy
Duty selection.
<6> Setting range value is dependent on parameter C1-10, Accel/Decel Time Setting Units. When C1-10 = 0 (units of 0.01 seconds), the setting
range becomes 0.00 to 600.00 seconds.
<8> Default setting value is dependent on parameter C6-02, Carrier Frequency Selection.
<22> Parameter can be changed during run.
<23> Parameter cannot be changed during run when parameter A1-02 = 5-PM OLV Control.
u
d: References
Reference parameters are used to set the various frequency reference values during operation.
No. Name Description Range Def.
Control
Mode
Addr.
Hex
Pg.
V/f
O
LV
P
M
d1: Frequency Reference
Use d1 parameters to configure the drive frequency reference.
d1-01
<22>
Frequency Reference 1 Frequency reference
0.00 to
400.00 Hz
<11> <19>
0.00
Hz
S S S 280 135
d1-02
<22>
Frequency Reference 2
Frequency reference when digital input "Multi-Step Speed
Reference 1" (H1- = 3) is on.
0.00
Hz
S S S 281 135
d1-03
<22>
Frequency Reference 3
Frequency reference when digital input "Multi-Step Speed
Reference 2” (H1- = 4) is on.
0.00
Hz
S S S 282 135
d1-04
<22>
Frequency Reference 4
Frequency reference when digital inputs "Multi-Step Speed
Reference 1, 2" (H1- = 3 and 4) are on.
0.00
Hz
S S S 283 135
d1-05
<22>
Frequency Reference 5
Frequency reference when digital input "Multi-Step Speed
Reference 3" (H1- = 5) is on.
0.00
Hz
A A A 284 135
d1-06
<22>
Frequency Reference 6
Frequency reference when digital inputs "Multi-Step Speed
Reference 1, 3 " (H1- = 3 and 5) are on.
0.00
Hz
A A A 285 135
d1-07
<22>
Frequency Reference 7
Frequency reference when digital inputs "Multi-Step Speed
Reference 2, 3" (H1- = 4 and 5) are on.
0.00
Hz
A A A 286 135
d1-08
<22>
Frequency Reference 8
Frequency reference when multi-function input "Multi-Step
speed reference 1, 2, 3" (H1- = 3, 4, 5) are on.
0.00
Hz
A A A 287 135
d1-09
<22>
Frequency Reference 9
Frequency reference when multi-function input "Multi-Step
Speed Reference 4" (H1-= 32) is on.
0.00
Hz
A A A 288 135
d1-10
<22>
Frequency Reference 10
Frequency reference when digital input "Multi-Step Speed
Reference 1, 4" (H1- = 3 and 32) are on.
0.00
Hz
A A A 28B 135
B.2 Parameter Table
306
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
