Subchart A3: Operation with Permanent Magnet Motors

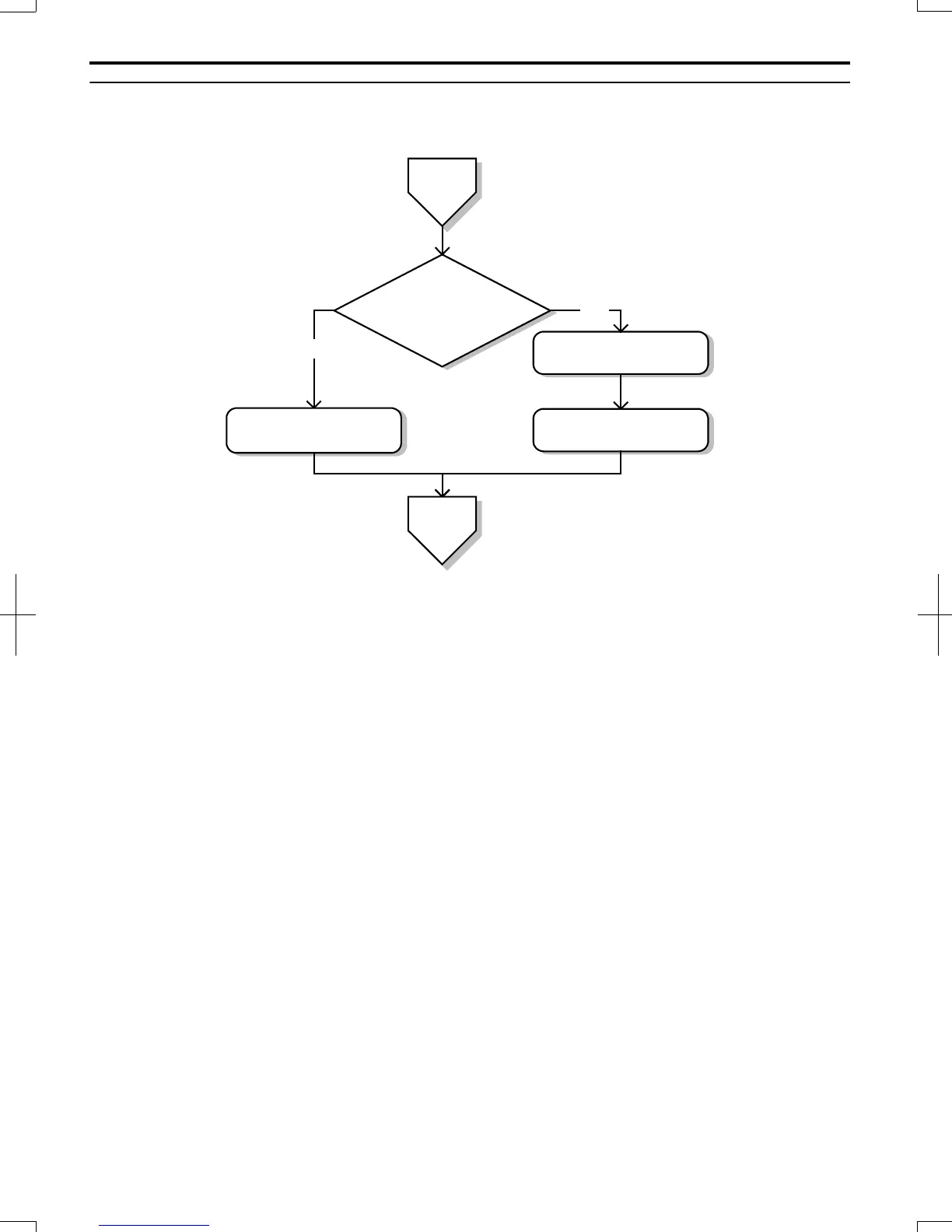

Figure 4.9, Flowchart A3, describes tuning for PM motors in Open Loop Vector Control. PM motors can be used for
energy savings in reduced or variable torque applications.
YES
NO
From
Flowchart
A
Set the motor code to
parameter E5-01
Return to
Flowchart
A
Motorcode is known ?
For parameter E5-01
(for Yaskawa PM Motors)
Enter “FFFF” to parameter
E5-01
Enter the motor data into
parameters E5-02 to E5-24
Figure 4.9 Operation with Permanent Magnet Motors
4.4 Start-up Flowcharts
80
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23
