Omron V1000 User Manual

u
IP20/NEMA Type 1 Enclosure
n
Three-Phase AC200 V VZA25P5F ~ VZA2015F
Three-Phase AC400 V VZA45P5F ~ VZA4015F
C
B
A
D
E
H
I
O
K
M
N
L
F
G
J
A – Fan cover
B – Cooling fan Refer to Drive Cooling Fans on
page 267
C – Mounting Hole
D – Heatsink
E – Cable cover
F – Front cover screws
G – Front cover
H – Terminal board Refer to Control Circuit
Terminal Block Functions on page 50
I – Terminal cover
J – Comm port
K – LED operator Refer to Using the Digital LED
Operator on page 66
L – Case

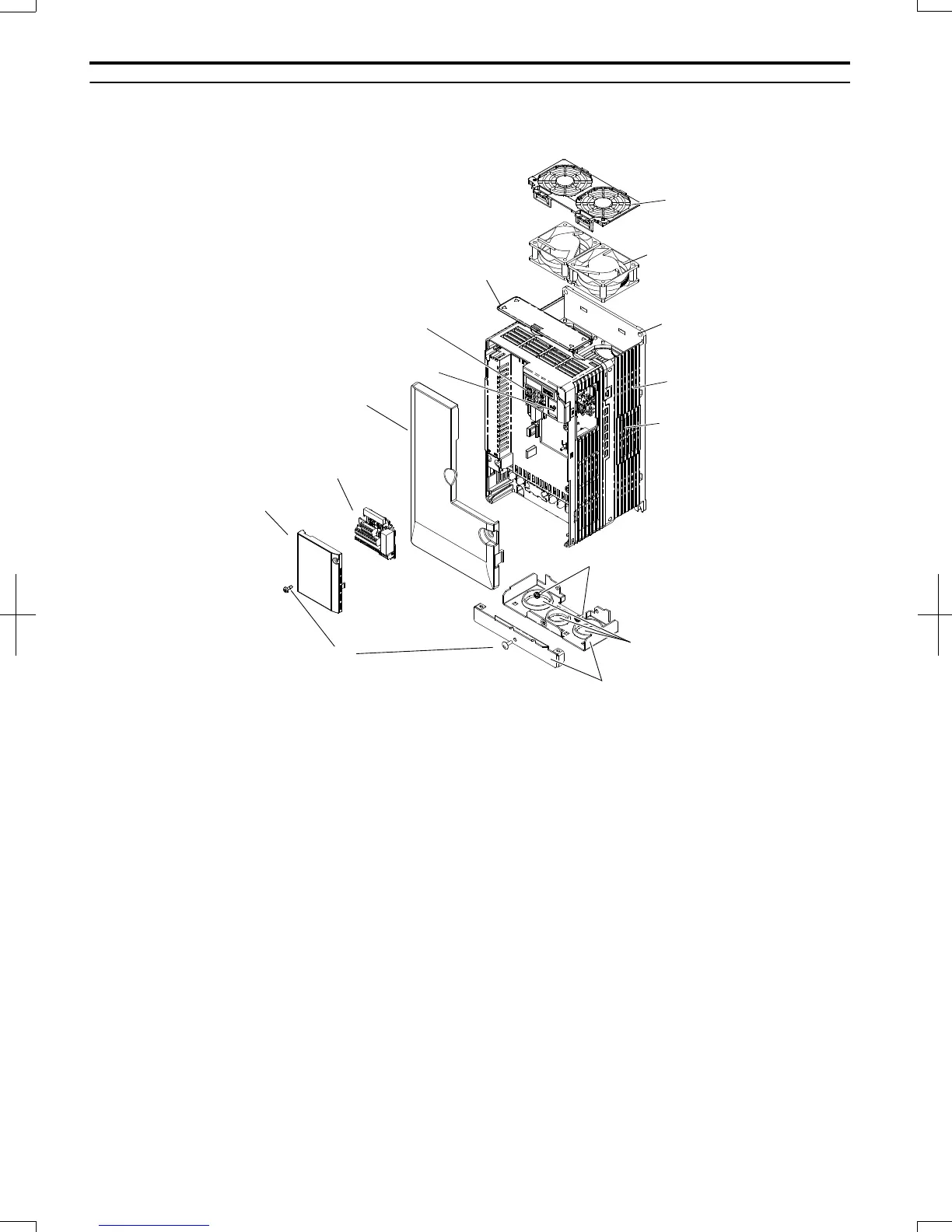

Figure 1.4 Exploded view of IP20/NEMA Type 1 Components Three-Phase AC400 V VZA45P5F
1.4 Component Names
24
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:22

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
