Omron V1000 User Manual

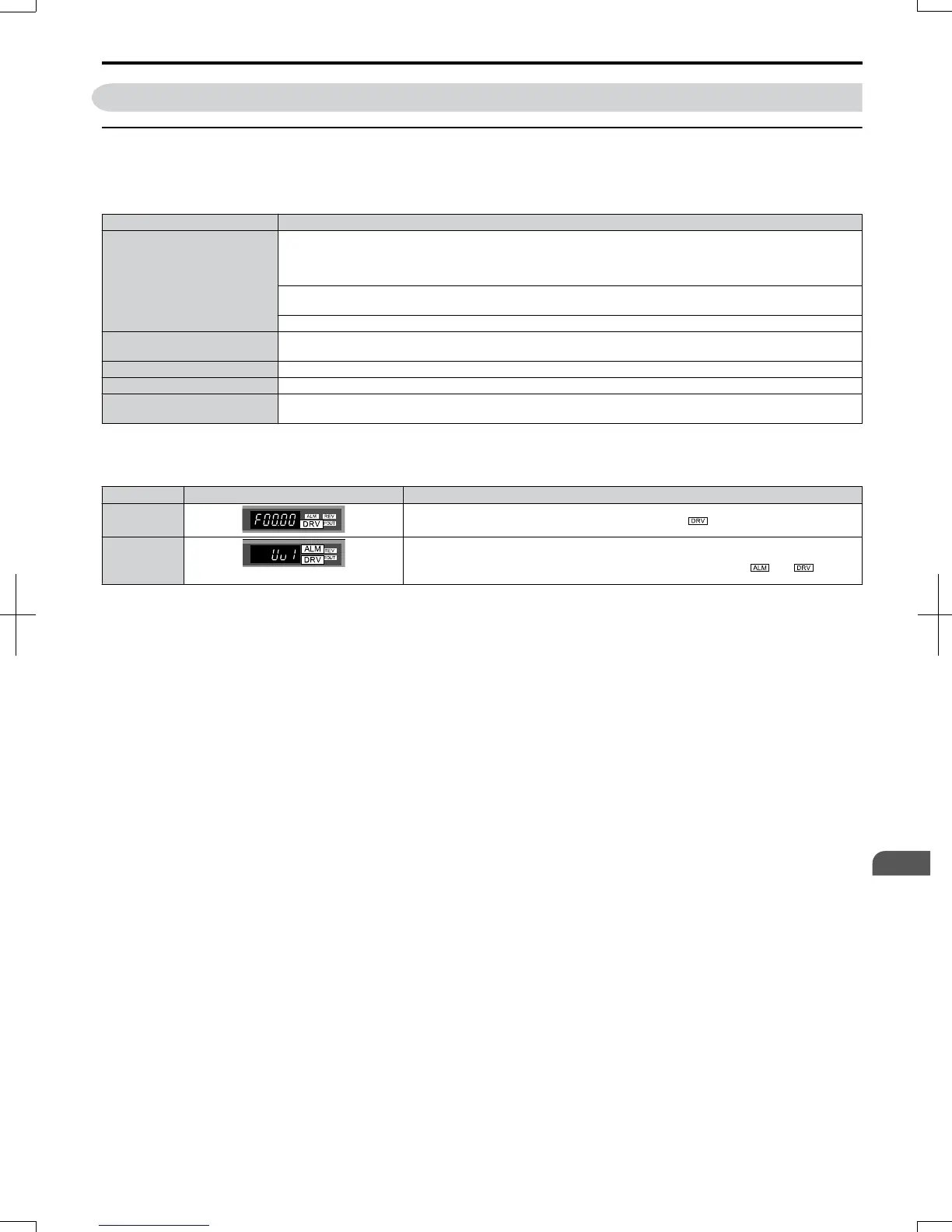

4.5 Powering Up the Drive
u
Powering Up the Drive and Operation Status Display
n
Powering Up the Drive
Review the following checklist before turning the power on.
Item to Check Description
Power supply voltage
Ensure the power supply voltage is correct:
200 V class: single-phase 200 to 240 Vac 50/60 Hz
200 V class: 3-phase 200 to 240 Vac 50/60 Hz
400 V class: 3-phase 380 to 480 Vac 50/60 Hz
Properly wire the power supply input terminals (R/L1, S/L2, T/L3).
(for single-phase 200 V class models, wire only R/L1 and S/L2)
Check for proper grounding of drive and motor.
Drive output terminals
and motor terminals
Properly wire drive output terminals U/T1, V/T2, and W/T3 with motor terminals U, V, and W.
Control circuit terminals Check control circuit terminal connections.
Drive control terminal status Open all control circuit terminals (off).
Status of the load
and connected machinery
Uncouple the motor from the load.
n
Status Display
When the power supply to the drive is turned on, the LED operator lights will appear as follows:
No. Name Description
Normal
Operation
STOP
The data display area displays the frequency reference. is lit.
Fault
STOP
Main circuit low voltage (ex)
Data displayed varies by the type of fault. Refer to Fault Displays, Causes, and Possible
Solutions on page 230 for more information and possible solution. and are lit.
4.5 Powering Up the Drive
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
81
4
Start-Up Programming & Operation
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
