Control Circuit
Terminal
Select digit
to edit
Parameter Display
LED Operator
Frequency reference
appears when powered up
Parameter Display
<1> Pressing ENTER from APPL navigates to the Application
Preset setting display. When the set value is changed, the
parameter is changed to the optimum value for each
application. It is set to 0 (General-purpose) prior to shipment.
<2> Move to the right to change parameter settings. Scroll
down to view and check settings in the Setup Mode.
<3> To return to the Top Menu, press . To view or edit o view or edit
other parameters, press and .
Press until
appears
<2>
<1>
<3>

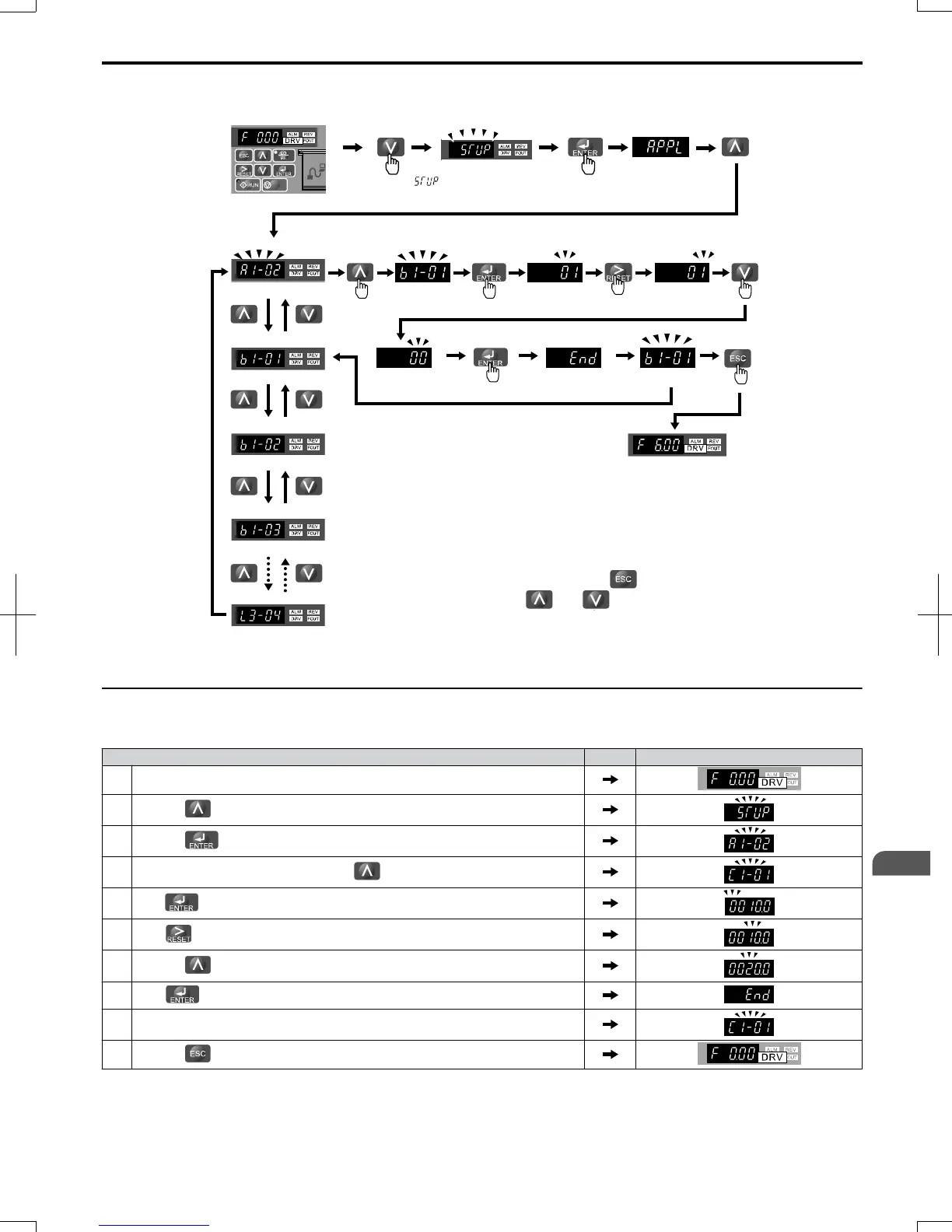

Figure 4.5 Setup Group Example
u
Changing Parameter Settings or Values
This example explains changing C1-01 (Acceleration Time 1) from 10.0 seconds (default) to 20.0 seconds.
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press the key until the Setup Mode Screen appears.
3.
Press the key to view the parameter setting display.
4.
Scroll through parameters by pressing the key until C1-01 appears.
5.
Press to view the current setting value (10.0). (Number farthest to the left flashes)
6.
Press until the desired number is selected. (“1” flashes)
7.
Press the key and enter 0020.0.
8.
Press and the drive will confirm the change.
9. The display automatically returns to the screen shown in Step 4.
10.
Press the key until back at the initial display.
4.3 The Drive and Programming Modes
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
73
4
Start-Up Programming
& Operation
7/16/2008-13:23
