Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right

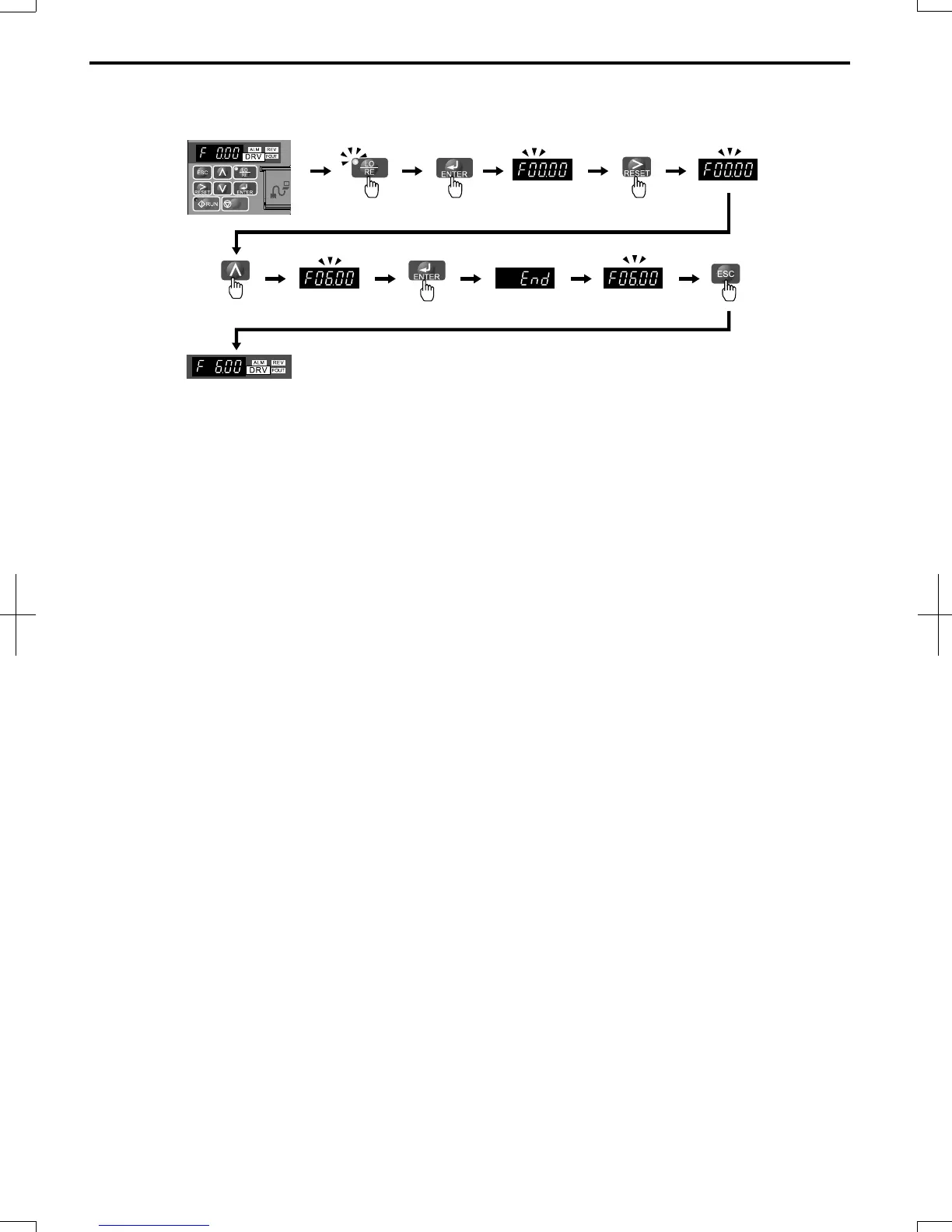

Figure 4.4 Setting the Frequency Reference while in Drive Mode
Note: The drive will not accept a frequency reference set value unless the ENTER key is pressed after the frequency reference is entered. This
feature prevents accidental setting of the frequency reference. By setting o2-05 (Frequency Reference Setting Method Selection) to 1
(Enabled), the drive will accept the frequency reference while it is being adjusted on the digital operator.
n
Programming Mode Details
The following actions are possible in the programming mode:
• Verify Function: Verify parameter setting changes from original default values.
• Setup Group: Access a list of commonly used parameters to simplify setup.
• Parameter Setting Mode: Access and edit all parameter settings.
• Auto-Tuning: Automatically calculates and sets motor parameters for Open Loop or PM Vector control to optimize the
drive for the motor characteristics.
The Setup Group within the Programming Mode
In Setup Group, the user can access the minimum group of parameters required to operate the application.
Note: Setup Group parameters are listed in Table 4.4.
Note: Pressing ENTER from APPL navigates to the Application Preset setting display. When the set value is changed, the parameter is changed
to the optimum value for each application. It is set to 0 (General-purpose) prior to shipment. Refer to Application Selection on page
82.
Figure 4.5 illustrates the keys to press to enter the Setup Group.
In this example, the source of the frequency reference is changed from the control circuit terminals to the LED Operator
(i.e., b1-01 is changed from 1 to 0).
4.3 The Drive and Programming Modes
72
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23
