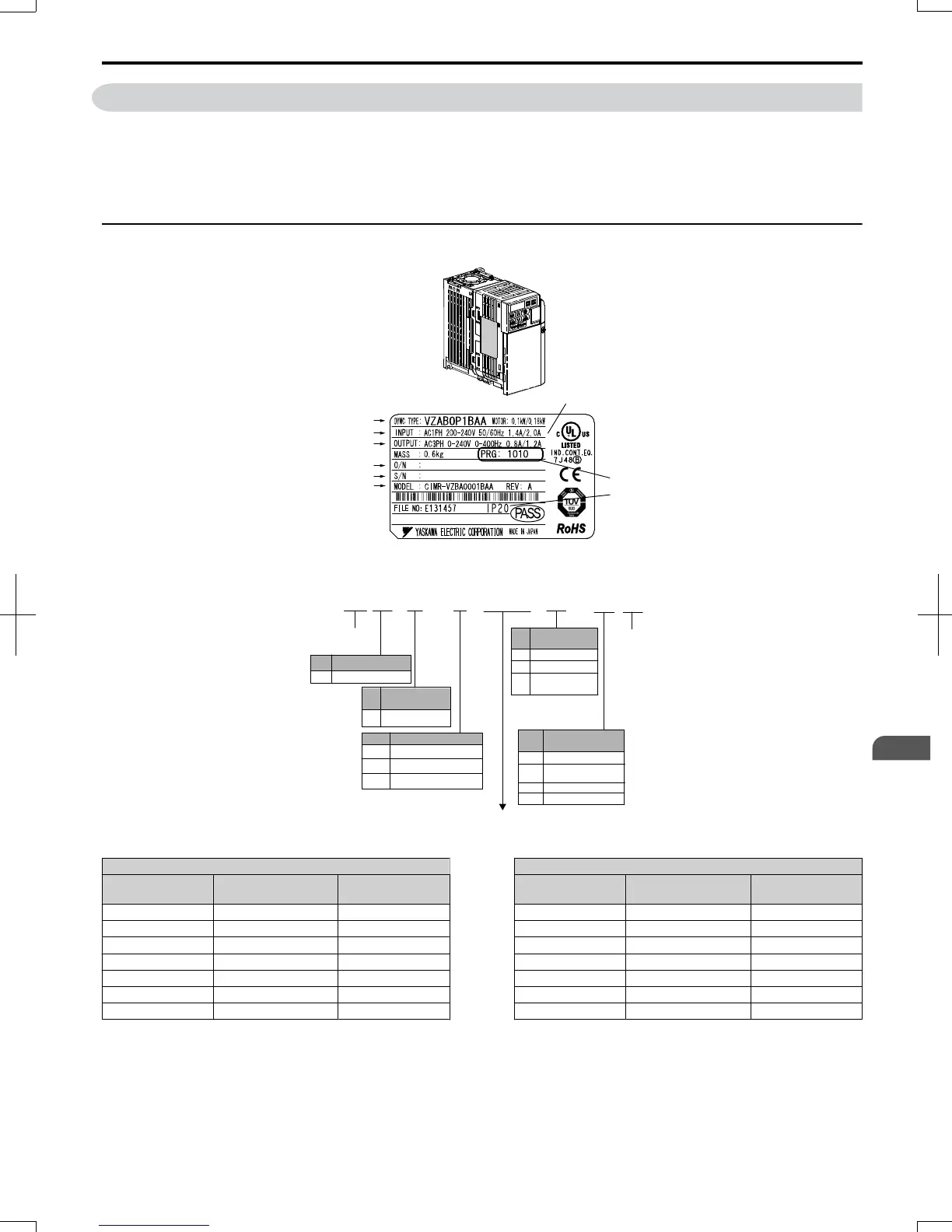

1.2 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
Verify receipt of the correct model by checking the information on the nameplate.
If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Nameplate
AC drive model
Input specifications
Output specifications
Yaskawa Ref. number
Serial number
Lot number
Enclosure type
Software version
Heavy Duty Amps / Normal Duty Amps
Figure 1.1 Nameplate Information
V Z
BA
0P1
B
A A
V1000
Series
No. Type
Z
European Standard
No.
Enclosure
Type
Design
Revision
Order
IP20
F
NEMA 1
B
No. Voltage Class
B
1-phase, 200-240 Vac
No.
Customized
Specifications
A Standard model
3-phase, 200-240 Vac
3-phase, 380-480 Vac
2
4
No.
Environmental
Specification <1>
A
Humidity- and
dust-resistant
Standard
S
N
M
Oil-resistant
Vibration-resistant
E
IP20 with built-in
EMC filter
n
Single-Phase 200 V
Heavy Duty Normal Duty
No.
Max. Motor Capacity
kW
Rated Output
Current A
No.
Max. Motor Capacity
kW
Rated Output
Current A
B0P1 0.1 0.8 B0P1 0.2 1.2
B0P2 0.2 1.6 B0P2 0.4 1.9
B0P4 0.4 3.0 B0P4 0.75 3.3
B0P7 0.75 5.0 B0P7 1.1 6.0
B1P5 1.5 8.0 B1P5 2.2 9.6
B2P2 2.2 11.0 B2P2 3.0 12.0
B4P0 4.0 17.5
1.2 Model Number and Nameplate Check
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
19
1
Receiving
7/16/2008-13:22
