Omron V1000 User Manual

3.5 Protective Covers
Follow the procedure below to remove the protective covers before wiring the drive and to reattach the covers after wiring
is complete.
u
IP20/Open-Chassis Cover Removal and Installation
n
Removing the Protective Covers
1.
Loosen the screw that locks the front cover in place to remove.

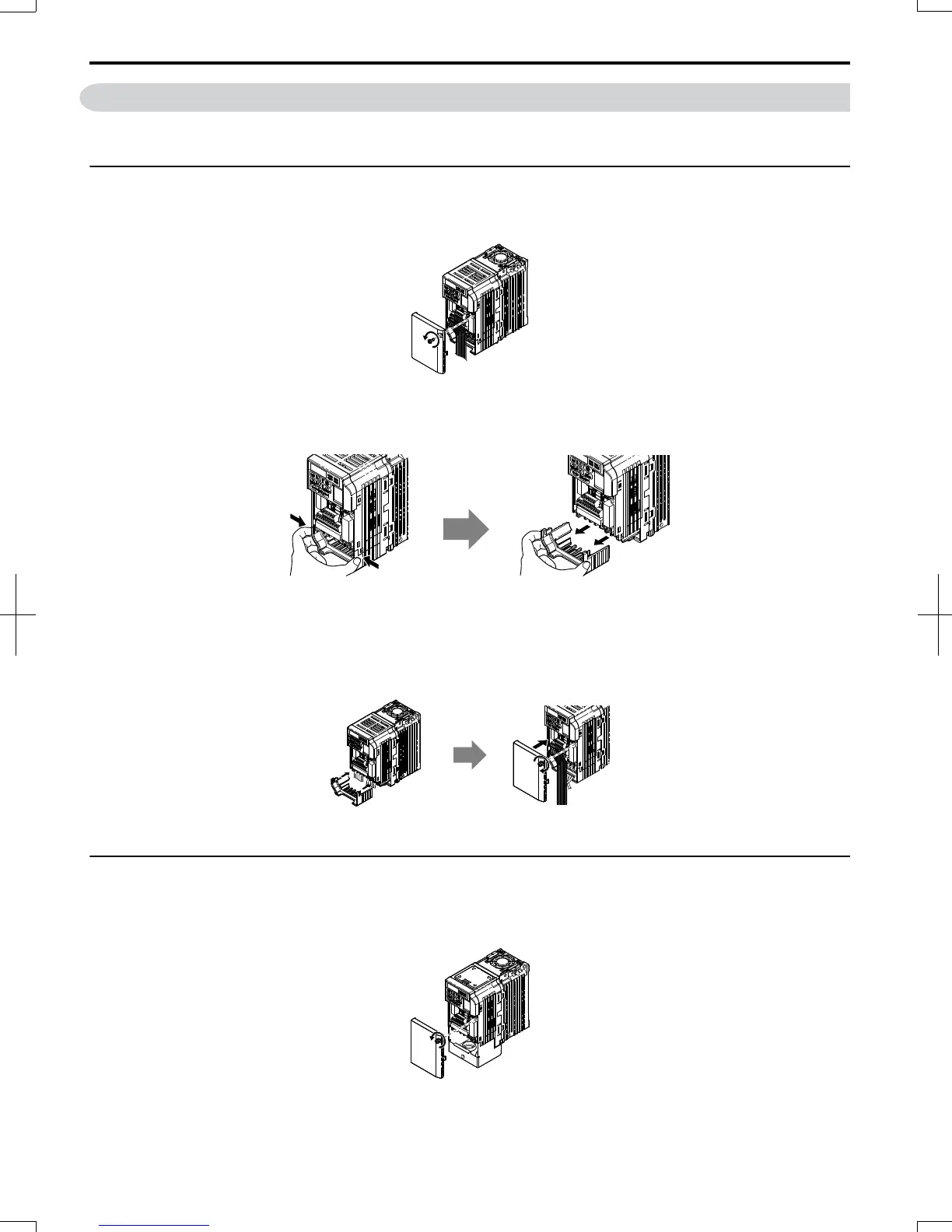

Figure 3.6 Remove the Front Cover on an IP20/Open-Chassis Drive
2.
Apply pressure to the tabs on each side of the terminal cover. Pull the terminal cover away from the drive while
pushing in on the tabs to pull the cover free.
Figure 3.7 Remove the Terminal Cover on an IP20/Open-Chassis Drive
n
Reattaching the Protective Covers
Properly connect all wiring and route power wiring away from control signal wiring. Reattach all protective covers when
wiring is complete. Apply only a small amount of pressure to lock the cover back into place.
Figure 3.8 Reattach the Protective Covers on an IP20/Open-Chassis Drive
u
IP20/NEMA Type 1 Cover Removal and Installation
n
Removing the Protective Covers on an IP20/NEMA Type 1 Design
1.
Loosen the screw on the front cover to remove the front cover.
Figure 3.9
Remove the Front Cover on an IP20/NEMA Type 1 Drive
2.
Loosen the screw on the terminal cover (Figure 3.10, B) to remove the terminal cover and expose the conduit
bracket (Figure 3.10, A).
3.5
Protective Covers
44
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
