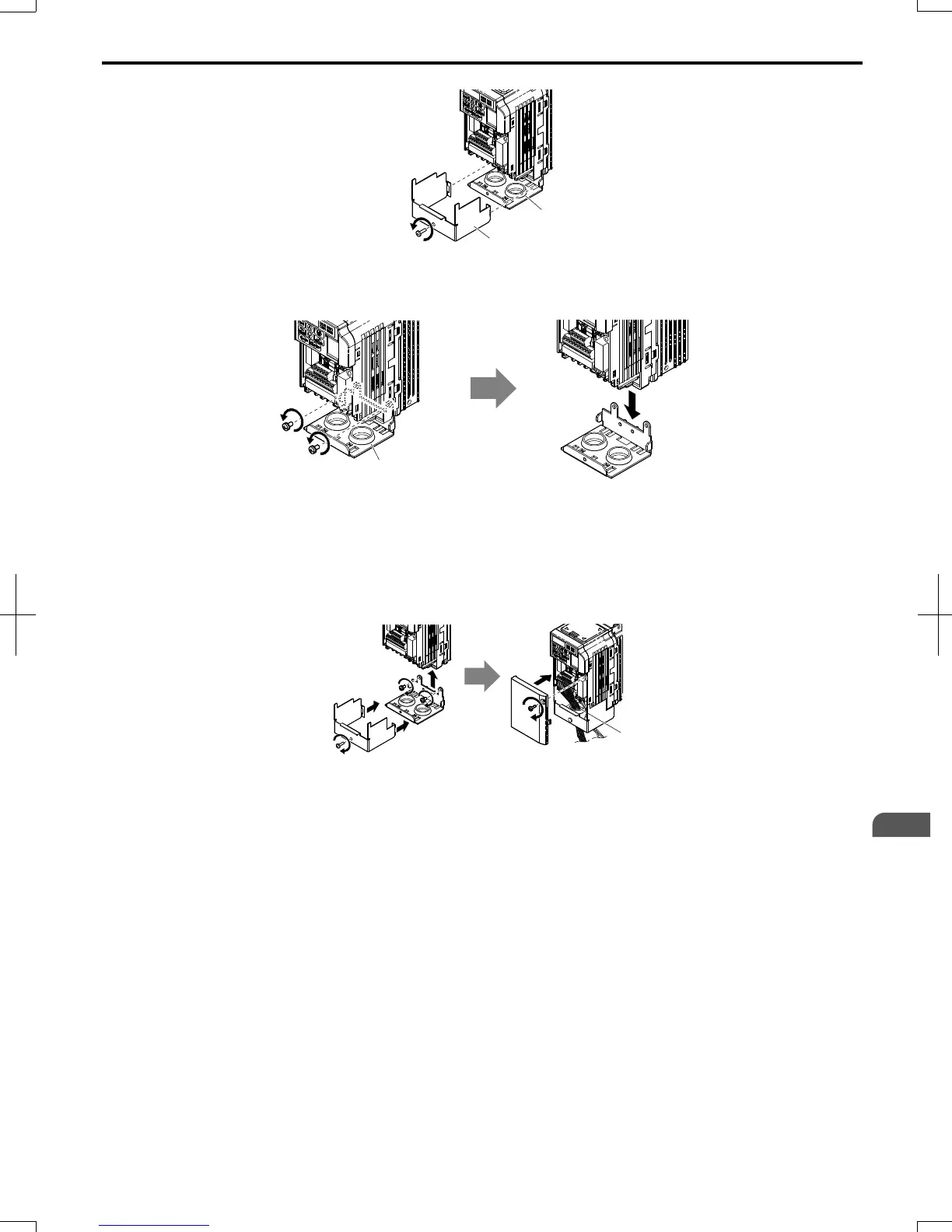

Figure 3.10 Remove the Terminal Cover on an IP20/NEMA Type 1 Drive
3.
Loosen two screws attaching the conduit bracket (Figure 3.11, A) to remove.
A
Figure 3.11 Remove the Conduit Bracket on an IP20/NEMA Type 1 Drive
n
Reattaching the Protective Covers
Pass power wiring and control signal wiring through the exit holes on the bottom of the conduit bracket of the drive. Place
power wiring and control signal wiring in separate conduits. Properly connect all wiring after installing the drive and
connecting other devices. Reattach all protective covers when wiring is complete.
A
A – Pass power wiring and control signal wiring through different exit holes at the bottom of the drive.
Figure 3.12 Reattach the Protective Covers and Conduit Bracket on an IP20/NEMA Type 1 Drive
3.5 Protective Covers
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
45
3
Electrical Installation
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
