NOTICE: When drives with IP20/NEMA Type 1 enclosures are mounted side by side, the top covers of all drives must be removed as
shown in Figure 2.4.

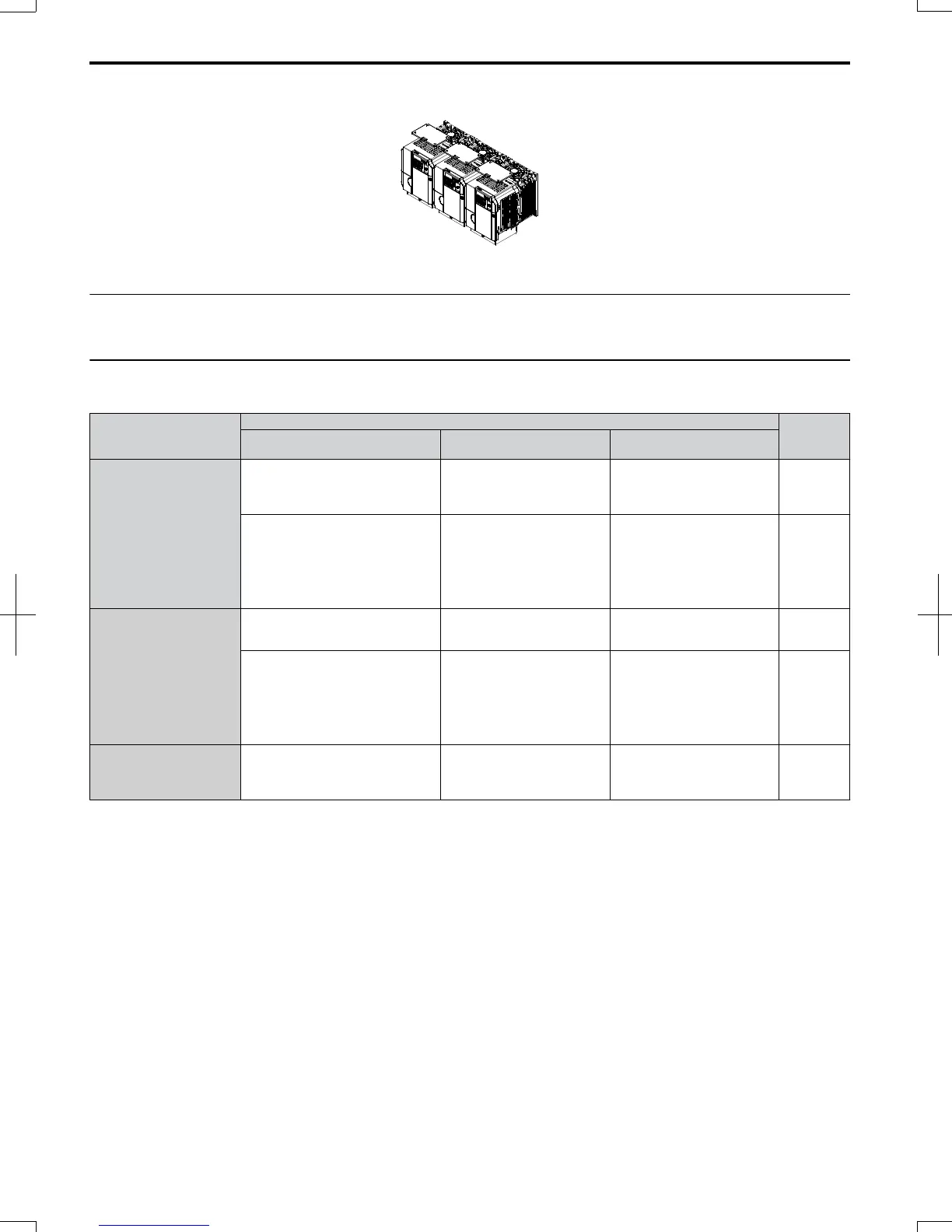

Figure 2.4 IP20/NEMA 1 Side-by-Side Mounting in Enclosure
u
Removing and Attaching the Protective Covers
Refer to Electrical Installation on page 37, for information regarding the removal and reattachment of protective covers.
u
Exterior and Mounting Dimensions
Table 2.2 Drive Models and Types
Protective Design
Drive Model VZA
Page
Single-Phase
200 V Class
Three-Phase
200 V Class
Three-Phase
400 V Class
IP20/Open-Chassis
Without an EMC Filter
B0P1B
B0P2B
B0P4B
20P1B
20P2B
20P4B
20P7B
– 33
B0P7B
B1P5B
B2P2B
B4P0B
21P5B
22P2B
24P0B
40P2B
40P4B
40P7B
41P5B
42P2B
43P0B
44P0B
33
IP20/Open-Chassis
With an EMC Filter
B0P1E
B0P2E
B0P4E
– – 34
B0P7E
B1P5E
B2P2E
–
40P2E
40P4E
40P7E
41P5E
42P2E
43P0E
44P0E
34
IP20/NEMA Type 1
Without an EMC Filter
–
25P5F
27P5F
2011F
2015F
45P5F
47P5F
4011F
4015F
35
Note: Refer to Specifications on page 287 for information on the amount of heat generated by the drive and appropriate cooling methods.
2.2 Mechanical Installation
32
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:22

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
