Omron V1000 User Manual

n
IP20/Open-Chassis Drives

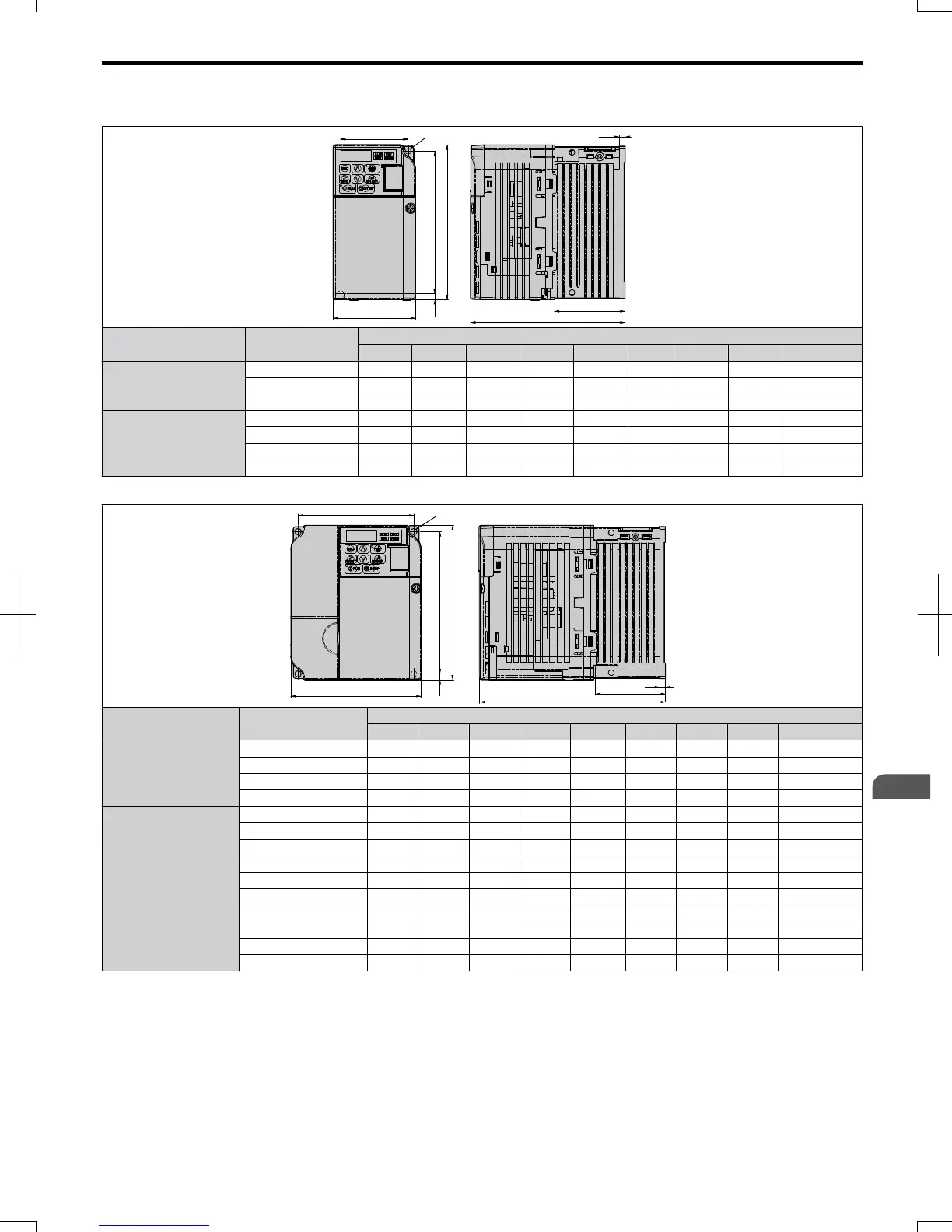

Table 2.3 IP20/Open-Chassis (without an EMC filter)
D1
t1
D
2-M4
W1
H1H2
W
H
Voltage Class
Drive Model
VZA
Dimensions (mm)
W1 H1 W H D t1 H2 D1 Weight (kg)
Single-Phase
200 V Class
B0P1B 56 118 68 128 76 3 5 6.5 0.6
B0P2B 56 118 68 128 76 3 5 6.5 0.6
B0P4B 56 118 68 128 118 5 5 38.5 1.0
Three-Phase
200 V Class
20P1B 56 118 68 128 76 3 5 6.5 0.6
20P2B 56 118 68 128 76 3 5 6.5 0.6
20P4B 56 118 68 128 108 5 5 38.5 0.9
20P7B 56 118 68 128 128 5 5 58.5 1.1
Table 2.4 IP20/Open-Chassis (without an EMC filter)
t1
D
D1
4-M4
H
W1
W
H2 H1
Voltage Class
Drive Model
VZA
Dimensions (mm)
W1 H1 W H D t1 H2 D1 Weight (kg)
Single-Phase
200 V Class
B0P7B 96 118 108 128 137.5 5 5 58 1.7
B1P5B 96 118 108 128 154 5 5 58 1.8
B2P2B 128 118 140 128 163 5 5 65 2.4
B4P0B 158 118 170 128 180 5 5 65 3.0
Three-Phase
200 V Class
21P5B 96 118 108 128 129 5 5 58 1.7
22P2B 96 118 108 128 137.5 5 5 58 1.7
24P0B 128 118 140 128 143 5 5 65 2.4
Three-Phase
400 V Class
40P2B 96 118 108 128 81 5 5 10 1.0
40P4B 96 118 108 128 99 5 5 28 1.2
40P7B 96 118 108 128 137.5 5 5 58 1.7
41P5B 96 118 108 128 154 5 5 58 1.7
42P2B 96 118 108 128 154 5 5 58 1.7
43P0B 96 118 108 128 154 5 5 58 1.7
44P0B 128 118 140 128 143 5 5 65 2.4
2.2 Mechanical Installation
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
33
2
Mechanical Installation
7/16/2008-13:22

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
