Omron V1000 User Manual

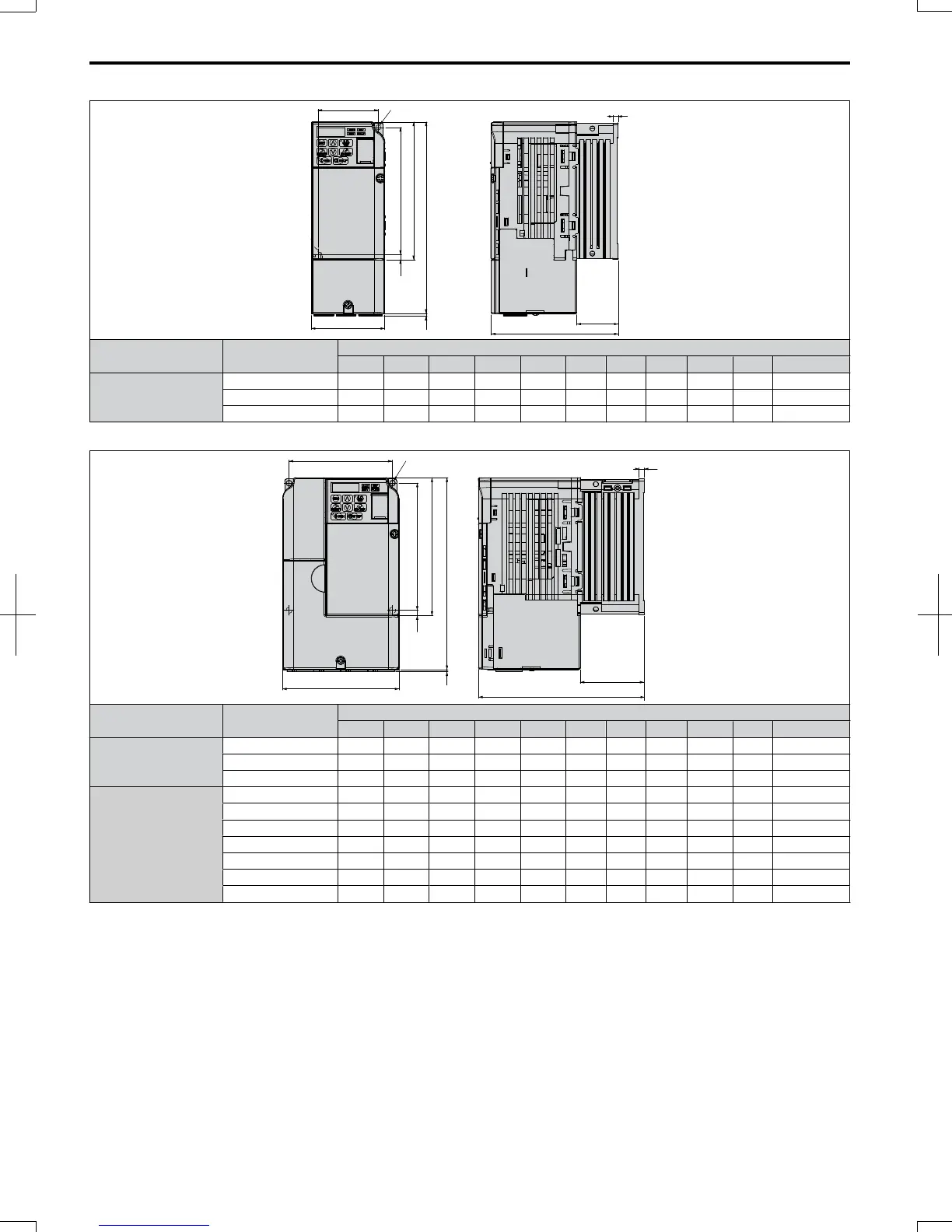

Table 2.5 IP20/Open-Chassis (with EMC filter)
W1
H2H3
W
D
D1
t1
H4
H1
H
2-M4
Voltage Class
Drive Model
VZA
Dimensions (mm)
W W1 H H1 H2 H3 H4 D D1 t1 Weight (kg)
Single-Phase
200 V Class
B0P1E 68 56 178 128 118 5 2 76 6.5 3 0.8
B0P2E 68 56 178 128 118 5 2 76 6.5 3 0.8
B0P4E 68 56 178 128 118 5 2 118 38.5 5 1.2
Table 2.6 IP20/Open-Chassis (with EMC filter)
W1
4-M4
t1
H2
H1
H
W
H3
H4
D1
D
Voltage Class
Drive Model
VZA
Dimensions (mm)
W W1 H H1 H2 H3 H4 D D1 t1 Weight (kg)
Single-Phase
200 V Class
B0P7E 108 96 178 128 118 5 2 137.5 59.6 5 2.0
B1P5E 108 96 178 128 118 5 2 154 64.6 5 2.1
B2P2E 140 128 183 128 118 5 2 163 66.6 5 2.8
Three-Phase
400 V Class
40P2E 108 96 178 128 118 5 2 81 11.6 5 1.3
40P4E 108 96 178 128 118 5 2 99 29.6 5 1.5
40P7E 108 96 178 128 118 5 2 137.5 59.6 5 2.0
41P5E 108 96 178 128 118 5 2 137.5 59.6 5 2.0
42P2E 108 96 178 128 118 5 2 137.5 59.6 5 2.0
43P0E 108 96 178 128 118 5 2 137.5 59.6 5 2.0
44P0E 140 128 183 128 118 5 2 143 66.6 5 2.8
2.2 Mechanical Installation
34
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:22

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
