Omron V1000 User Manual

n
IP20/NEMA Type 1 Drives

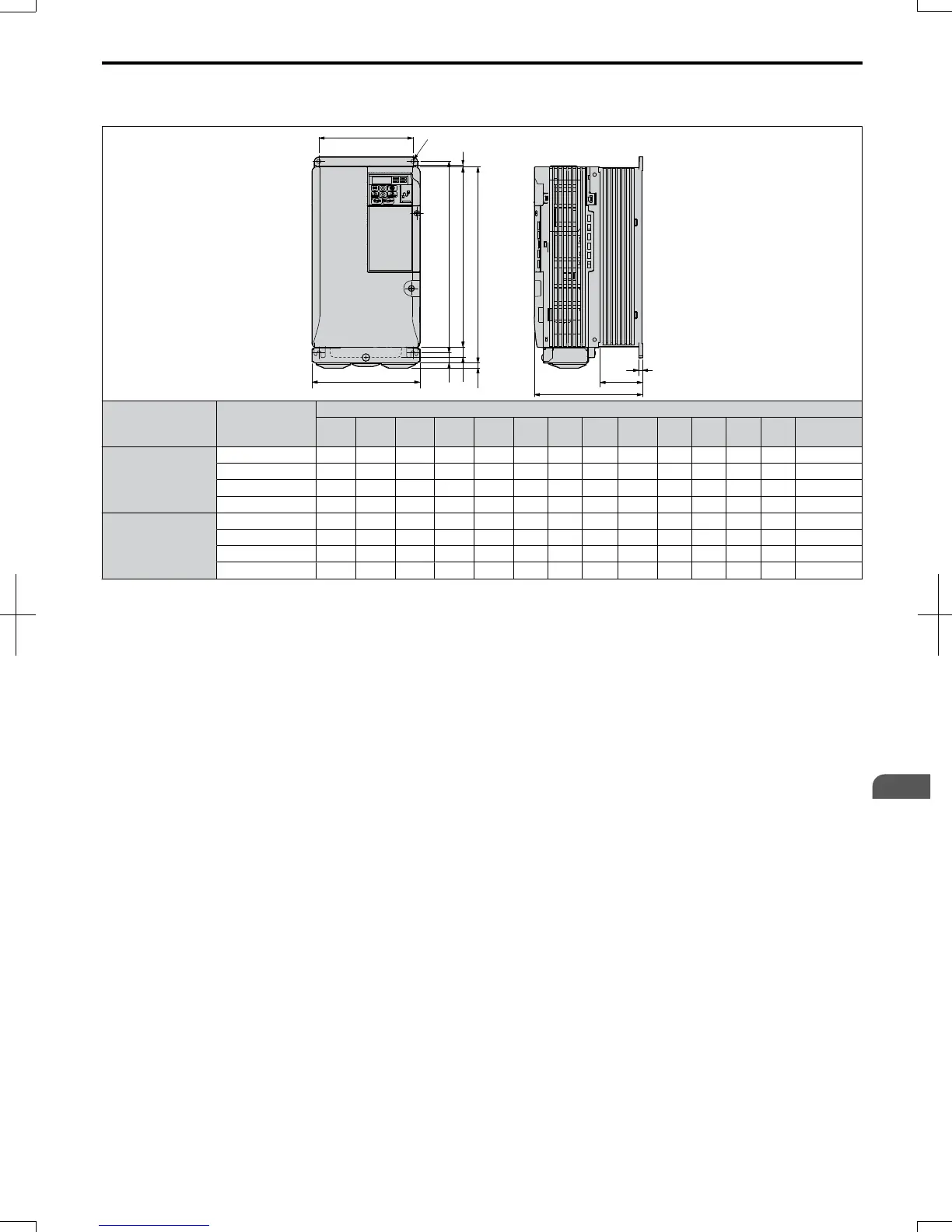

Table 2.7 IP20/NEMA Type 1 (without an EMC filter)
W1
W
H5
H2
H4
H
H3
D1
t1
D
H1
4-d
H6
Voltage Class
Drive Model
VZA
Dimensions (mm)
W1 H2 W H1 D t1 H5 D1 H H4 H3 H6 d
Weight
(kg)
Three-Phase
200 V Class
25P5F 122 248 140 234 140 5 13 55 254 13 6 1.5 M5 3.8
27P5F 122 248 140 234 140 5 13 55 254 13 6 1.5 M5 3.8
2011F 160 284 180 270 163 5 13 75 290 15 6 1.5 M5 5.5
2015F 192 336 220 320 187 5 22 78 350 15 7 1.5 M6 9.2
Three-Phase
400 V Class
45P5F 122 248 140 234 140 5 13 55 254 13 6 1.5 M5 3.8
47P5F 122 248 140 234 140 5 13 55 254 13 6 1.5 M5 3.8
4011F 160 284 180 270 143 5 13 55 290 15 6 1.5 M5 5.2
4015F 160 284 180 270 163 5 13 75 290 13 6 1.5 M5 5.5
2.2 Mechanical Installation
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
35
2
Mechanical Installation
7/16/2008-13:22

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
