3. Enter the type of Auto-Tuning to parameter T1-01.
4. Enter the motor nameplate data.
5. Start the Auto-Tuning process when prompted by the drive.
6. If Auto-Tuning was successfully performed, do a test run without the load and make any necessary parameter
adjustments.
7. If the test run was successful, do a test run with the load connected and make parameter adjustments if necessary.
u

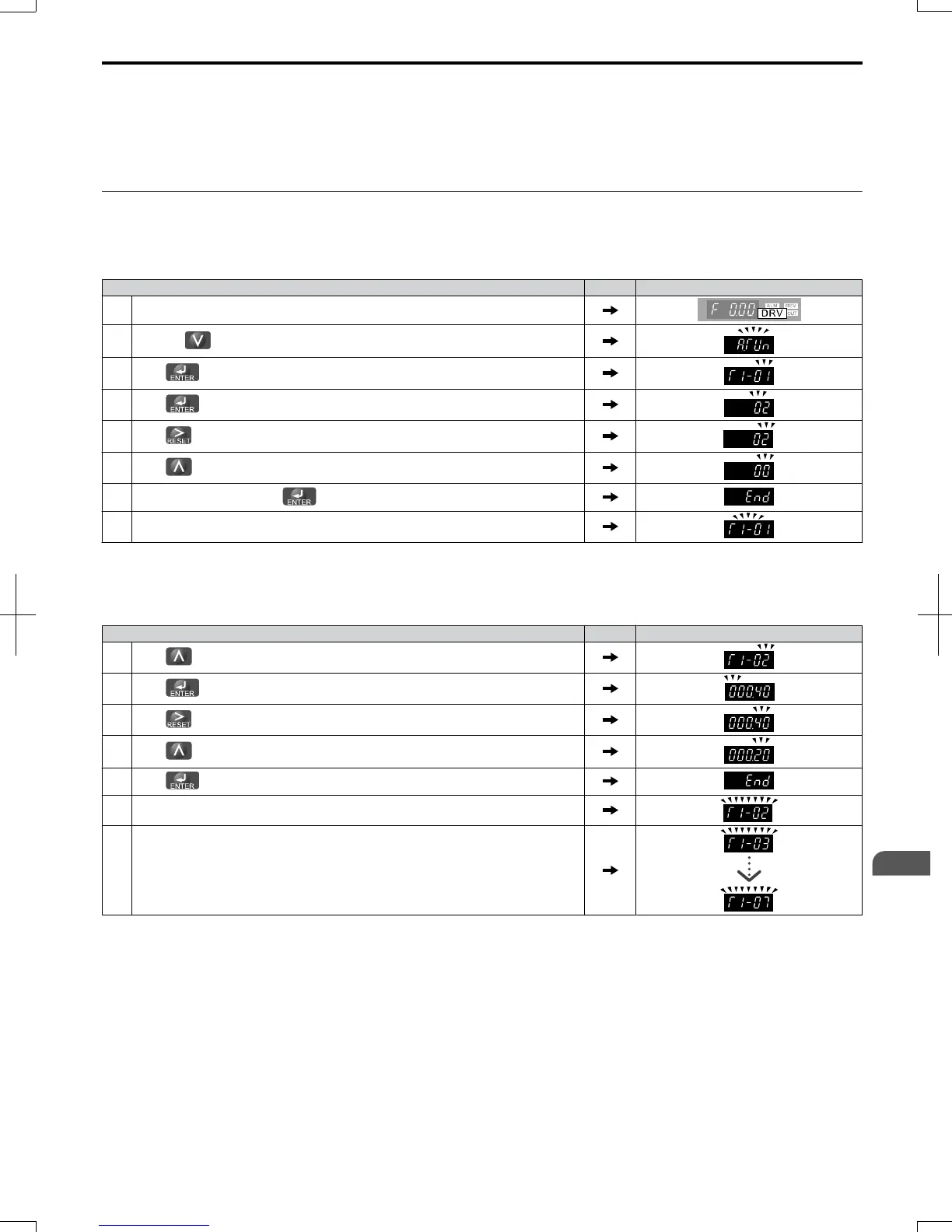

Auto-Tuning Example
The following example illustrates how to perform Rotational Auto-Tuning for Open Loop Vector Control (A1-02 = 2).
n
Set the Selected Type of Auto-Tuning
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press the key until the Auto-Tuning display appears.
3.
Press to begin setting parameters.
4.
Press to display the value for T1-01.
5.
Press to select the digit to edit.
6.
Press and set the drive to perform Rotational Auto-Tuning (00).
7.
Save the setting by pressing .
8. The display automatically returns to the display shown in Step 3.
n
Enter Data from the Motor Nameplate
After selecting the type of Auto-Tuning, enter the data required from the motor nameplate.
Note: These instructions continue from Step 8 in “Set the Selected Type of Auto-Tuning”.
Step Display/Result
1.
Press to access the motor output power parameter T1-02.
2.
Press to view the default setting.
3.
Press to select the digit to edit.
4.
Press and enter the motor power nameplate data in kW.
5.
Press to save the setting.
6. The display automatically returns to the display in Step 1.
7.
Repeat Steps 1 through 5 to set the following parameters:
• T1-03, Motor Rated Voltage
• T1-04, Motor Rated Current
• T1-05, Motor Base Frequency
• T1-06, Number of Motor Poles
• T1-07, Motor Base Frequency
Note: 1. For the details on each setting, Refer to Input Data for Auto-Tuning on page 90.
2. For Stationary Auto-Tuning for Line-to-Line resistance only, set T1-02 and T1-04.
n
Starting Auto-Tuning
WARNING! Sudden Movement Hazard. The drive and motor may start unexpectedly during Auto-Tuning, which could result in death
or serious injury. Ensure the area surrounding the drive motor and load are clear before proceeding with Auto-Tuning.
WARNING! Electrical Shock Hazard. High voltage will be supplied to the motor when Stationary Auto-Tuning is performed even with
the motor stopped, which could result in death or serious injury. Do not touch the motor until Auto-Tuning has been completed.
NOTICE: Rotational Auto-Tuning will not function properly if a holding brake is engaged on the load. Failure to comply could result in
improper operation of the drive. Ensure the motor can freely spin before beginning Auto-Tuning.
NOTICE: Never perform Rotational Auto-Tuning for a motor connected to a load. Failure to comply could result in improper drive
operation. If Rotational Auto-Tuning is performed for a motor coupled to a load, the motor parameters will be inaccurate and the motor
may exhibit abnormal operation. Disconnect or decouple the motor from the load.
4.7
Auto-Tuning
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
89
4
Start-Up Programming
& Operation
