Omron V1000 User Manual

Output
frequency
L4-04
Frequency
detection 3
ON
OFF
L4-03

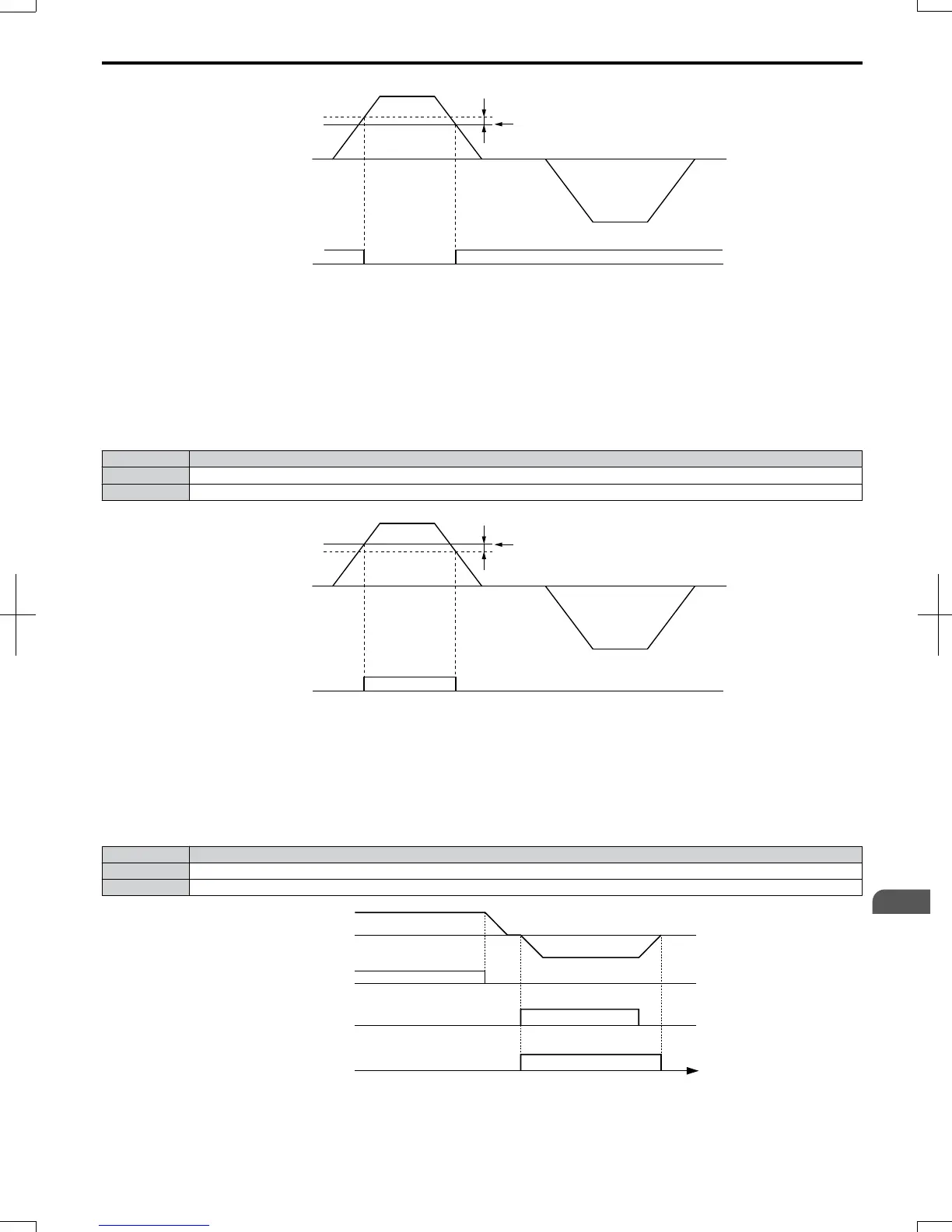

Figure 5.61 Frequency Detection 3 Example with Positive L3-04 Value
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 197 for details on setting the
detection width.
Setting 16: Frequency Detection 4
Output closes whenever the output frequency is equal to or above the detection level set in L4-03. The output opens when
the output frequency falls below L4-03 minus the hysteresis set in L4-04. As the detection level L4-03 is a signed value,
the detection works in the specified direction only.
Status Description
Open Output frequency is below L4-03 minus L4-04 or has not exceeded L4-03 yet.
Closed Output frequency exceeded L4-03.
Output
frequency
L4-04
Frequency
Detection 4
ON
OFF
L4-03
Figure 5.62 Frequency Detection 4 Example with Positive L3-04 Value
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 197 for details on setting the
detection width.
Setting 1A: During Reverse
The During Reverse digital output will close whenever the drive is turning the motor in the reverse direction.
Status Description
Open Motor is driven in the forward direction or stopped.
Closed Motor is driven in reverse.
Output frequency
time
FWD Run command
REV Run command
During Reverse
OFF
ON
Figure 5.63 Reverse Direction Output Example Time Chart
5.7 H: Terminal Functions
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
175
5
Parameter Details
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
