B
A
A – Line up the tab with the mounting hole. B – Line up the tab with the mounting hole.

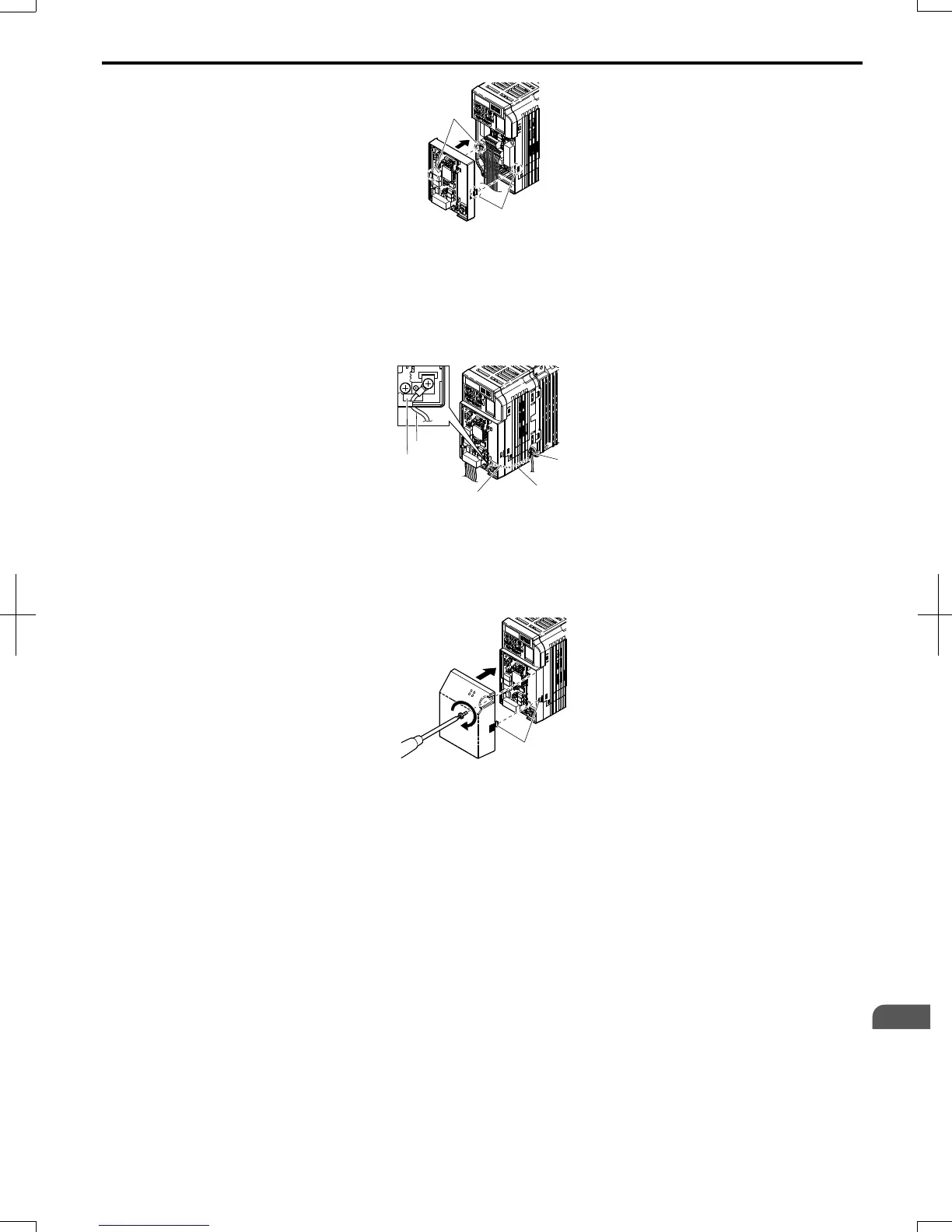

Figure 8.14 Attach Option Card
Note: Gently pack wires to fit behind the left and right side of the cover into the provided recess.
5.
Connect the lead from the drive ground terminal to the same terminal as the option card lead.
The option card lead should exit through the holes provided on the underside of the drive as it gets routed passed
the ground terminal.
C
A
E
D
B
A – Drive ground terminal
B – Route the lead wire on the inside of the lower
cover.
C – Ground lead
D – Ground lead through-hole
E – Ground lead
Figure 8.15 Lead Wire Connection
6.
Reattach the option card cover.
A
A – Align the tab with the mounting hole.
Figure 8.16 Reattach Cover
8.6 Connecting an Option Card
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
285
8
Peripheral Devices & Options
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
