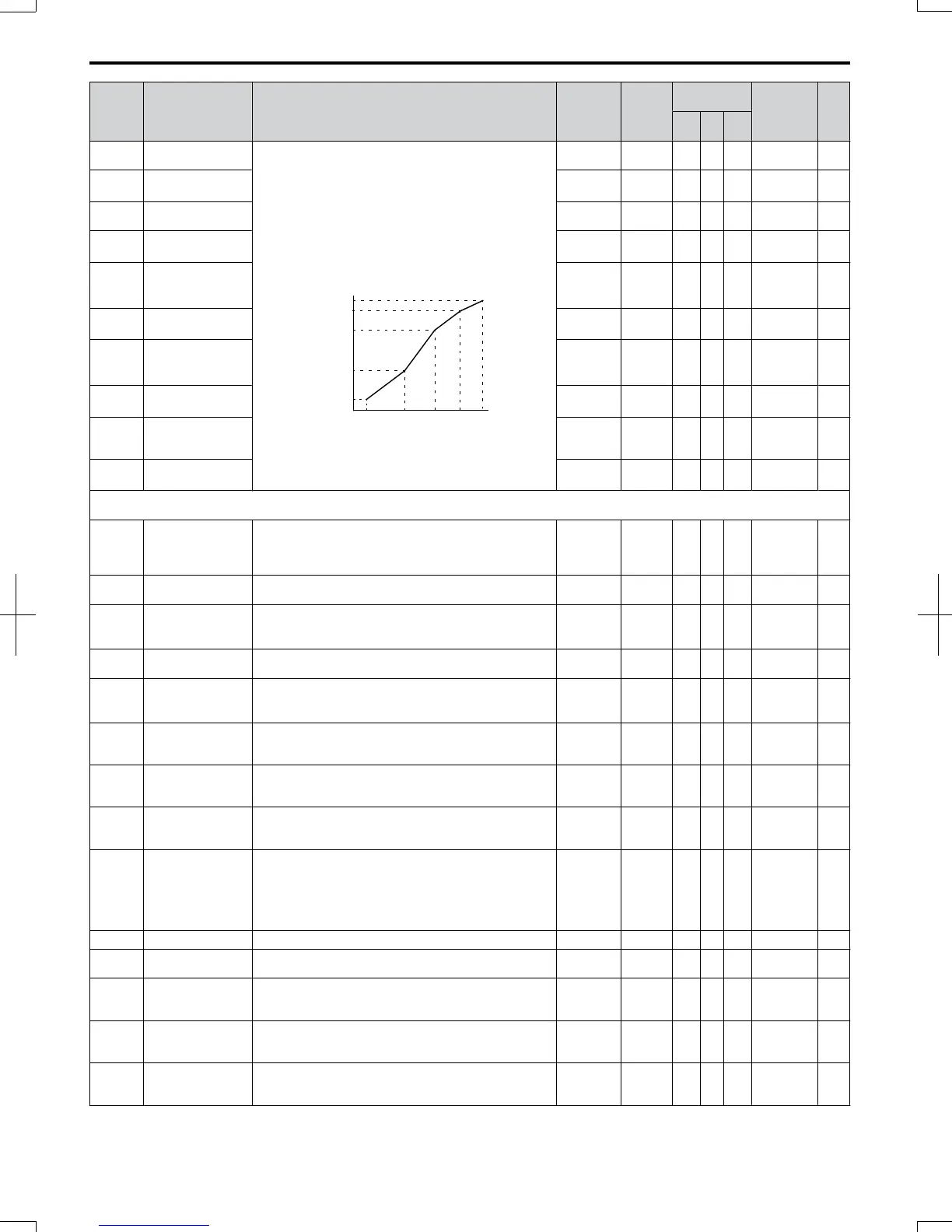

No. Name Description Range Def.
Control
Mode
Addr. Hex Pg.
V/f
OL
V
PM
E3-04
Motor 2 Max Output
Frequency
These parameters set the V/f pattern for motor 2.
To set linear V/f characteristics, set the same values for
E3-07 and E3-09. In this case, the setting for E3-08 will be
disregarded. Ensure that the four frequencies are set
according to these rules or oPE10 fault will occur:
E3-04 ≥ E3-06 > E3-07 > E3-09
E3-09 E3-07 E3-06 E3-11 E3-04
E3-05
E3-12
E3-13
E3-08
E3-10
VACrms Out (V)
Frequency (Hz)
40.0 to
400.0
50 Hz A A 31A 149
E3-05
<24>
Motor 2 Max
Voltage
0.0 to 255.0 200.0 V A A 31B 149
E3-06
Motor 2 Base
Frequency
0.0 to
E3-04
50 Hz A A 31C 149
E3-07
Motor 2 Mid Output
Freq.
0.0 to
E3-04
2.5 Hz
<53>
A A 31D 149
E3-08
<24>
Motor 2 Mid Output
Freq. Voltage
0.0 to 255.0
16.0 V
<12>
<53>
A A 31E 149
E3-09
Motor 2 Min.
Output Freq.
0.0 to
E3-04
1.3 Hz
<53>
A A 31F 149
E3-10
<24>
Motor 2 Min.
Output Freq.
Voltage
0.0 to 255.0
12.0 V
<12>
<53>
A A 320 149
E3-11
<26>
Motor 2 Mid Output
Frequency 2
0.0 to
E3-04
0.0 Hz A A 345 149
E3-12
<24>
<52>
Motor 2 Mid Output
Frequency Voltage
2
0.0 to 255.0
<24>
0.0 Vac A A 346 149
E3-13
<24>
Motor 2 Base
Voltage
0.0 to 255.0
<24>
0.0 Vac A S 347 149
E4: Motor 2 Parameters
Use E4 parameters to control a second motor operating on the same drive.
E4-01
Motor 2 Rated
Current
Sets the motor 2 nameplate full load current in amperes (A).
This value is automatically set during Auto-Tuning.
10 to 200%
of drive
rated
current
<57>
A A 321 150
E4-02 Motor 2 Rated Slip
Sets the motor 2 rated slip in Hz. Automatically set during
Auto-Tuning.
0.00 to
20.00
<57>
A A 322 150
E4-03
Motor 2 Rated No-
Load Current
Sets the magnetizing current of motor 2 in Ampere.
Automatically set during Rotational Auto-Tuning.
0 to less
than E4-01
<27>
<57>
A A 323 150
E4-04
Motor 2 Motor
Poles
Sets the number of poles of motor 2. This value is
automatically set during Auto-Tuning.
2 to 48 4 poles A A 324 150
E4-05
Motor 2 Line-to-
Line Resistance
Sets the phase-to-phase resistance of motor 2 in ohms.
Automatically during Auto-Tuning.
0.000 to
65.000
<37>
<57>
A A 325 151
E4-06
Motor 2 Leakage
Inductance
Sets the voltage drop due to motor leakage inductance as a
percentage of rated voltage of motor 2. Automatically set
during Auto-Tuning.
0.0 to 40.0
<57>
A A 326 151
E4-07
Motor 2 Motor Iron-
Core Saturation
Coefficient 1
Set to the motor iron saturation coefficient at 50% of
magnetic flux. Automatically set during Rotational
Auto-Tuning.
0.00 to 0.50 0.50 A 343 151
E4-08
Motor 2 Motor Iron-
Core Saturation
Coefficient 2
Set to the motor iron saturation coefficient at 75% of
magnetic flux. This value is automatically set during
Rotational Auto-Tuning.
Setting for
E4-07 to
0.75
0.75 A 344 151
E4-09
Motor 2 Mechanical
Loss
Sets the motor mechanical loss as a percentage of motor
rated power (kW) capacity.
Adjust in the following circumstances:
When there is a large amount of torque loss due to motor
bearing friction.
When there is a large amount of torque loss.
0.00 to 10.0 0.0 A 33F 151
E4-10 Motor 2 Iron Loss Sets the motor iron loss in watts. 0 to 65535
<57>
Α 340 151
E4-11
Motor 2 Rated
Capacity
Sets the motor rated capacity in kW. Automatically set
during Auto-Tuning.
0.00 to
650.00
<12>
A A 327 151
E4-12
Motor 2 Iron-Core
Saturation
Coefficient 3
Set to the motor iron saturation coefficient at 130% of
magnetic flux. Automatically set during Rotational
Auto-Tuning.
1.30 to 5.00 1.30 A 342 151
E4-14
<22>
Motor 2 Slip
Compensation Gain
Sets the slip compensation gain for motor 2. The function
is the same as C3-01 for motor 1. Refer to C3-01: Slip
Compensation Gain on page 127.
0.0 to 2.5
0.0
<53>
A A 341 152
E4-15
Torque
Compensation Gain
- Motor 2
Sets the torque compensation gain for motor 2. The function
is the same as C4-01 for motor 1. Refer to C4-01: Torque
Compensation Gain on page 128.
1.00 to 2.50 1.00 A A 341 152
B.2 Parameter Table
310
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23
