Oracle SuperCluster T5-8 User Manual

Two-Rack Cabling

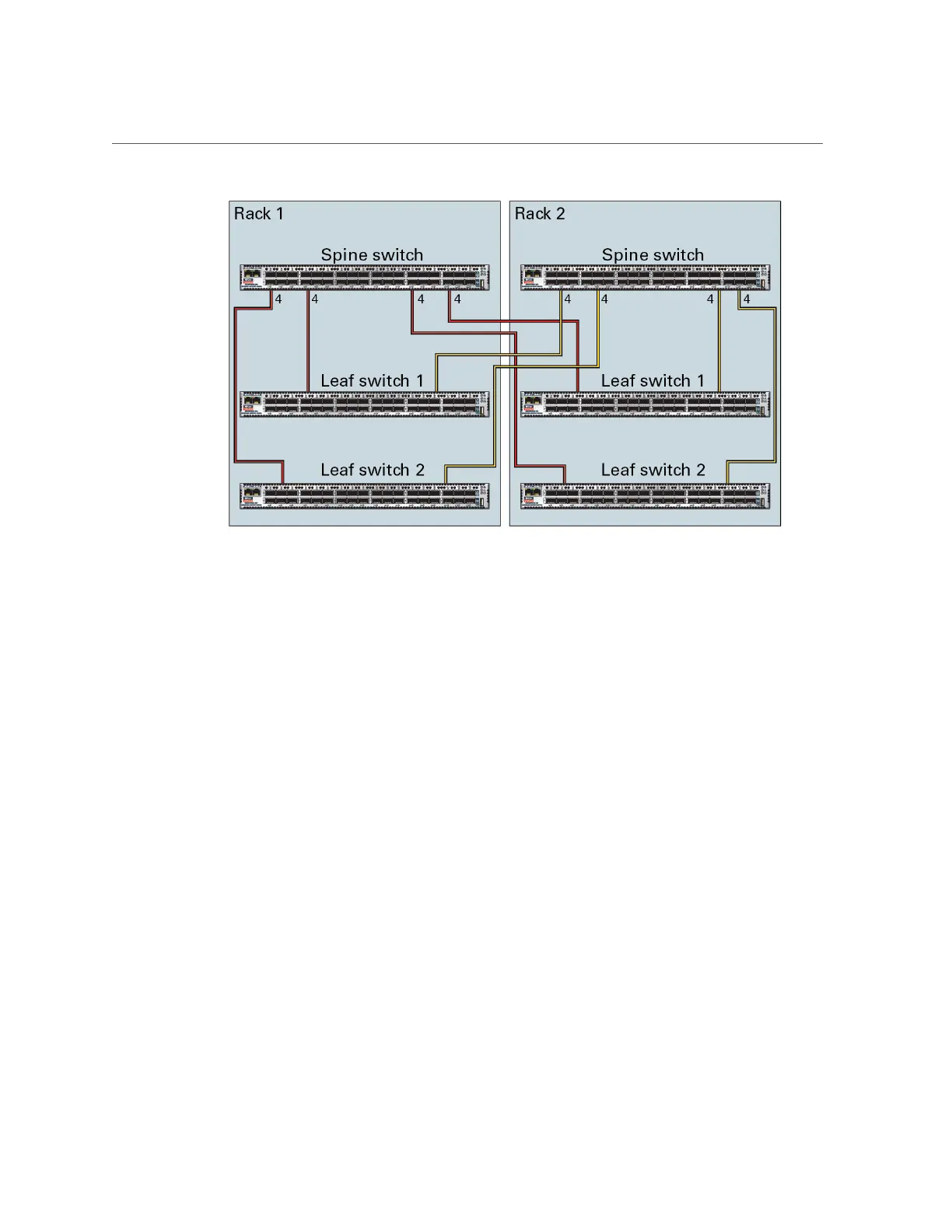

As shown in the preceding graphic, each leaf switch in rack 1 connects to the following
switches:
■
Four connections to its internal spine switch
■
Four connections to the spine switch in rack 2
The spine switch in rack 1 connects to the following switches:
■
Eight connections to both internal leaf switches
■
Eight connections to both leaf switches in rack 2
In Oracle SuperCluster T5-8, the spine and leaf switches are installed in the following locations:
■
Spine switch in U1
■
Two leaf switches in U26 and U32
Two-Rack Cabling
The following table shows the cable connections for the first spine switch (R1-U1) when
cabling two full racks together.
Connecting Multiple Oracle SuperCluster T5-8 Systems 263
