Understanding the Hardware Components and Connections

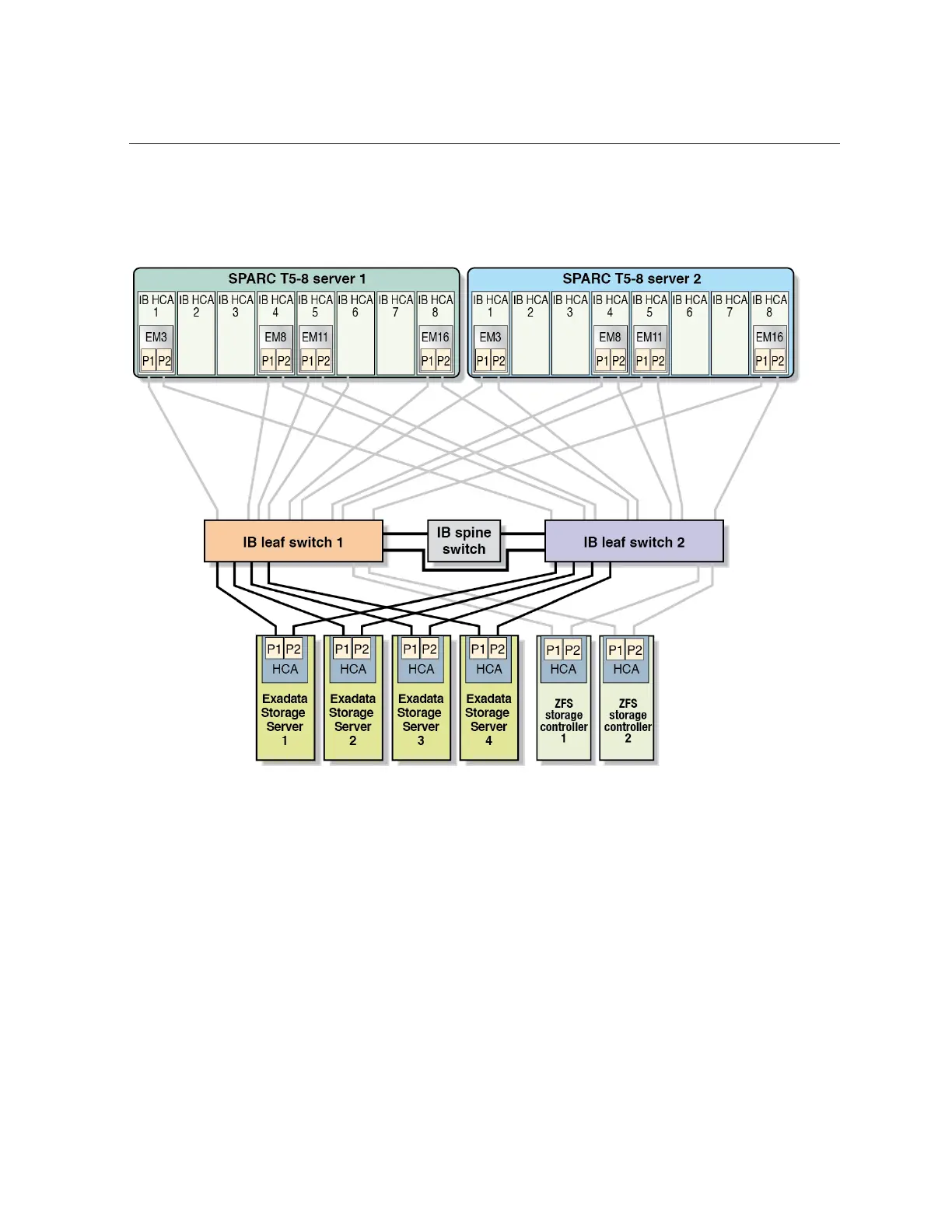

FIGURE 11
InfiniBand Connections for Exadata Storage Servers, Half Rack
Oracle ILOM Management Network Physical Connections (Exadata
Storage Servers)
Each Exadata Storage Server connects to the Oracle ILOM management network through a
single Oracle ILOM network port (NET MGT port) at the rear of each Exadata Storage Server.
One IP address is required for Oracle ILOM management for each Exadata Storage Server.
