Understanding the Hardware Components and Connections

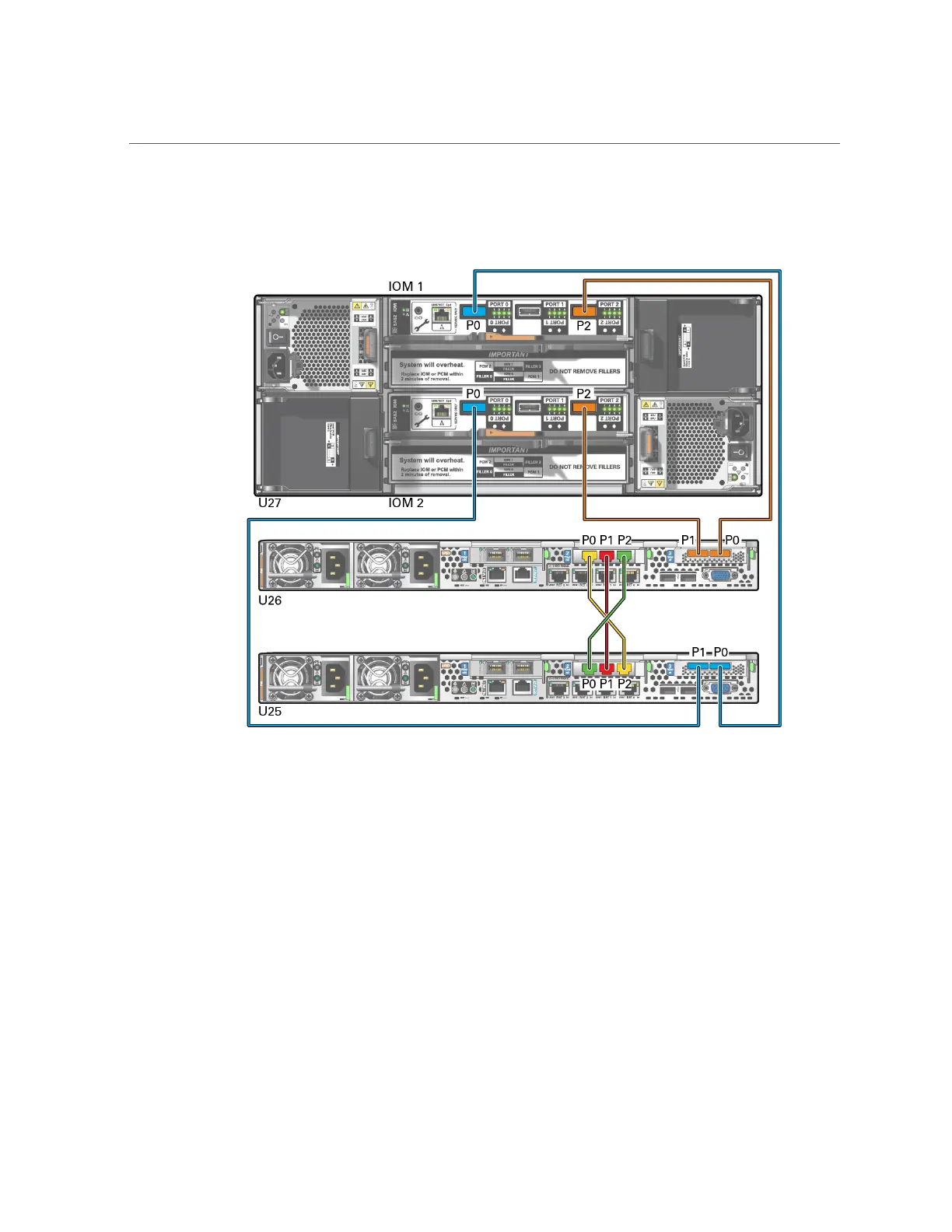

FIGURE 15
SAS Connections for the Oracle ZFS Storage ZS3-ES Storage Appliance
Cluster Physical Connections (ZFS Storage Appliance)
Each ZFS storage controller contains a single cluster card. The cluster cards in the storage
controllers are cabled together as shown in the following figure. This allows a heartbeat signal
to pass between the storage controllers to determine if both storage controllers are up and
running.
